120V Cast Iron Circulator Pump

Taco

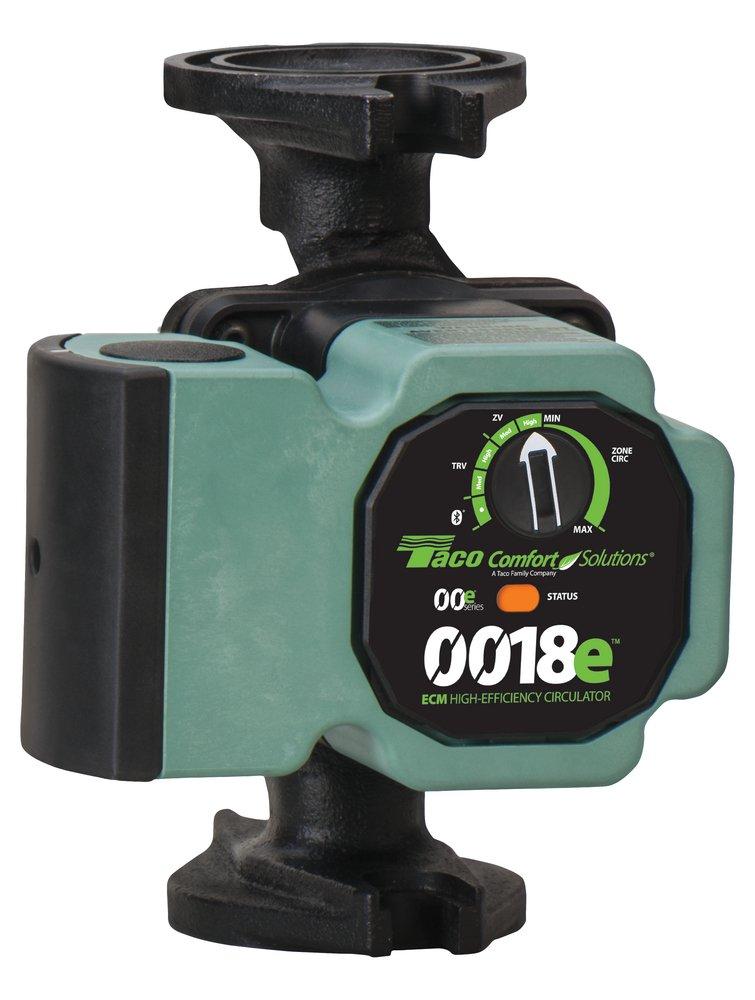

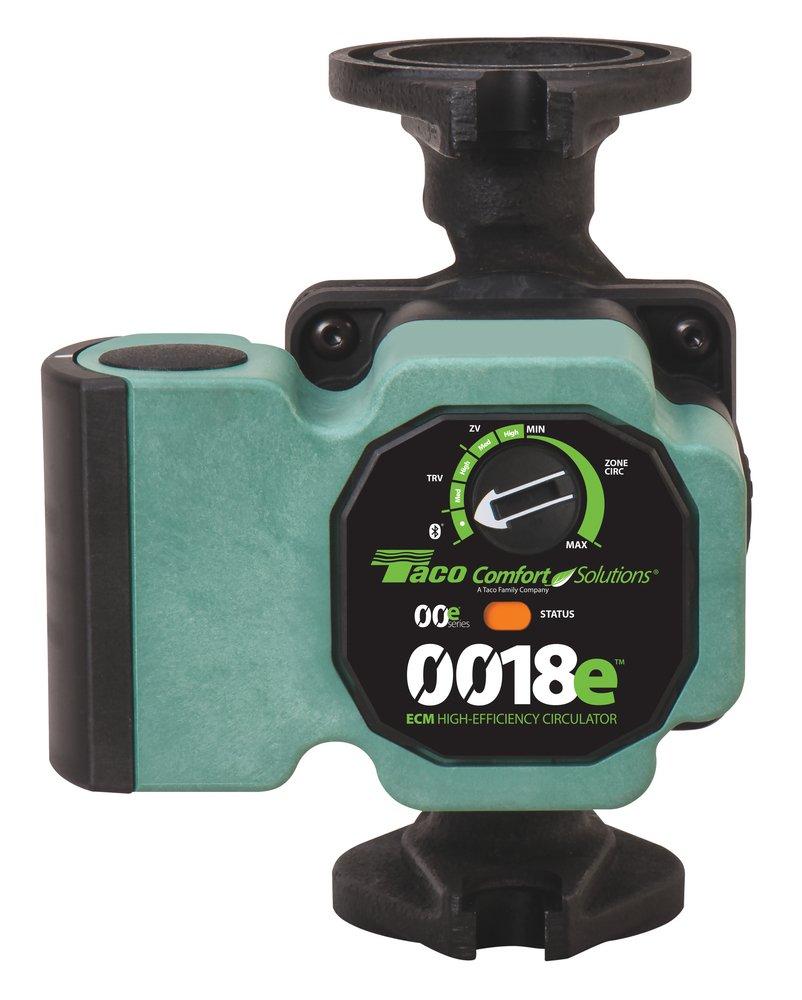

0018e™ Series 120V Cast Iron Circulator Pump

Brand image
Taco

0018e™ Series 120V Cast Iron Circulator Pump

  • Part #T0018E2F2
  • Item #7937134
  • Manufacturer Part #0018-E-2F2
4.1 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • 0018e mobile app provides real-time performance feedback, control and reporting
  • Replaces all 3-speed hydronic circulators in its class
  • Variable speed, ECM high-efficiency, wet rotor circulator ideal for closed loop hydronic systems
  • Dual electrical knockouts, 6" stranded wire leads included for easy wiring
  • High-efficiency ECM motor uses up to 85% less electricity
  • Flange nut-grabbers for easier fit-up
  • SureStart® automatic unblocking and air purging mode
  • BIO Barrier® protects pump from system contaminants
  • Integral flow check (IFC®) included
  • Double insulated - no ground wire required

Specifications

AMP:
0.54
ANSI:
ANSI 372, ANSI 61
Application:
Hot Water Recirculation
Blower Type:
Variable Speed
Collection:
0018e™ Series
Color Finish Category:
Greens
Color Finish Name:
Green
Connection Type:
Flanged
Depth:
6 in
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
Energy Star Compliant:
No
FM Approved:
No
Flow Rate:
16 gpm
Height:
6-3/8 in
IAPMO Listed -:
No
Material:
Cast Iron, Stainless Steel, Rubber, Composite, Carbon, Ceramic
Material Type:
EPDM
Maximum Feet of Head:
18
Maximum Temperature:
230
Minimum Temperature:
36
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Phase:
Single Phase
Power Source:
Electric
Pressure - High:
125
Product Type:
Circulator
Pump Body Material:
Cast Iron
Pump Phase:
1
RPM:
4830
Smart Home Enabled:
Yes
UL Listed:
Yes
Volts:
120V
Watts:
44 W
Weight:
5.8 lb
Width:
5-1/8 in
Wireless Communication - FEI:
Bluetooth
