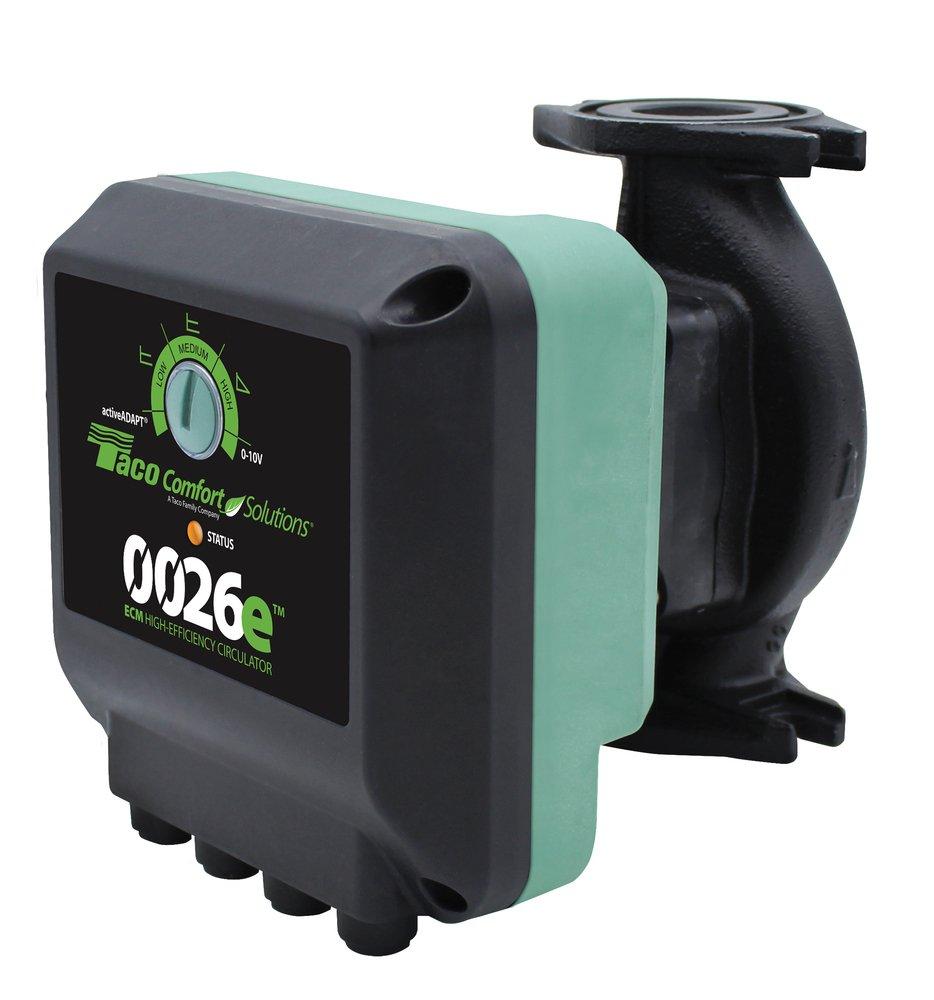

115/208/230V Cast Iron Circulator Pump
Purchase history
Taco
115/208/230V Cast Iron Circulator Pump
VM2644-HD1-RC2A00
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- 5 easy dial settings to match system requirements - activeADAPT®, low, medium, high or 0-10V DC analog or PWM digital signal external input
- BIO Barrier® protects the pump from system contaminants
- SureStart® automatic unblocking and air purging mode
- Replaces all single speed and 3-speed circulators in its class
- Multi-color LED: power on, mode setting and error code diagnostics
- Use with a taco ZVC zone valve control or SR switching relay for ON/OFF operation
- Nut-grabber feature on flanges for easier fit up
- Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
- Rotatable control cover to simplify installation
- Whisper quiet operation
Documents
Specifications
- AMP:
- 1
- Connection Type:
- Flanged
- Flow Rate:
- 44 gpm
- Maximum Feet of Head:
- 26
- Maximum Temperature:
- 230
- Minimum Temperature:
- 14
- Pressure - Maximum:
- 150 psi
- Product Type:
- Circulator Pump
- Pump Body Material:
- Cast Iron
- Pump Phase:
- 1
- RPM:
- 3800
- Volts:
- 115/208/230V
- Watts:
- 125 W
- Weight:
- 10.5 lb
