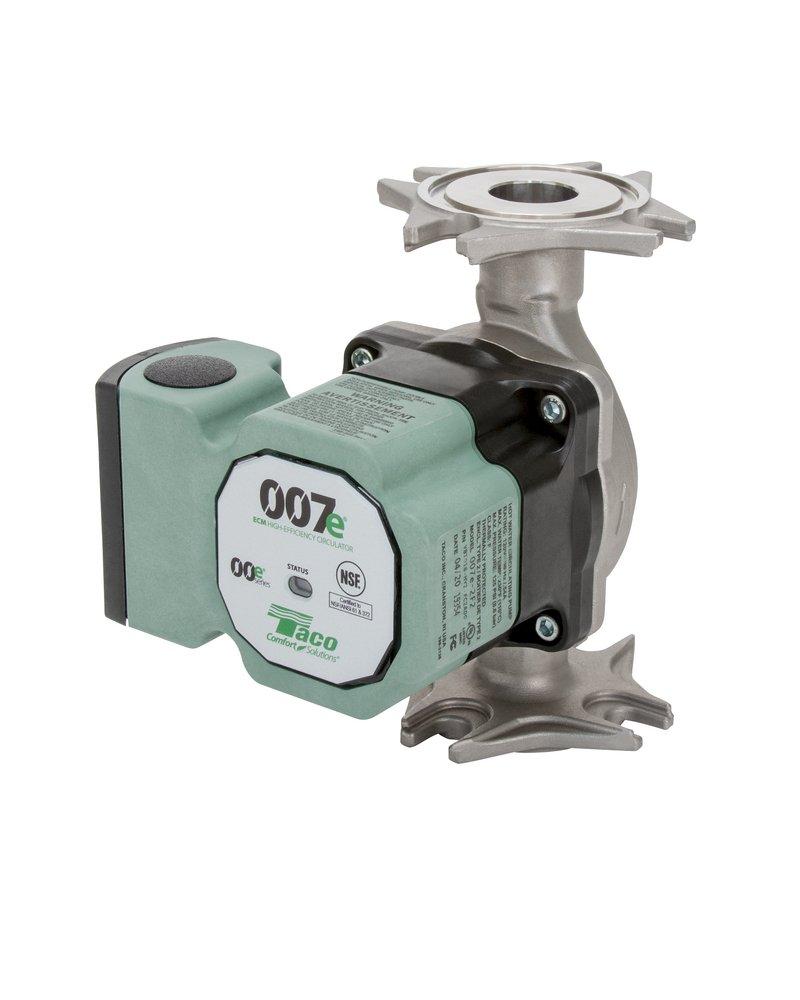

120V Stainless Steel Circulator Pump
You last purchased this on
Taco
120V Stainless Steel Circulator Pump
Purchase history
Taco
120V Stainless Steel Circulator Pump
VB1016-DY2-4S2W00
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- 10’ shut-off head, 16 gpm max flow
- ECM performance equivalent to the legendary 007 circulator
- High-efficiency ECM motor uses up to 85% less electricity
- SureStart® automatic unblocking and air purging mode
- Green mode active system monitoring and automatic power optimization
- Nut-grabber feature on flanges for easier fit-up
- Dual electrical knockouts, 6” stranded wire leads included for easy wiring
- Integral flow check (IFC®) included
- Double insulated - No ground wire required
- Whisper quiet operation
Specifications
- AMP:
- 0.54
- ANSI:
- ANSI 372, ANSI 61
- Connection Type:
- Flanged
- Flow Rate:
- 16 gpm
- Maximum Feet of Head:
- 10
- Maximum Temperature:
- 230
- Minimum Temperature:
- 36
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Product Type:
- Circulator Pump
- Pump Body Material:
- Stainless Steel
- Pump Phase:
- 1
- RPM:
- 4830
- Volts:
- 120V
- Watts:
- 44 W
- Weight:
- 5.5 lb
