DWV Pipe Test Plug
Test-Tite®

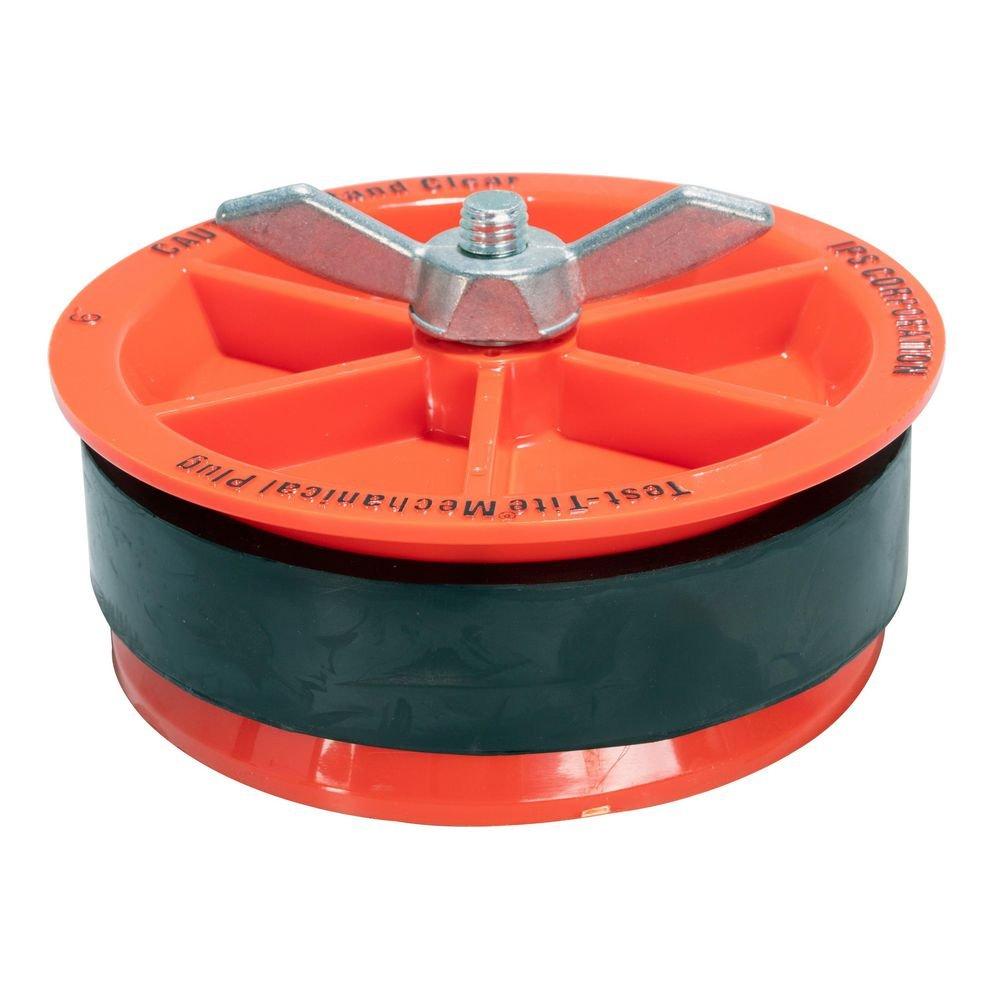

Twist-Tite DWV Pipe Test Plug
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 5
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Test-Tite®
Twist-Tite
DWV Pipe Test Plug
83598
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- ABS mechanical test plug for use with standard-sized DWV (drain, waste, and vent) piping
- Designed to test or temporarily block pipelines (for end-of-pipe use only)
- Oversized wing nut and wrench pad make installation and removal easy and intuitive
- Neoprene gasket creates an airtight seal around the outside of the pipe
- Corrosion-resistant construction (ABS plates, steel-plated screw, and zinc nut)
Documents
Specifications
- ANSI:
- A112.18.2
- ASME:
- ASME A112.18.2
- Application:
- DWV Pipe
- CARB OTC LEED Compliant:
- No
- Collection:
- Twist-Tite
- Color Finish Category:
- Blacks
- Color Finish Name:
- Black, Orange
- Diameter:
- 8
- FM Approved:
- No
- Fits Pipe Size:
- 8 in
- Fitting Size 1:
- 8
- Fitting Sizes:
- 8 in
- GSA Approved:
- No
- IAPMO Listed:
- No
- Material:
- Natural Rubber, Zinc, Steel
- Material Type:
- ABS
- NSF Certified:
- No
- Number of Tools Included:
- 1
- Origin:
- Domestic
- Pipe Capacity:
- 8 in
- Pressure - Maximum:
- 10 psi
- Proposition 65:
- WARNING: Cancer - www.P65Warnings.ca.gov
- Range (in):
- 7.76 in - 8.03 in
- Schedule Class:
- 40
- Size:
- 8 in
- Tool Type:
- Test Plug
- UL Listed:
- No
- UPC:
- 012181835982
- Weight:
- 2.35
