10 in. Volumetric Weir with Level
Thel-mar
10 in. Volumetric Weir with Level
Package Quantity Info:
Each: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Thel-mar
10 in. Volumetric Weir with Level
10WEIR
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details

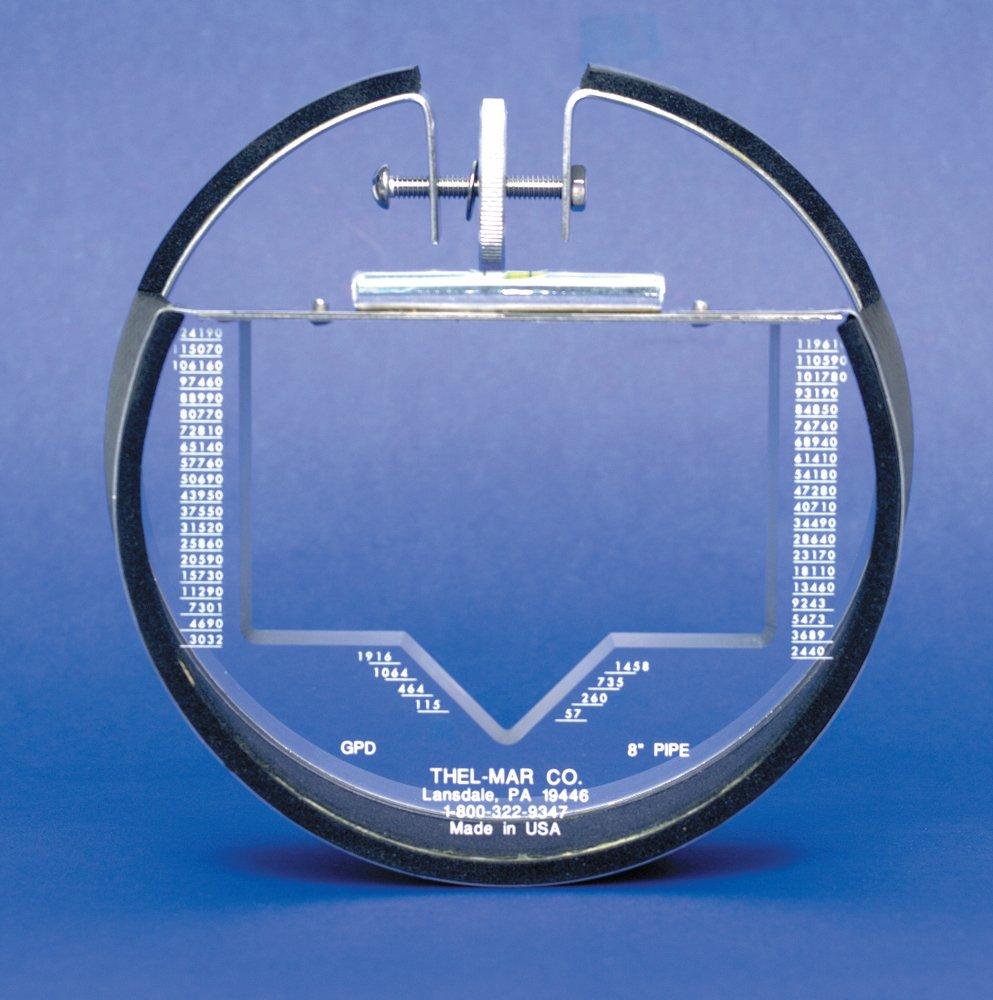

- The most practical and economical calibrated measuring devise used to determine infiltration in newly installed sewer lines, as well as substantial flows in existing pipes
- Thel-Mar weirs offer the advantage of a 90 degree v-notch for measuring small infiltration flow where accuracy is of prime importance and the rectangular portion which measures larger volume flow rates
- Weirs come in 6"- 16" sizes, both as a standard weir or with the bubbler tube and adapters that house a 15" weir in pipes 18"-48" in size
- Rugged construction and non-corroding materials that make our weir extremely reliable
- All graduations are laser etched for clarity and longevity
- Weir measurements have a +/- 5% accuracy, with a 2% accuracy at moderate and high flow rates
- All weirs are calibrated in US Gallons Per 24 Hours. Calibration lines are in 2 millimeter increments
- The V-notch section measures from 57 gallons to 3700 gallons per 24 hours, which is the range of normal acceptance test requirements. The rectangular section of the weir is capable of measuring in gallons per day up to 35% of pipe capacity (10" = 234,000 gpd).
- Fits pipe inside diameter: 9.75-10.25 in
- Made in USA
Specifications
- Material:
- Plastic, Steel, Rubber
- Material Type:
- Lexan®, 304 SS
- Size:
- 10 in
