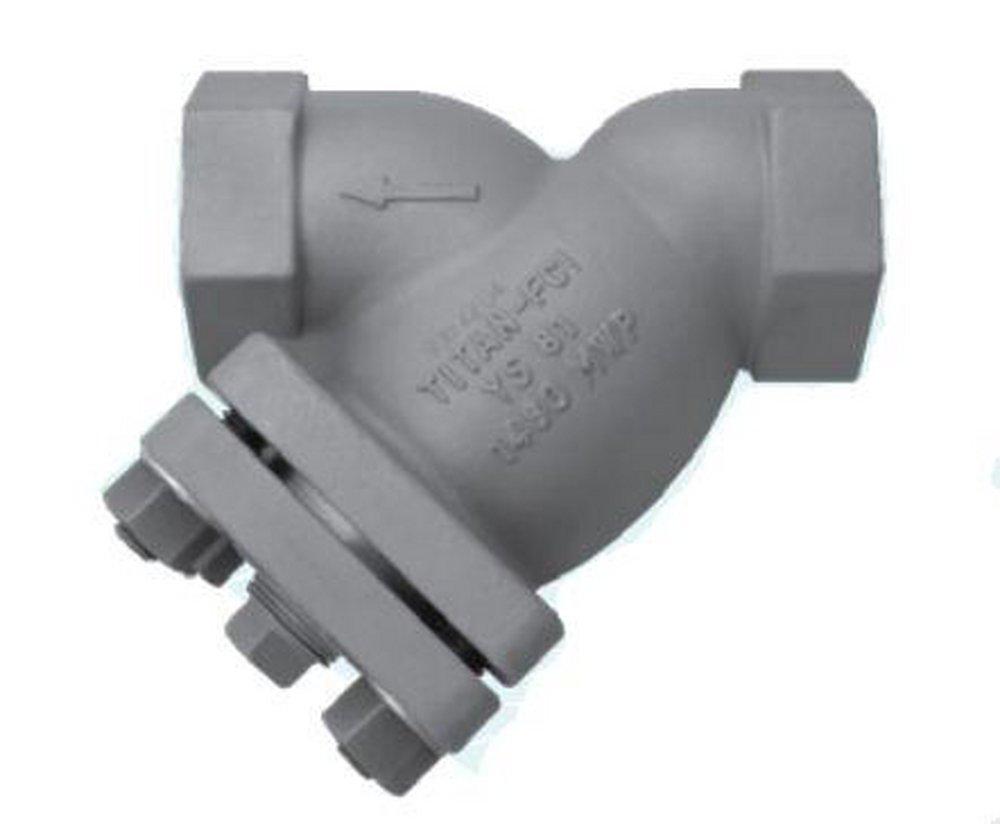

1-1/2 in. 600# Carbon Steel Threaded Perforated Wye Strainer
Titan Flow Control
YS 81-CS 1-1/2 in. 600# Carbon Steel Threaded Perforated Wye Strainer
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Titan Flow Control
YS 81-CS
1-1/2 in. 600# Carbon Steel Threaded Perforated Wye Strainer
YS81C0150
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Bolted and cap cover designs: Titan units YS81BC and YS82BC sizes 2-1/2 in and 3 in have a bolted cover as standard. An optional bolted cover is also available on size 2 in. Cap covers are standard on YS81 and 82 sizes 1/4 in - 1-1/2 in
- Rugged - high quality design: The YS81 is ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements
- Large straining capacity: With its large body and sizable straining element, the YS81 and YS82 provide excellent open area ratios that are typically two-and-a-half times larger then the corresponding pipeline minimizing pressure drop across the valve
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. Also, the machined body seats enable finer filtration by preventing debris bypass
- Self-cleaning capability: With the optional socket weld blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
- Epoxy painted: Carbon units are epoxy painted to help resist rust and corrosion. Titan FCI also offers epoxy coating
Specifications
- ANSI:
- ANSI 600
- ASME:
- ASME B1.20.1, ASME B16.11, ASME B16.34, ASME Class 600
- ASTM:
- ASTM A-216, ASTM A-351
- Collection:
- YS 81-CS
- End Connection 1:
- Threaded
- End Connection 2:
- Threaded
- End Connections:
- Threaded
- Fitting Sizes:
- 1-1/2 in
- Length:
- 5-14/25 in
- Material:
- Carbon Steel, Alloy Steel, Stainless Steel
- Material Type:
- A216-WCB
- Maximum Temperature:
- 100
- Perforation Size:
- 1/16 in
- Pressure - High:
- 1480
- Pressure Class:
- 600#
- Recommended Valve Application:
- Gas, Oil, Petrochemical, Water
- Strainer Type:
- Wye
- UL Listed:
- No
- Valve Body Material:
- Carbon Steel
- Valve Type:
- Y-Strainer
