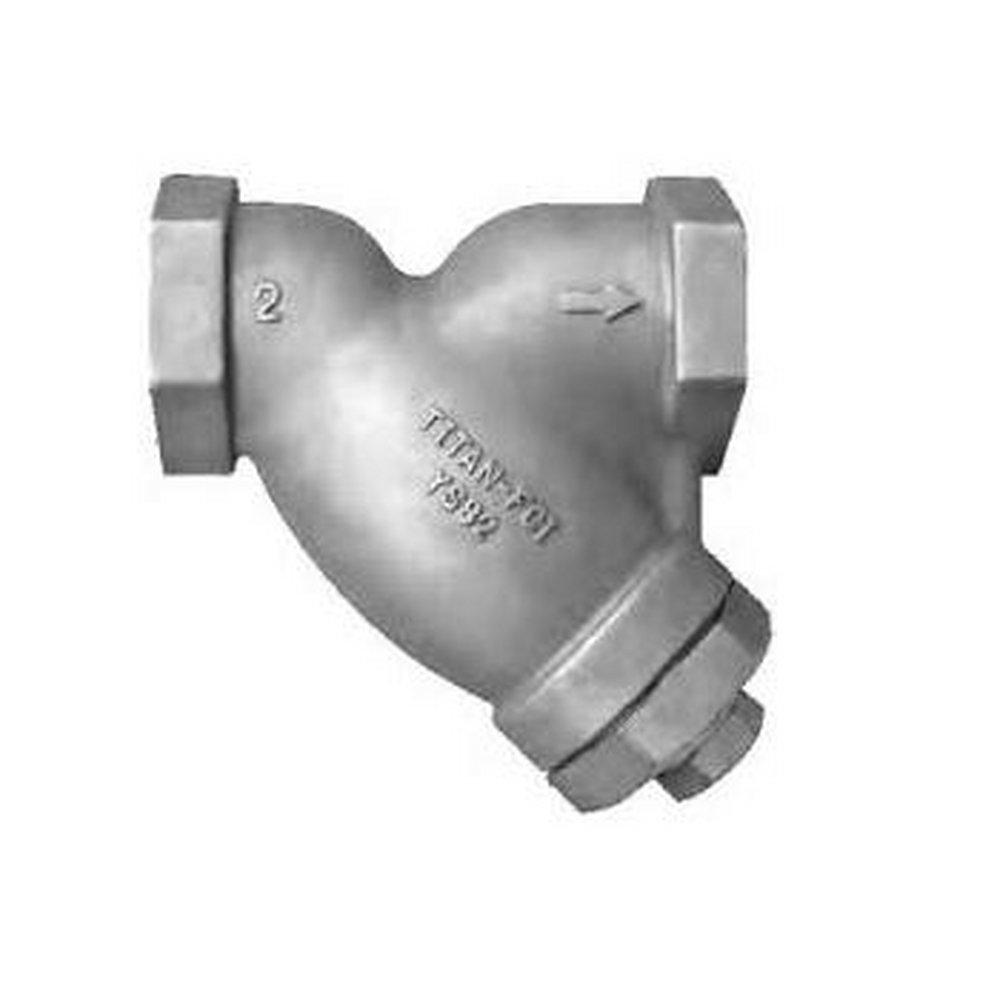

Wye 1/2 in. Stainless Steel Socket Weld Valve Strainer

You last purchased this on

Titan Flow Control

YS 82-SS Wye 1/2 in. Stainless Steel Socket Weld Valve Strainer

This product requires certification to purchase.
Brand image
Titan Flow Control 1/2 in. Stainless Steel Socket Weld Valve Strainer
You last purchased this on

Titan Flow Control

YS 82-SS Wye 1/2 in. Stainless Steel Socket Weld Valve Strainer

  • Fast #
  • Part #TYS82S0050P
  • Item #4485098
  • Manufacturer Part #YS82S0050
5 out of 5 Customer Rating
This product requires certification to purchase.
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

  • Rugged - high quality design: The YS81 is ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements
  • Large straining capacity: With its large body and sizable straining element, the YS81 and YS82 provide excellent open area ratios that are typically two-and-a-half times larger then the corresponding pipeline minimizing pressure drop across the valve
  • Bolted and cap cover designs: Titan units YS81BC and YS82BC sizes 2-1/2 in and 3 in have a bolted cover as standard. An optional bolted cover is also available on size 2 in. Cap covers are standard on YS81 and 82 sizes 1/4 in - 1-1/2 in
  • Epoxy painted: Carbon units are epoxy painted to help resist rust and corrosion. Titan FCI also offers epoxy coating
  • Self-cleaning capability: With the optional socket weld blow-off connection, this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element
  • Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning. Also, the machined body seats enable finer filtration by preventing debris bypass
  • Requires Certification

  • Lead Law Compliant, Not Certified

Specifications

ASME:
ASME B1.20.1, ASME B16.11, ASME B16.34, ASME Class 600
ASTM:
ASTM A-351
BAA Compliant:
No
Coating:
Epoxy
Collection:
YS 82-SS
End Connection 1:
Socket Weld
End Connection 2:
Socket Weld
End Connections:
Socket Weld
Fitting Size 1:
1/2 in
Fitting Size 2:
1/2 in
Fitting Sizes:
1/2 in
Lead Law Compliance Level:
Compliant Not Certified
Material:
Stainless Steel, Alloy Steel
Material Type:
CF8M
NSF Certified:
No
Perforation Size:
1/16 in
Pressure - High:
1440
Pressure Class:
600#
Strainer Type:
Wye
UL Listed:
No
Valve Body Material:
Stainless Steel
Valve Type:
Y-Strainer
Weight:
1.5 lb
