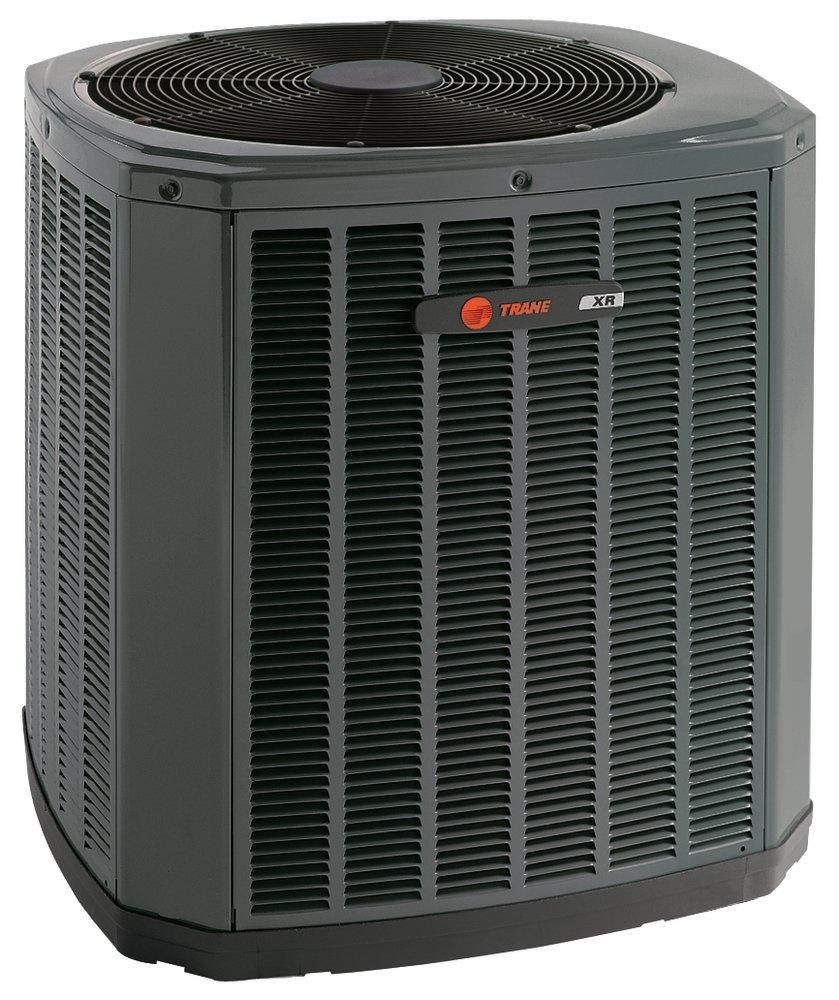

1/8 hp Commercial Air Conditioner Condenser
Trane
4TTA3 1/8 hp Commercial Air Conditioner Condenser
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Trane
4TTA3
1/8 hp Commercial Air Conditioner Condenser
4TTA3036B3000B
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- All aluminum Spine Fin™ coil
- WeatherGuard™ fasteners
- Quick-Sess™ cabinet, service access and refrigerant connections with full coil protection
- DuraTuff™ base, fast complete drain, weatherproof
- Comfort R™ mode approved
- Glossy corrosion-resistant finish
- Internal compressor high/low pressure and temperature protection
- Liquid line filter drier
- Polyslate gray cabinet with anthracite gray badge and cap
Specifications
- A2L Compatible:
- No
- AMP:
- 14
- BTU:
- 36000
- BTU Cooling Rating:
- 36000 Btu/h
- Coil Type:
- Spine Fin
- Collection:
- 4TTA3
- Communicating:
- Non-Communicating
- Compressor Type:
- Scroll
- Decibel Rating (dB):
- 78 dB
- Depth:
- 30 in
- EER:
- 12.5
- Energy Star Compliant:
- No
- Factory Std. Refrigerant Charge:
- 80 oz
- Height:
- 29 in
- Horsepower:
- 1/8 hp
- Liquid Line (OD):
- 3/8 in
- MBH:
- 36
- Max CFM:
- 2800 cfm
- Max Fuse Size:
- 20
- Phase:
- Three Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- SEER:
- 13.0
- Suction Line (OD):
- 3/4 in
- Tonnage:
- 3 Ton
- UL Listed:
- UL 1995
- Volts:
- 208/230V
- Weight:
- 149 lb
- Width:
- 33 in
