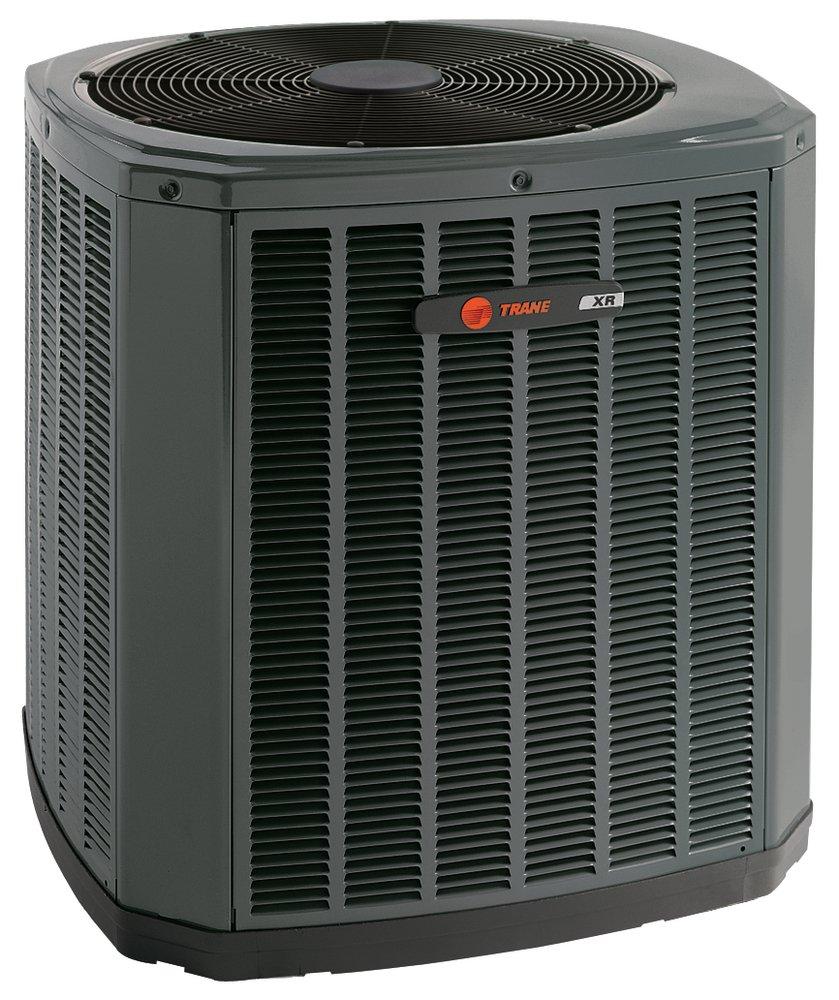

5 Ton 17 SEER Vertical Two-Stage R-410A 1/4 hp 230V Split-System Heat Pump
Trane
4TWA7 XR17 5 Ton 17 SEER Vertical Two-Stage R-410A 1/4 hp 230V Split-System Heat Pump
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in OH
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in OH
Purchase history
Trane
4TWA7 XR17
5 Ton 17 SEER Vertical Two-Stage R-410A 1/4 hp 230V Split-System Heat Pump
4TWA7060A3000A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
-
Green
Specifications
- A2L Compatible:
- No
- AMP:
- 22, 35, 16.2, 110, 1.3
- BTU:
- 60000
- BTU Cooling Rating:
- 55500 Btu/h
- Coil Type:
- Spine Fin
- Collection:
- 4TWA7 XR17
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Vertical
- Decibel Rating (dB):
- 74 dB
- Depth:
- 35-1/2 in
- ETL Listed:
- No
- Energy Star Compliant:
- Yes
- Height:
- 51 in
- Horsepower:
- 1/4 hp
- Liquid Line (OD):
- 3/8 in
- MBH:
- 60
- Max Fuse Size:
- 35
- Phase:
- Three Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- SEER:
- 17.0
- Suction Line (OD):
- 1-1/8 in
- Tonnage:
- 5 Ton
- UL Listed:
- UL 1995
- Volts:
- 230V
- Width:
- 38-7/10 in
