12,000 BTU 23.1 SEER Wall Mount Indoor Single-Zone Mini-Split Heat Pump

Trane

NV Series 12,000 BTU 23.1 SEER Wall Mount Indoor Single-Zone Mini-Split Heat Pump

  • Fast #
  • Part #TNTXWST12B112AA
  • Item #10763011
  • Manufacturer Part #NTXWST12B112AA
4.4 out of 5 Customer Rating
Brand image

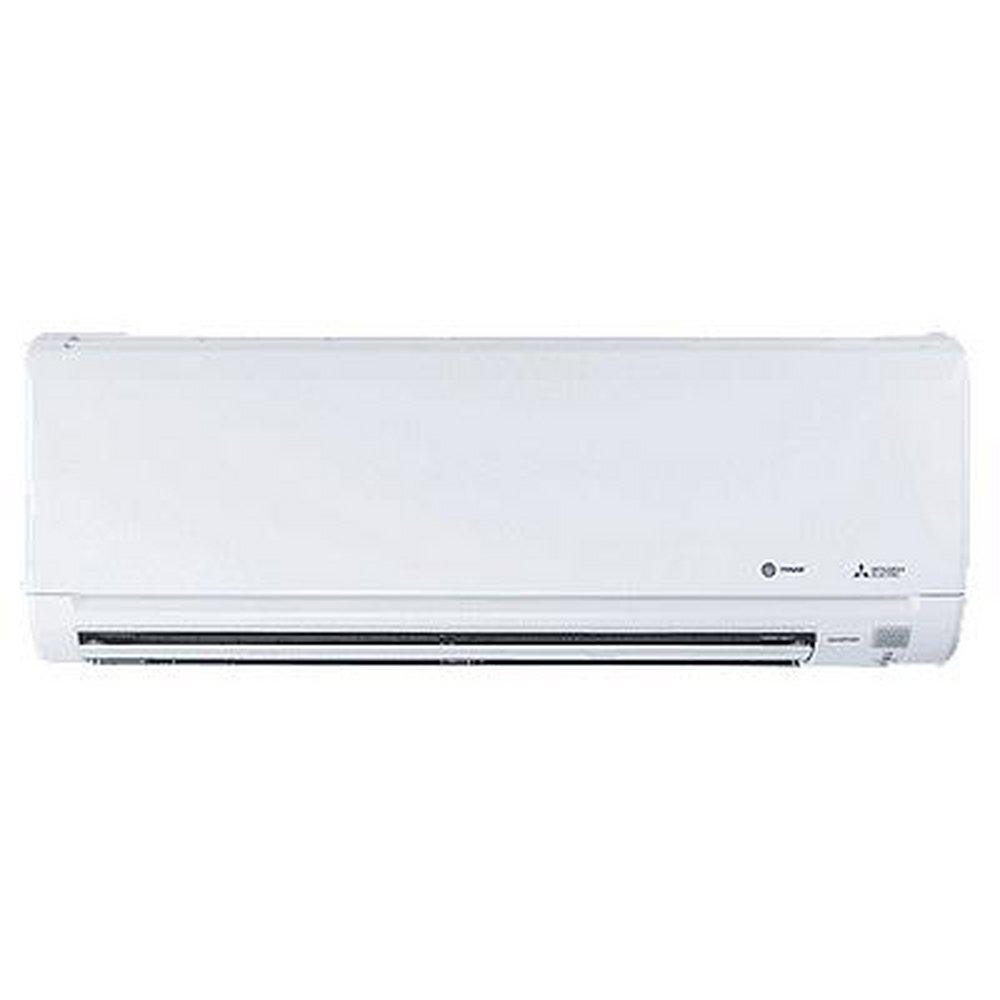

INDR 12 MBH 23.1 SEER 208/230V WM H/P
INDR 12 MBH 23.1 SEER 208/230V WM H/P
Trane

NV Series 12,000 BTU 23.1 SEER Wall Mount Indoor Single-Zone Mini-Split Heat Pump

  • Fast #
  • Part #TNTXWST12B112AA
  • Item #10763011
  • Manufacturer Part #NTXWST12B112AA
4.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only, products sold in select areas only, please contact your local branch for availability in your area
  • User friendly, zoned cooling and heating solutions for single or multi-room applications or the whole home
  • Pro-Heat inverter outdoor units can provide high-heating performance at lower ambient temperatures
  • Slim wall-mounted indoor units provide zone comfort control
  • Dual barrier coating applied to the heat exchanger, vanes and fan to prevent hydrophilic and hydrophobic dirt build-up
  • The outdoor unit powers the indoor unit and should a power outage occur, the system is automatically restarted when power returns
  • Quiet operation
  • Smart set recalls a preferred preset temperature setting at the touch of a button
  • Built-in backup/auxiliary heater control available
  • Requires Certification

  • Green

Documents

SPECIFICATION

Specifications

AMP:
0.23
Application:
Residential
BTU:
12300
BTU Cooling Rating:
12000 Btu/h
BTU Heat Rating:
13000 Btu/h
CFM:
390 ft3/min
Collection:
NV Series
Compressor Stages:
Two Stage
Compressor Type:
Rotary
Decibel Rating (dB):
43 dB
Depth:
9-1/8 in
EER:
13.05
HSPF:
13.2
HSPF2:
10.7
Height:
11-5/8 in
Indoor Outdoor:
Indoor
Installation Type:
Wall Mount
Liquid Line (OD):
1/4 in
MBH:
12
Maximum Overcurrent Protection (MOP):
15
Phase:
Single Phase
Refrigerant:
R-410A
Refrigeration Control Type:
LEV
SEER:
23.1
SEER2:
25.6
Volts:
208/230V
Watts:
30 W
Width:
31-3/8 in
Zones:
1
