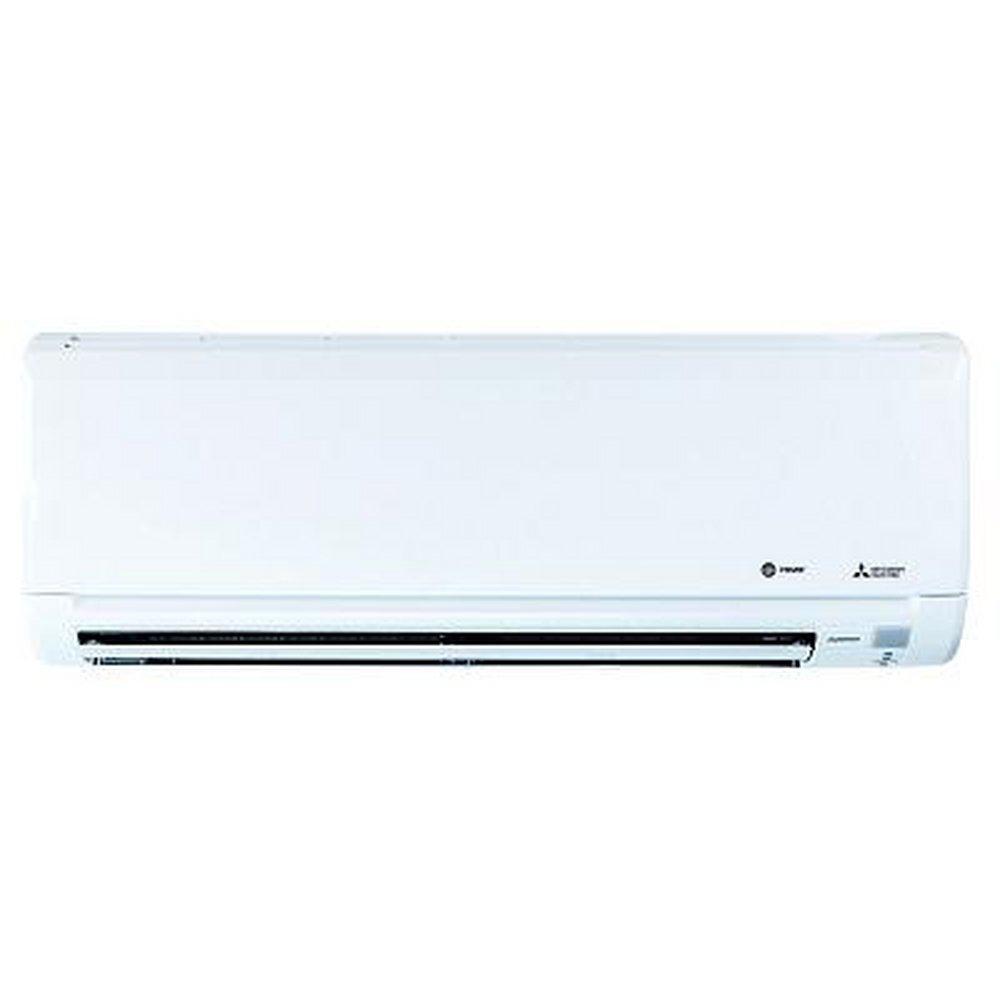

INDR 12 MBH 23.1 SEER 208/230V WM A/C
Trane
NV Series INDR 12 MBH 23.1 SEER 208/230V WM A/C
Purchase history
Trane
NV Series
INDR 12 MBH 23.1 SEER 208/230V WM A/C
NTYWST12B112AA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only, products sold in select areas only, please contact your local branch for availability in your area
- User friendly, zoned cooling and heating solutions for single or multi-room applications or the whole home
- Pro-Heat inverter outdoor units can provide high-heating performance at lower ambient temperatures
- Slim wall-mounted indoor units provide zone comfort control
- The outdoor unit powers the indoor unit and should a power outage occur, the system is automatically restarted when power returns
- Multiple fan speed options low, medium, high, powerful, auto
- Hand-held remote controller (provided with unit)
- Third-party interface options
- Wired or wireless controllers
- Hot-Start technology no cold air rush at equipment startup or when restarting after defrost cycle
-
Green
Documents
Specifications
- AMP:
- 0.5
- Application:
- Residential
- BTU:
- 12000
- BTU Cooling Rating:
- 12000 Btu/h
- CFM:
- 381
- Collection:
- NV Series
- Compressor Stages:
- Two Stage
- Compressor Type:
- Rotary
- Decibel Rating (dB):
- 45 dB
- Depth:
- 11-1/4
- EER:
- 13.05
- Height:
- 21-5/8
- Indoor Outdoor:
- Indoor
- Installation Type:
- Wall Mount
- Liquid Line (OD):
- 1/4
- Lock Rotor Amps (LRA):
- 8.4
- MBH:
- 12
- Maximum Overcurrent Protection (MOP):
- 15
- Phase:
- Single Phase
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- LEV
- SEER:
- 23.1
- SEER2:
- 25.6
- SEER2 Range:
- 15.2 - 40.0
- Type:
- TNTYWST12B112AA
- Volts:
- 208/230V
- Watts:
- 55
- Weight:
- 23
- Width:
- 31-7/16
- Zones:
- 1
