10 Ton - Heat Pump - 208/230/3 - R-410A
Trane

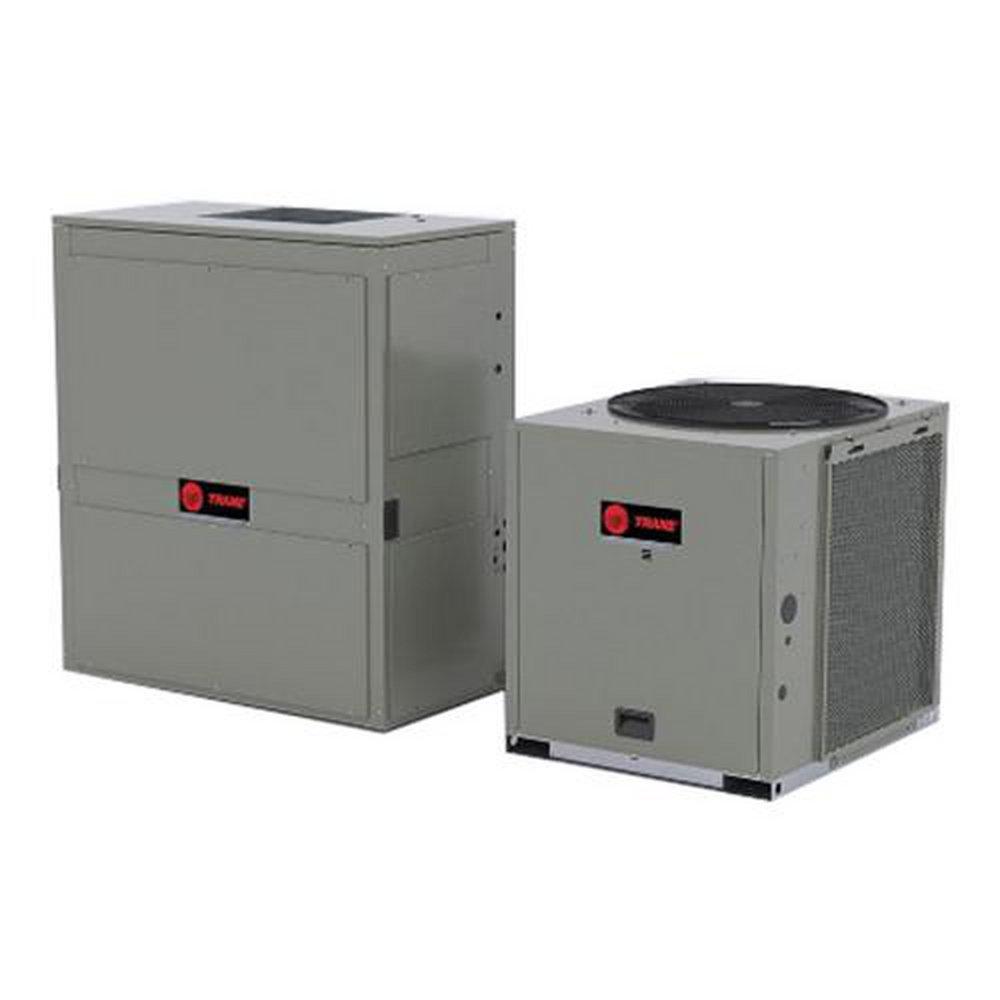

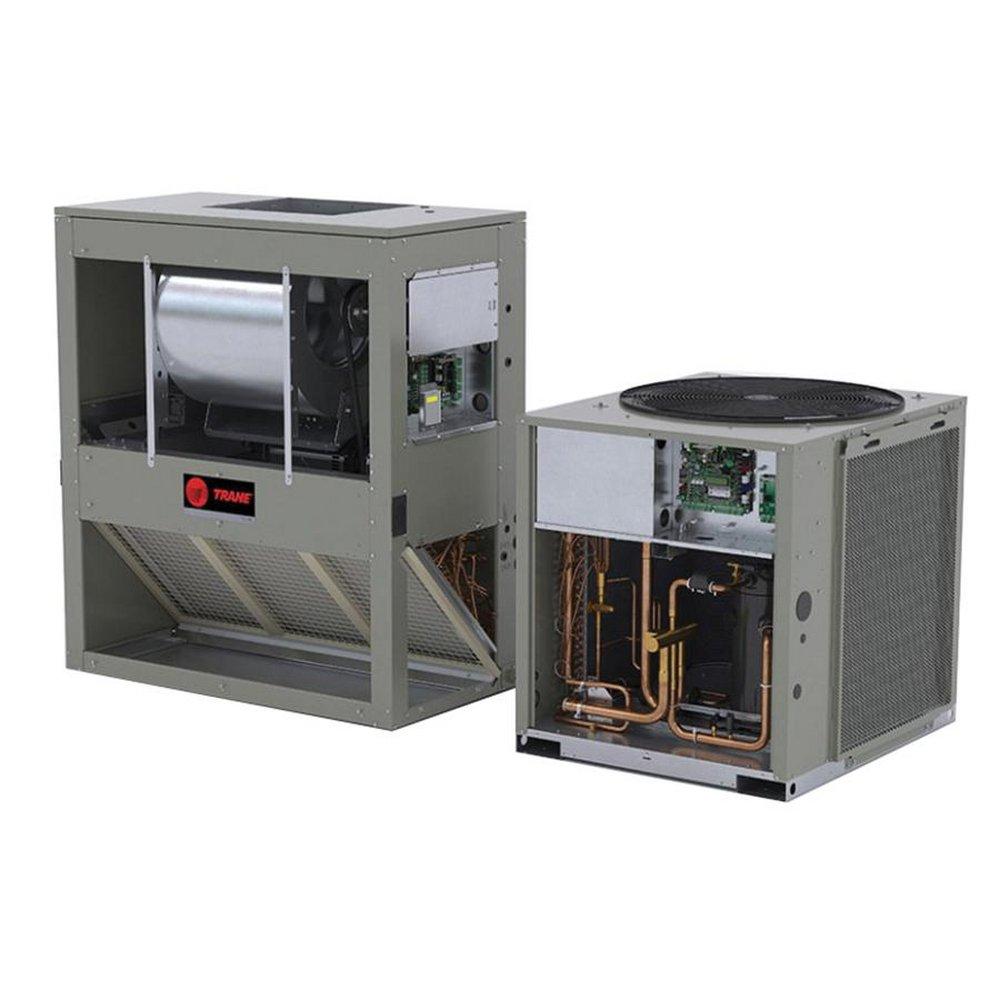

Odyssey™ 10 Ton - Heat Pump - 208/230/3 - R-410A
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Trane
Odyssey™
10 Ton - Heat Pump - 208/230/3 - R-410A
TWA12043DAAE03D
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. products sold in select areas only, please contact your local branch for availability in your area.
- Odyssey™ can replace an older machine with old ductwork and, in many cases, improve the comfort through better air distribution
- The Symbio™ 700 controller provides a 3 min minimum "On" time and 3 min "Off" time for compressors to enhance compressor reliability by assuring proper oil return
- For additional static requirements, Odyssey™ split systems offer standard belt drive motors to meet and exceed a wide range of airflow needs
- The pre-coated coils are an economical option for protection in mildly corrosive environments
- The air handlers ship in a horizontal configuration. they can be easily converted to vertical by simply repositioning the drain pan
- These band heaters provide improved compressor reliability by warming the oil to prevent migration during off-cycles or low ambient conditions
- Every Odyssey™ unit has a non-corrosive, removable, double sloped drain pan that's easy to clean and reversible to allow installation of drain trap in two positions on either side of the unit
- An optional field installed kit that can save time and money
- Electric heat modules are available in a variety of voltages and capacities
Specifications
- A2L Compatible:
- No
- AMP:
- 110, 16, 20, 4.8
- BTU:
- 120000
- BTU Cooling Rating:
- 126000 Btu/hr
- Coil Type:
- Lanced
- Collection:
- Odyssey™
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Horizontal
- Depth:
- 51-11/16 in
- EER:
- 11.2
- Factory Std. Refrigerant Charge:
- 201.6 oz
- Height:
- 50-3/4 in
- Horsepower:
- 1 hp
- IEER:
- 14.1
- Liquid Line (OD):
- 1/2 in
- MBH:
- 120
- Max CFM:
- 8900 cfm
- Max Fuse Size:
- 50
- Phase:
- Three Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- Suction Line (OD):
- 1-1/8 in
- Tonnage:
- 10 Ton
- Volts:
- 208/230V
- Watts:
- 9.9 W
- Width:
- 39-5/16 in
