20 Ton 240 MBH 208/230V Three Phase Commercial Packaged Gas/Electric Unit
Trane

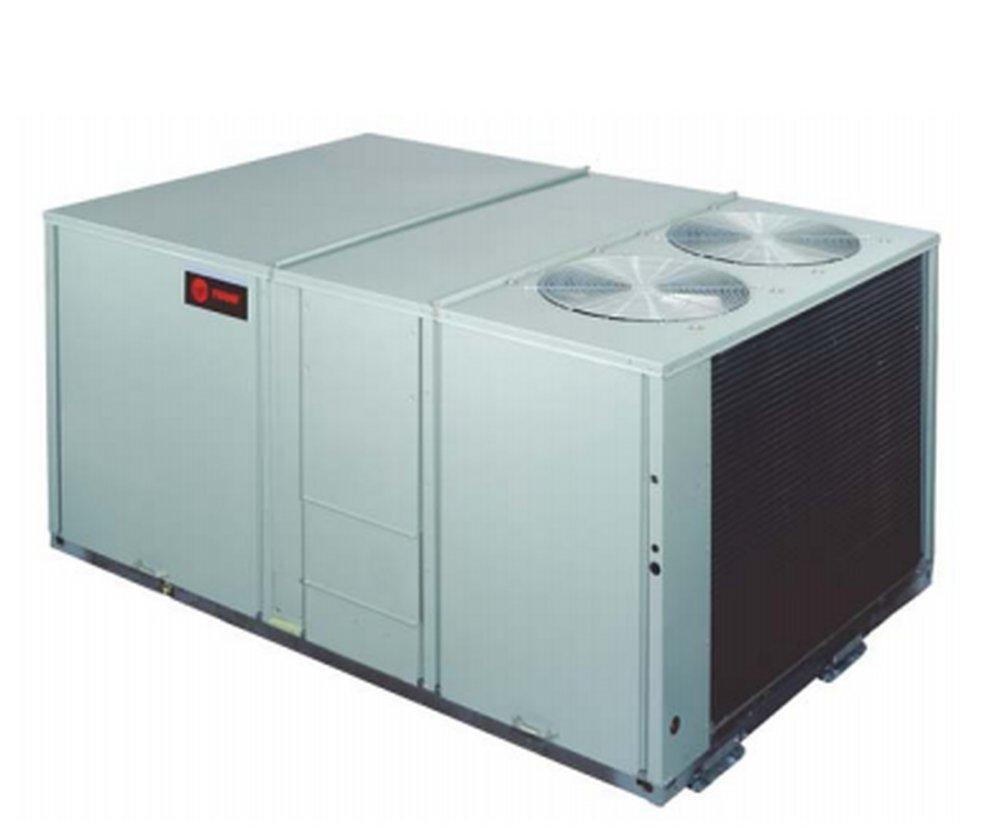

Precedent® 20 Ton 240 MBH 208/230V Three Phase Commercial Packaged Gas/Electric Unit
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Trane
Precedent®
20 Ton 240 MBH 208/230V Three Phase Commercial Packaged Gas/Electric Unit
YSJ240A3S0H0000
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- The ultimate in performance, four unit types-and new standard efficiency ratings
- Meets a wide range of needs, from standard efficiency to ultra high efficiency
- Feature-rich and cost-effective
- Cooling only with optional electric heat - All electric
- Gas pack - Electric cooling plus gas heating
- Heat pump - All-electric refrigerant-system cooling and heating
- Hybrid / dual fuel-refrigerant-system cooling and heating with gas auxiliary heating
- All models now meet DOE 2023 minimum efficiency regulations
- Right-sized for straightforward retrofits
Specifications
- A2L Compatible:
- No
- AFUE:
- 79.80 %
- AMP:
- 164, 19.4, 26.1, 270, 4.3, 43.1
- Application:
- Commercial
- BTU:
- 240000
- BTU Cooling Rating:
- 240000 Btu/h
- BTU Heat Rating:
- 400000 Btu/h
- Blower Type:
- Direct Drive
- CFM:
- 8000 ft3/min
- Coil Type:
- Micro-channel
- Collection:
- Precedent®
- Compressor Type:
- Scroll
- Configuration:
- Convertible, Downflow, Horizontal
- Decibel Rating (dB):
- 91 dB
- Depth:
- 84-3/16 in
- EER:
- 9.8
- ETL Listed:
- No
- Energy Star Compliant:
- No
- Fuel Type:
- Natural Gas, Propane
- Heat Exchanger Type:
- Stainless Steel
- Height:
- 64-1/8 in
- Horsepower:
- 2 hp
- Ignition System:
- Direct Spark Ignition
- Length:
- 123 in
- MBH:
- 240
- Max CFM:
- 9600 cfm
- Max Fuse Size:
- 125
- Phase:
- Three Phase
- Power Source:
- Electric, Gas
- RPM:
- 1125
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- Stages:
- Two
- Tonnage:
- 20 Ton
- UL Listed:
- Yes
- Volts:
- 208/230V
- Watts:
- 24.49 kW
- Width:
- 87 in
