80% - Single-Stage - 40K BTU - Multi-Position - Gas Furnace - 14.5"

Trane

S8X1 Series 80% - Single-Stage - 40K BTU - Multi-Position - Gas Furnace - 14.5"

  • Fast #
  • Part #TS8X1A040M3PSCA
  • Item #9523127
  • Manufacturer Part #S8X1A040M3PSCA
5 out of 5 Customer Rating
Brand image

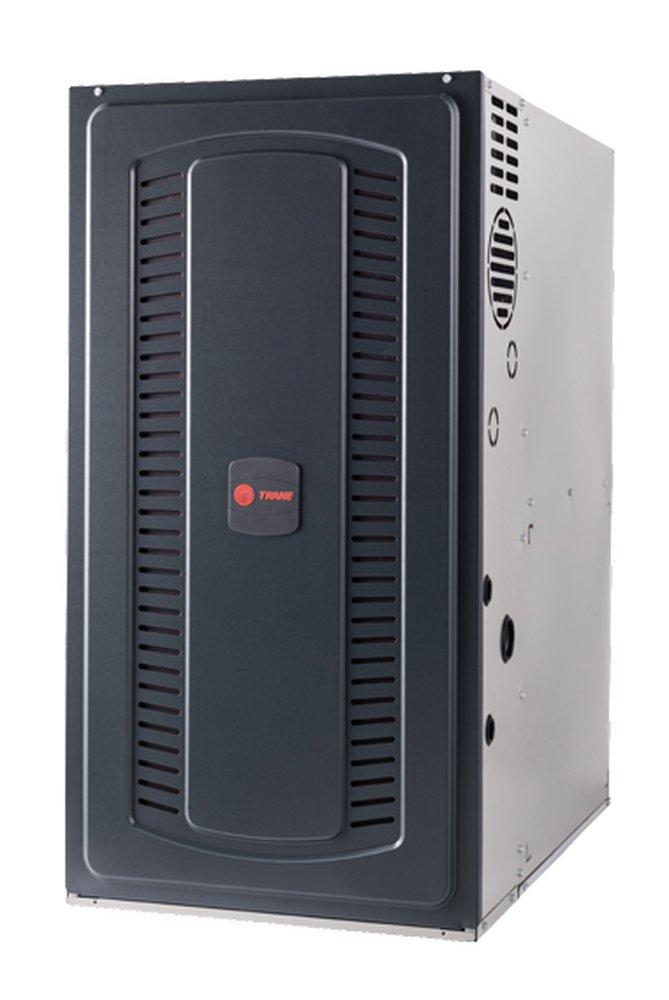

Trane 80.00% AFUE - Multi - Furnace
Trane 80.00% AFUE - Multi - Furnace
Trane

S8X1 Series 80% - Single-Stage - 40K BTU - Multi-Position - Gas Furnace - 14.5"

  • Fast #
  • Part #TS8X1A040M3PSCA
  • Item #9523127
  • Manufacturer Part #S8X1A040M3PSCA
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Abilene, TX
    0 nearby
    Pick Up  Not Available
    Not available in TX
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in TX

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Nine tap blower motor
  • Self-diagnostic microelectronic controller
  • Heavy steel cabinet
  • Durable silicon nitride hot surface igniter
  • Multi-port, in-shot burners
  • Tubular steel heat exchanger
  • Pre-painted galvanized steel cabinet
  • Insulated cabinet for quiet operation
  • Requires Certification

  • Green

Specifications

A2L Compatible:
Contingent
AFUE:
80
AMP:
8.5
ANSI:
ANSI Z21.47
BTU:
40000
BTU Heat Rating:
32300 Btu/h
Blower Type:
Direct Drive
Brand Model Compatibility:
CleanEffects®
CFM:
1200
Coil Type:
Evaporator
Collection:
S8X1 Series
Communicating:
Communicating
Condensing:
No
Configuration:
Downflow, Horizontal Left, Horizontal Right, Upflow
Depth:
28-3/4
ETL Listed:
No
Energy Star Compliant:
No
Fan Speeds:
9
Flue Size:
4
Fuel Type:
Natural Gas
Gas Valve Stages:
Single-Stage
Heat Exchanger Type:
Aluminized Steel
Height:
34
Horsepower:
1/2 hp
Ignition System:
Silicon Nitride Hot Surface
Input (MBH):
40 MBH
MBH:
32.3
Max Fuse Size:
15
Number of Burners:
2
Phase:
Single Phase
Power Source:
Gas
Refrigerant:
R-410A;R-454B
SEER:
2.0
Temperature Range:
30 to 60 Deg F
Tonnage:
3 Ton
UL Listed:
No
Volts:
120V
Weight:
94
Width:
14-1/2
