7.5 Ton - Direct Drive Split HP / AC Air Handler - R-410A - 460/3

Trane

TWE Series 7.5 Ton - Direct Drive Split HP / AC Air Handler - R-410A - 460/3

  • Fast #
  • Part #TTWE09044AAAP01L
  • Item #10845383
  • Manufacturer Part #TWE09044AAAP01L
5 out of 5 Customer Rating
Brand image

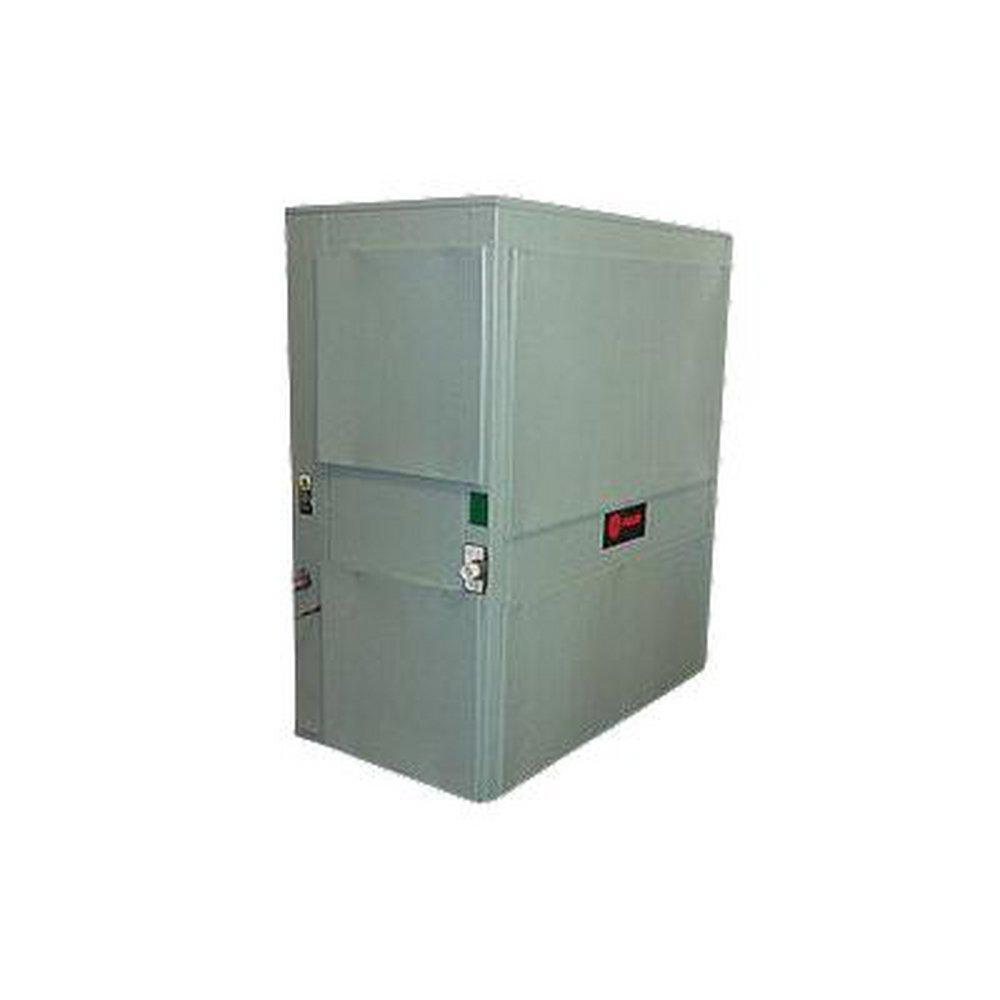

7.5T A/H 460V 3PH R410A
7.5T A/H 460V 3PH R410A
Trane

TWE Series 7.5 Ton - Direct Drive Split HP / AC Air Handler - R-410A - 460/3

  • Fast #
  • Part #TTWE09044AAAP01L
  • Item #10845383
  • Manufacturer Part #TWE09044AAAP01L
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Auburn, CA
    0 nearby
    Pick Up  Not Available
    Not available in CA
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in CA

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Interconnecting wiring between components is standardized using colored and keyed connectors and colored wires, helping to save time and money tracing wires and diagnosing the unit
  • Odyssey split systems contain the best compressor technology available to achieve the highest possible performance
  • Dual compressors perform very well under part load cooling conditions and system backup applications
  • Dual compressors are allow for efficient cooling utilizing two stages of compressor operation
  • The air handlers ship in a horizontal configuration
  • They can be easily converted to vertical by simply repositioning the drain pan
  • These band heaters provide improved compressor reliability by warming the oil to prevent migration during off-cycles or low ambient conditions
  • Every Odyssey unit has a non-corrosive, removable, double sloped drain pan that's easy-to-clean and reversible to allow installation of drain trap in two positions on either side of the unit
  • Thermostat and other low voltage control wiring connections are made directly to the symbio 700 and other boards in the system
  • Requires Certification

Documents

INSTALLATION

Specifications

A2L Compatible:
No
AMP:
6.8
BTU:
90000
Coil Type:
Lanced
Collection:
TWE Series
Configuration:
Multi-Position
Depth:
26-1/2
Height:
54-1/8
Liquid Line (OD):
1/2
MBH:
90
Max CFM:
3000
Phase:
Three Phase
Refrigerant:
R-410A
Suction Line (OD):
1-3/8
Tonnage:
7.5 Ton
Volts:
460V
Watts:
34.88
Width:
49-1/8
