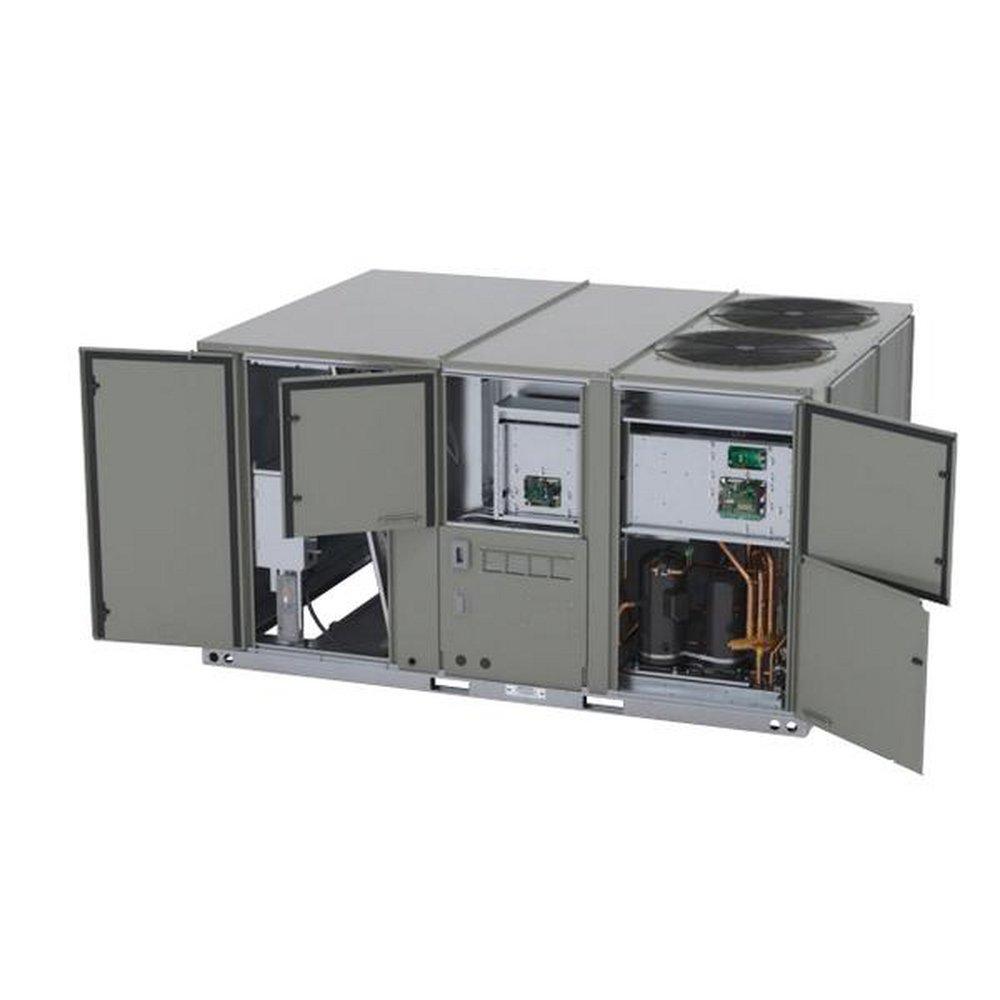

12.5 Convertible Commercial Packaged Heat Pump 460V
Trane
WSJ Series 12.5 Convertible Commercial Packaged Heat Pump 460V
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Trane
WSJ Series
12.5 Convertible Commercial Packaged Heat Pump 460V
WSJ240A4S0P00L1
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Airflow is outstanding, Precedent™ can replace an older machine with old ductwork and, in many cases, improve the comfort through better air distribution
- For added water integrity, Precedent™ has a raised 1 inch lip around the supply and return of the down flow units to prevent water from blowing into the ductwork
- Coil guards protect condenser coil during shipping as well as hail, vandals, wind and more, toolless design lends itself to ease of maintenance in cleaning coils
- Future ready upgradable software, supporting changing codes and new sequences of operation
- Standard, consistent pre-engineered applications that meet industry standards
- Expandable inputs and outputs (requires Tracer TU)
- Ability to add custom programmed sequences (requires Tracer TU)
- Control box consists of a multilevel design with Symbio Controls located on hinged panels which provide protection from high-voltage components for ease of servicing
- Units ship in a down flow configuration and can be easily converted to horizontal by simply removing two panels
Documents
Specifications
- AMP:
- 2.5
- Application:
- Commercial
- BTU:
- 246000
- BTU Cooling Rating:
- 240000 Btu/h
- BTU Heat Rating:
- 224000 Btu/h
- CFM:
- 6000 ft3/min
- Collection:
- WSJ Series
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Convertible
- Decibel Rating (dB):
- 93 dB
- EER:
- 9.5
- Horsepower:
- 11.4 hp
- IEER:
- 13.5
- Lock Rotor Amps (LRA):
- 147
- MBH:
- 184.41
- Max CFM:
- 9600 cfm
- Max Fuse Size:
- 70
- Number of Condenser Fan Motors:
- 2
- Phase:
- Three Phase
- Power Source:
- Electric
- RPM:
- 3500
- Rated Load Amps (RLA):
- 21.3
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- Stages:
- Two
- Tonnage:
- 20 Ton
- UL Listed:
- Yes
- Vent Ducted or Ductless:
- Ducted
- Volts:
- 460V
- Watts:
- 54 kW
