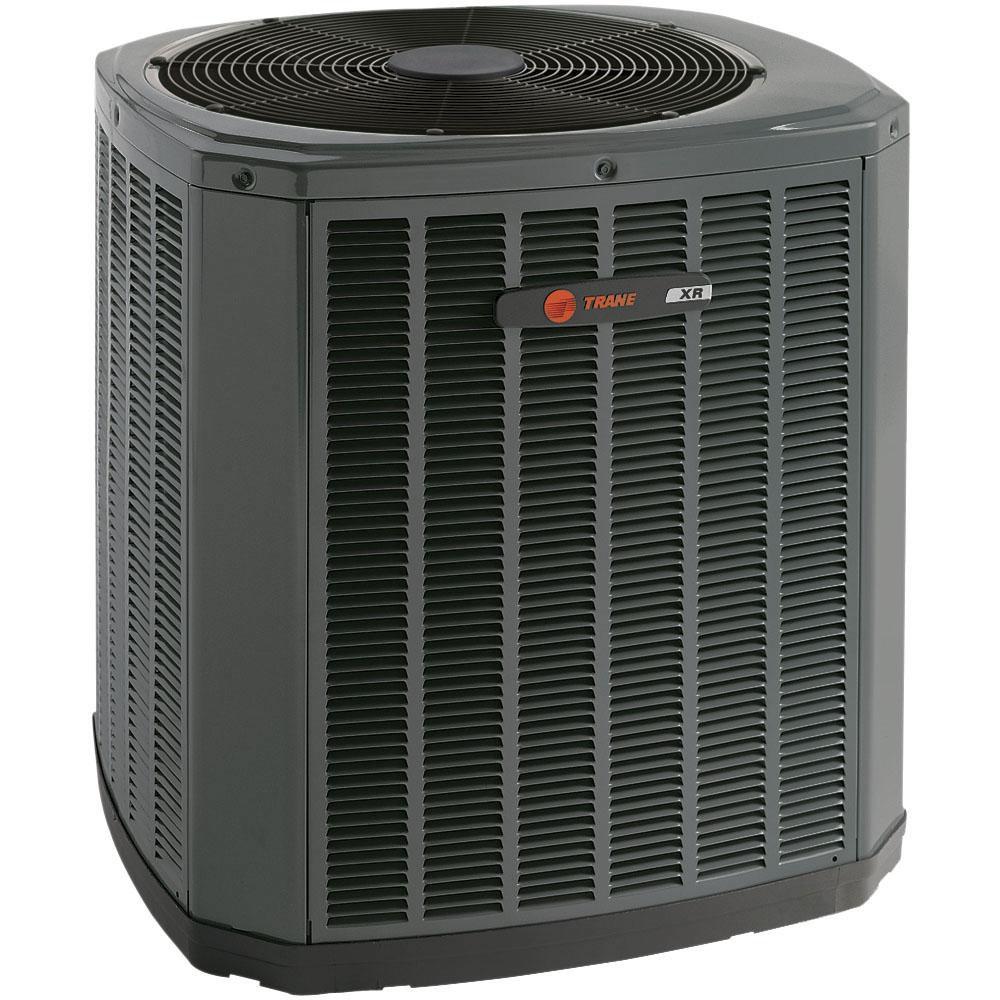

2.5 Ton - up to 13.8 SEER2 - Air Conditioner - 208/230V - R-410A
Trane
XR13 Series 2.5 Ton - up to 13.8 SEER2 - Air Conditioner - 208/230V - R-410A
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Trane
XR13 Series
2.5 Ton - up to 13.8 SEER2 - Air Conditioner - 208/230V - R-410A
4TTR3030N1000B
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
-
Green
Documents
Specifications
- A2L Compatible:
- No
- AMP:
- 17
- BTU:
- 300000
- BTU Cooling Rating:
- 30000 Btu/h
- CFM:
- 2800 ft3/min
- Coil Type:
- Spine Fin
- Collection:
- XR13 Series
- Compressor Stages:
- Single Stage
- Compressor Type:
- Scroll
- Decibel Rating (dB):
- 73 dB
- Depth:
- 33 in
- Factory Std. Refrigerant Charge:
- 11 oz
- Height:
- 34 in
- Horsepower:
- 1/8 hp
- Length:
- 29-3/4 in
- Liquid Line (OD):
- 3/8 in
- Lock Rotor Amps (LRA):
- 68
- MBH:
- 30
- Max Fuse Size:
- 25
- Maximum Overcurrent Protection (MOP):
- 25
- Minimum Circuit Ampacity (MCA):
- 17
- Phase:
- Single Phase
- Power Source:
- Electric
- RPM:
- 825
- Refrigerant:
- R-410A
- SEER:
- 13.0
- SEER2:
- 13.8
- Sound Blanket:
- No
- Suction Line (OD):
- 3/4 in
- Tonnage:
- 2.5 Ton
- UL Listed:
- Yes
- Volts:
- 208/230V
- Weight:
- 156 lb
- Width:
- 30-1/10 in
