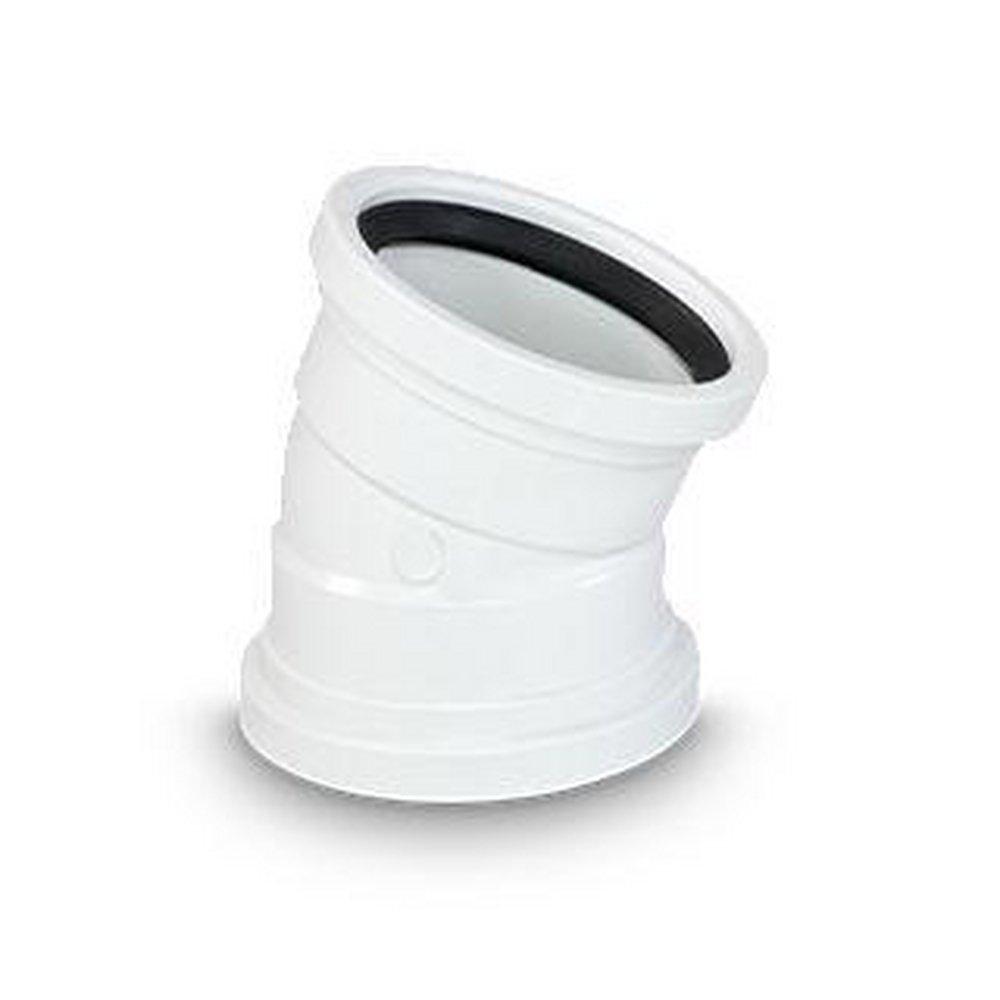

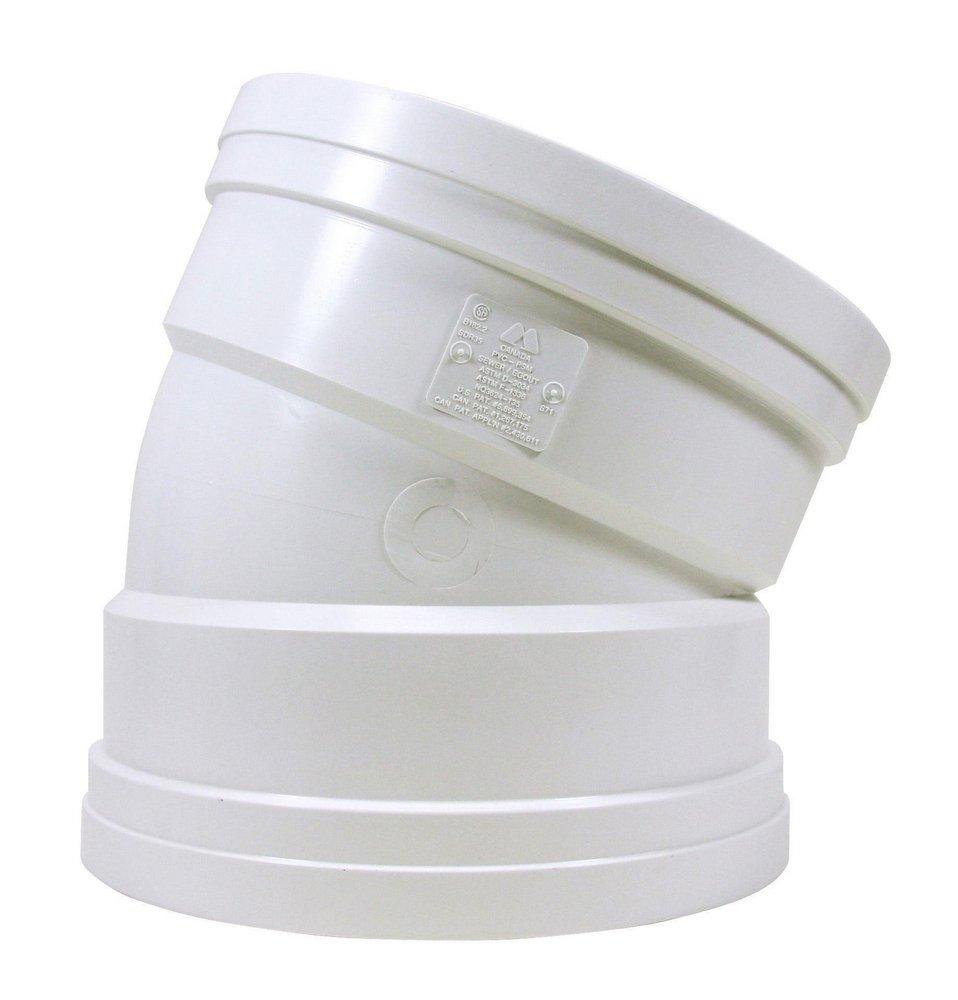

10 in. Gasket 22-1/2 Degree SDR 35 Plastic Sewer Elbow
TRENCH TOUGH PLUS
10 in. Gasket 22-1/2 Degree SDR 35 Plastic Sewer Elbow
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 24Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
TRENCH TOUGH PLUS
10 in. Gasket 22-1/2 Degree SDR 35 Plastic Sewer Elbow
117-0010
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Injection Molded
- Reinforced To SDR26 Thickness At Key Locations, Such As Branches Of Tees And Wyes For Optimal Long-term Performance
- Joint Withstands 15 Psi Hydrostatic Pressure And A -10.8 Psi Vacuum Pressure
- Leak-proof At 5° Joint Deflection And 5% Ring Deflection
- Engineered For Strength Exceeding Astm Requirements By Over 25%
- Typically, Half The Weight Of Fabricated Fittings
- Corrosion Resistant
- Advanced Material Formulations Allow The Fitting To Resist Extreme Forces Without Losing Flexibility
- Lightweight And Easy To Handle With The Patented Trench Tough Plus™ Locked-in Gasket Design, Manufactured To Allow For A High Degree Of Joint Deflection, Reducing The Risks Caused By Soil Settlement Or Shifting
- Leads The Industry In Crush-resistance And Able To Handle Extreme Loads Underground, Designed To Withstand The Rigors Of The Job Site, Exceeding Astm Impact Standards
Dimensions & Measurements
Elbow Degree
22-1/2°
End Connection 1
Gasket
End Connection 2
Gasket
End Connections
Gasket x Gasket
Fitting Size 1
10 in
Fitting Size 2
10 in
Fitting Sizes
10 in
Pressure - Maximum
15 psi
Characteristics & Features
Clean Bagged
No
Fitting Type
Sewer Elbow
Material
Plastic
Material Type
PVC
Schedule Class
SDR 35
Electrical & Operational Information
Maximum Temperature
73
Warranty & Product Information
Application
Waste, Storm, Industrial
ASTM
ASTM D-1784, ASTM D-3034, ASTM F-170, ASTM F-679, ASTM F-1336
CSA Certified
CSA B181.2, CSA B182.2
FM Approved
No
IAPMO Listed
Yes
NSF Certified
No
Origin
Global
UL Listed
No
UPC
622454273085
