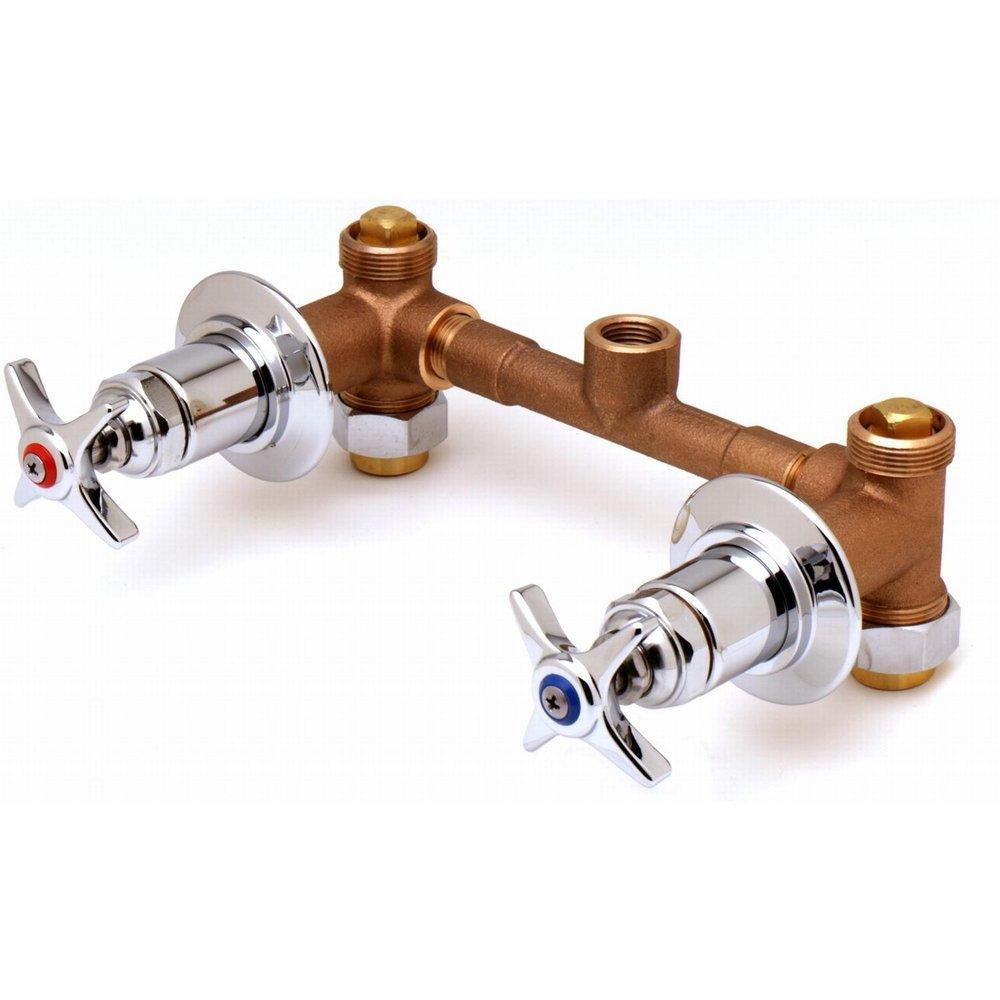

Concealed Bypass Mixing Valve, 1/2" NPT Female Inlets & Outlets, Loose Key Integral Stops
T&S Brass
Concealed Bypass Mixing Valve, 1/2" NPT Female Inlets & Outlets, Loose Key Integral Stops
Package Quantity Info:
Each: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
T&S Brass
Concealed Bypass Mixing Valve, 1/2" NPT Female Inlets & Outlets, Loose Key Integral Stops
B-1035-ST
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Concealed 8" bypass mixing valves with brass body
- NPT 1/2" female union inlet connection
- Tall 6" polished chrome plated brass adjustable wall flanges and sleeves
- NPT 1/2" female outlet
- Eterna compression cartridges with 4 arm handles and color coded indexes
- NPT 1/2" female loose key straight stop inlets with tee handles
- Material: Brass valve bodies, polished chrome plated brass adjustable wall flanges & sleeves and chrome plated metal handles
-
Lead Law Compliant
-
ADA Compliant
Specifications
- ADA Compliant:
- Yes
- ASME:
- ASME A112.18.1
- Application:
- Commercial
- CSA Certified:
- CSA B125.1
- Faucet Mount:
- Wall Mount
- Flow Rate:
- 7.68 gpm
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Maximum Temperature:
- 140
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Pressure - Maximum:
- 125 psi
- UPC:
- 671262008815
