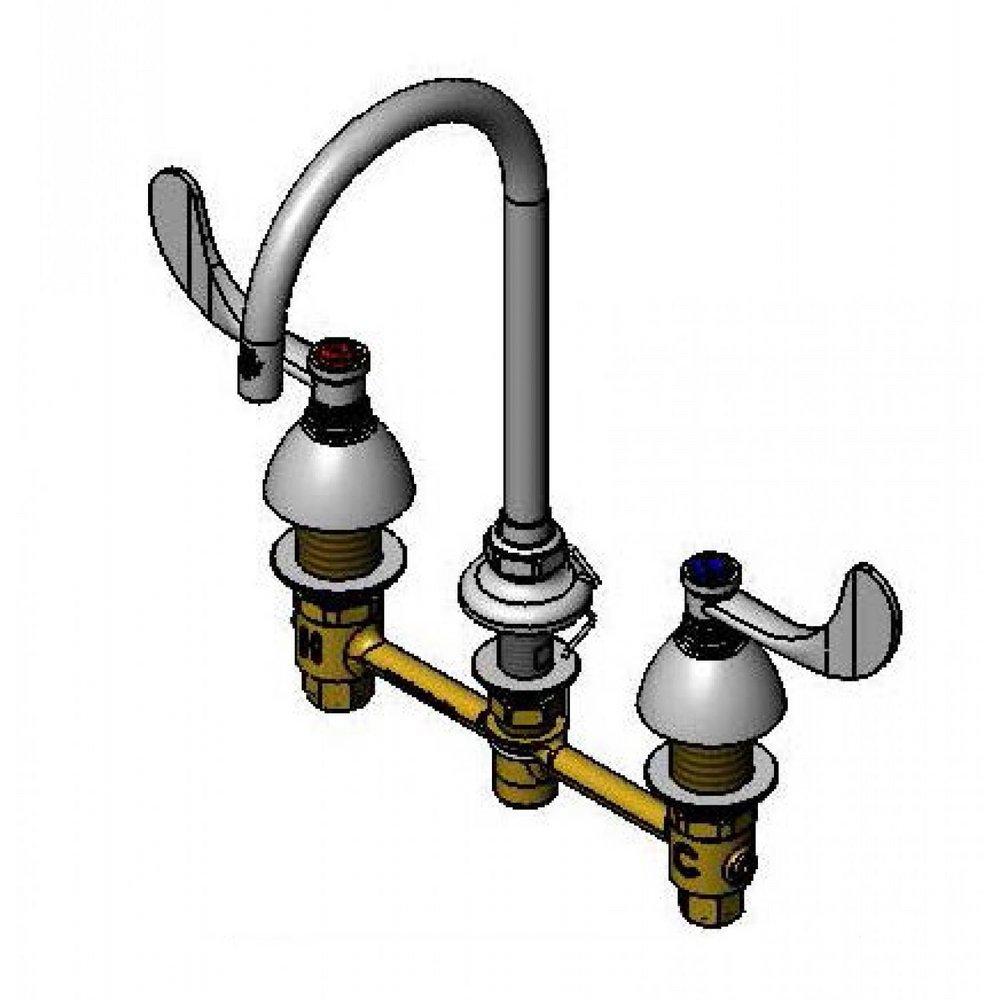

Concealed Widespread Faucet, 8" Centers, 133XP-F15 Swivel Gooseneck, 1.5 GPM Flow Control

You last purchased this on

T&S Brass

Concealed Widespread Faucet, 8" Centers, 133XP-F15 Swivel Gooseneck, 1.5 GPM Flow Control

This product requires certification to purchase.
Brand image
Concealed Widespread Faucet, 8" Centers, 133XP-F15 Swivel Gooseneck, 1.5 GPM Flow Control
You last purchased this on

T&S Brass

Concealed Widespread Faucet, 8" Centers, 133XP-F15 Swivel Gooseneck, 1.5 GPM Flow Control

  • Fast #
  • Part #TB-2866-05FC15
  • Item #7803392
  • Manufacturer Part #B-2866-05FC15
5 out of 5 Customer Rating
This product requires certification to purchase.
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

  • 5 11/16" swivel/rigid gooseneck
  • Lock washer provided for rigid application
  • 8" Easy Install concealed deck mount mixing faucet with forged brass body
  • 1/2" NPT male inlets with coupling nuts
  • Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
  • 4" wrist action handles with color coded indexes
  • Plain end outlet
  • 1/2" NPT female eccentric inlets with 2" flanges
  • Requires Certification

  • Lead Law Compliant

  • ADA Compliant

Specifications

ADA Compliant:
Yes
ANSI:
ANSI 61
ASME:
ASME A112.18.1
Application:
Commercial
BAA Compliant:
No
Built-in Stops:
No
CARB OTC LEED Compliant:
No
CSA Certified:
CSA B125.1
Cartridge Type:
Compression
Color Finish Category:
Chromes
Color Finish Name:
Polished Chrome
Depth:
5-86/125 in
Faucet Center Size:
8 in
Faucet Connection:
NPSM, MNPSM
Faucet Connection Size:
1/2 in
Faucet Height:
10-11/16 in
Faucet Material:
Brass
Faucet Mount:
Deck Mount
Flow Rate:
1.5 gpm
GSA Approved:
No
Handle Included:
Yes
Handle Length (in):
4 in
Handle Material:
Metal
Handle Type:
Wristblade
Height:
10-11/16 in
IAPMO Listed -:
No
ISO:
ISO 9001
Institutional Faucet Type:
Healthcare
Lead Law Compliance Level:
Lead Free and Lead Leaching Compliant
Lead Law Compliant:
Yes
Maximum Deck Thickness:
1-1/4 in
Maximum Temperature:
140
Minimum Temperature:
40
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Number of Handles:
Two Handle
Number of Holes:
3 Hole
Origin:
Domestic
Pressure - Maximum:
125 psi
Spout Height:
6-5/8 in
Spout Reach:
5-11/16 in
Spout Swivel:
180°
Spout Type:
Swivel, High Arc
Temperature Range:
40 to 140 Deg F
Type:
TB-2866-05FC15
UL Listed:
No
Vandal Resistant:
No
WaterSense Labeled:
No
Weight:
6.05 lb
Width:
16 in
