Pre-Rinse: Overhead Swivel Arm, 8" Wall Mount Base, Low Flow Spray Valve, Wall Bracket

You last purchased this on

T&S Brass

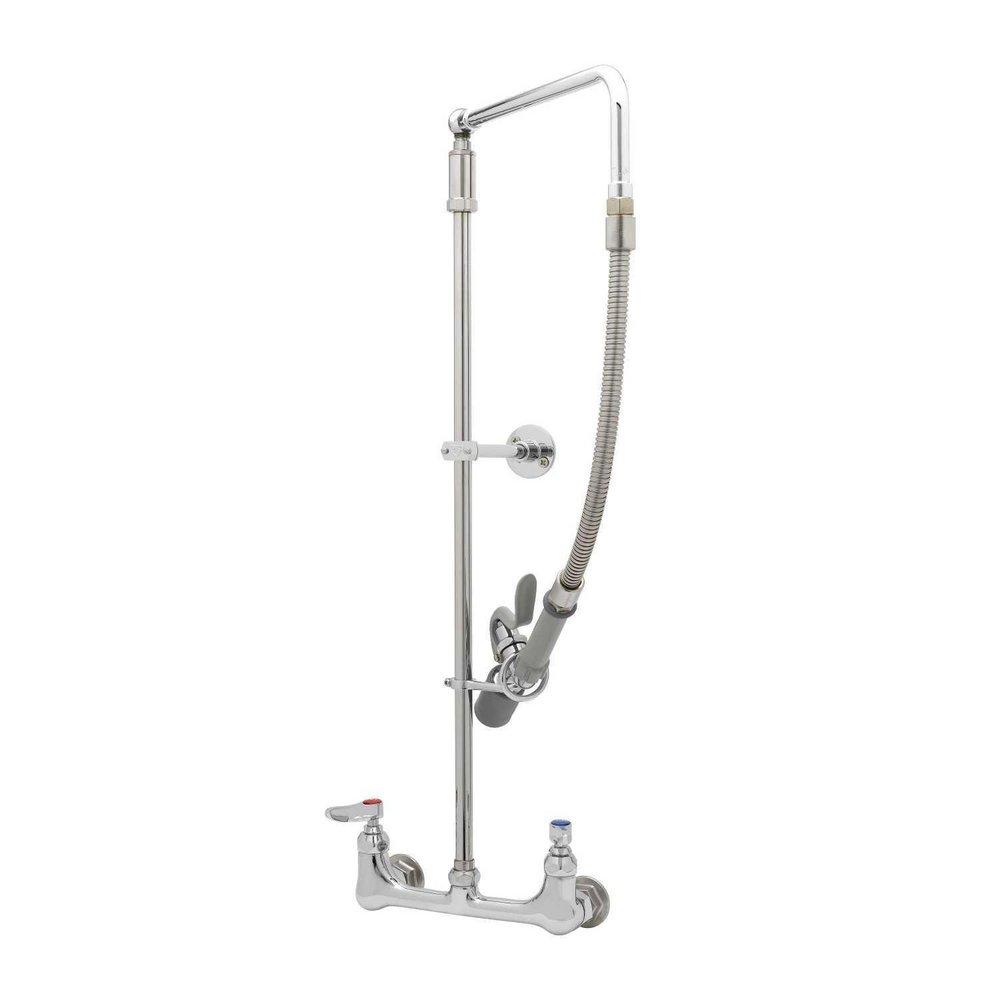

L-Cube Pre-Rinse: Overhead Swivel Arm, 8" Wall Mount Base, Low Flow Spray Valve, Wall Bracket

This product requires certification to purchase.
Brand image
T&S Brass Chrome California Energy Commission Registered Lead Law Compliant PRE-RINSE OVERHEAD SWIVEL ARM 8 WALL MOUNT BASE LOW FLOW SPRAY VALVE WALL BRACKET
You last purchased this on

T&S Brass

L-Cube Pre-Rinse: Overhead Swivel Arm, 8" Wall Mount Base, Low Flow Spray Valve, Wall Bracket

  • Fast #
  • Part #TB0131BC
  • Item #7174852
  • Manufacturer Part #B-0131-BC
4.1 out of 5 Customer Rating
This product requires certification to purchase.
X Points
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • 26" Easy Install riser w/ overhead swivel arm
  • 20" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
  • 8" wall mount polished chrome plated brass body
  • Adjustable centers from 7 3/4" to 8 1/4"
  • Lever handles w/ color coded indexes
  • 1/2" NPT female eccentric inlets with 2" flanges
  • Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
  • 0.65 GPM low flow spray valve
  • Material: Polished chrome plated brass body, riser, swivel arm & spray valve body, stainless steel hose and chrome plated metal handles
  • 6" adjustable wall bracket
  • Requires Certification

  • Lead Law Compliant

  • ADA Compliant

Recommended Accessories

Specifications

ADA Compliant:
Yes
ANSI:
ANSI 61, ANSI 372
ASME:
ASME A112.18.1
ASTM:
ASTM F2324
Adjustable:
Yes
Application:
Commercial
BAA Compliant:
Yes
CEC Compliant:
For Sale in CA
CSA Certified:
CSA B125.1
Cartridge Type:
Compression
Coating:
Chrome Plated
Collection:
L-Cube
Color Finish Category:
Chromes
Color Finish Name:
Chrome
Faucet Center Size:
8 in
Faucet Mount:
Wall Mount
Faucet Valve Type:
Compression
Flow Rate:
0.65 gpm
Handle Type:
Lever
Height:
23 in
IAPMO Listed -:
No
ISO:
ISO 9001
Installation Type:
Wall Mount, Floor Standing
Lead Law Compliance Level:
Lead Free and Lead Leaching Compliant
Lead Law Compliant:
Yes
Material:
Brass, Stainless Steel, Metal
Maximum Temperature:
140
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Origin:
Domestic
Overall Width:
18-1/8 in
Pressure - Maximum:
125 psi
Shape:
Rectangular
Side Spray:
No
Temperature Range:
40 to 140 Deg F
Type:
TB0131BC
UL Listed:
No
WaterSense Labeled:
No
Weight:
11.4 lb
