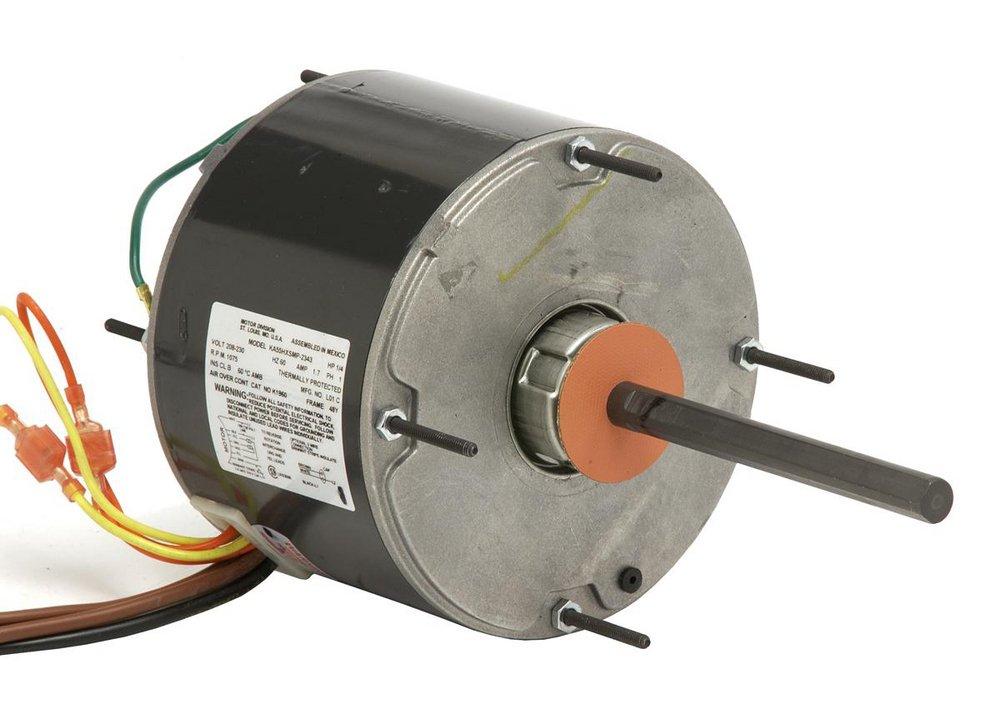

1/12 hp 1100 RPM 208/230V Condenser Motor
US Motors
1/12 hp 1100 RPM 208/230V Condenser Motor
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 156
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
US Motors
1/12 hp 1100 RPM 208/230V Condenser Motor
3401
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Condenser fan motor
- Counterclockwise lead end
- Class B insulation
- Self-aligning ball bearing
- Stud/band mount
- Automatic reset thermal overload protector
Documents
Specifications
- AMP:
- 0.7
- Diameter:
- 5-3/5 in
- Frame Size:
- 48
- Horsepower:
- 1/12 hp
- Length:
- 5-71/100 in
- Material:
- Steel
- Maximum Temperature:
- 40
- Motor Enclosure:
- Totally Enclosed Air Over (TEAO)
- Phase:
- Single Phase
- Product Type:
- Direct Drive
- RPM:
- 1100
- RPM Range:
- 900-1150
- Temperature Range:
- -29 to 40 Deg C
- UL Listed:
- Yes
- UPC:
- 786382003272
- Volts:
- 208/230V
