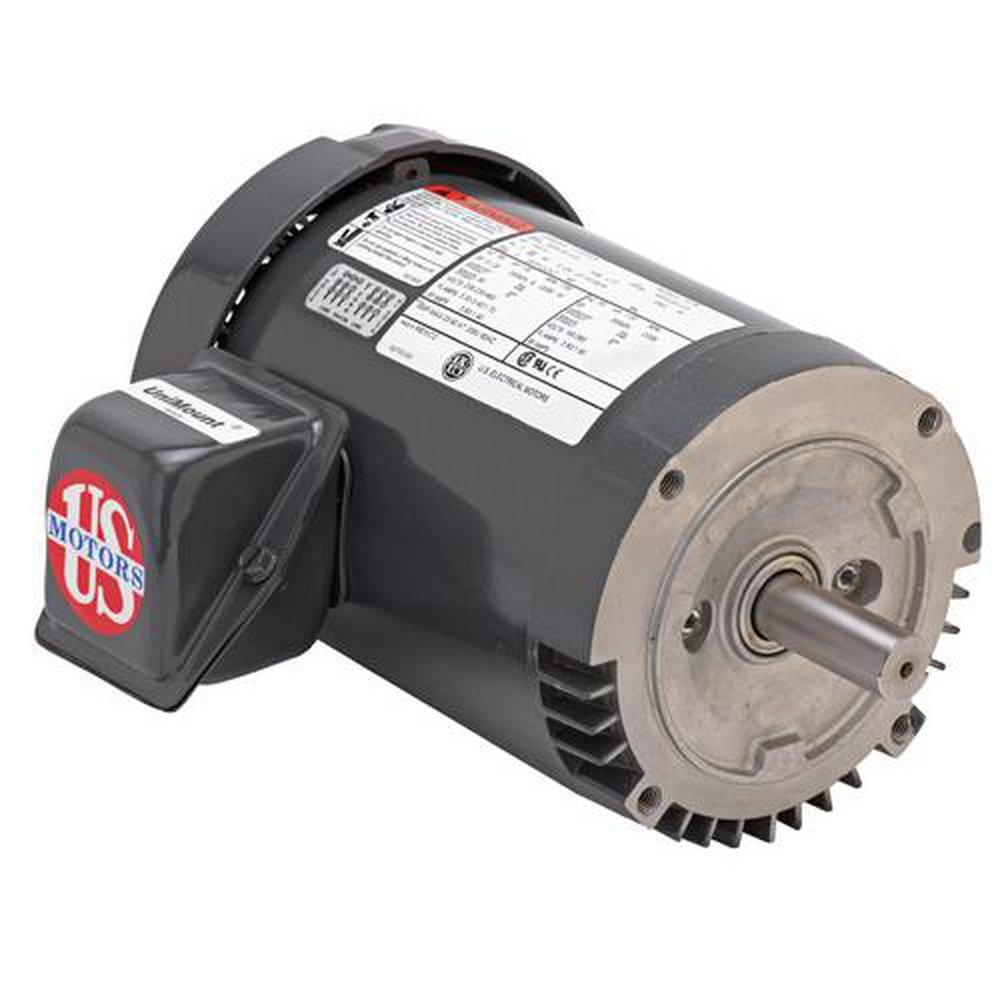

1/2 HP 1745 RPM U12S2ACR 208-230/460 V 60 HZ 56C
US Motors
1/2 HP 1745 RPM U12S2ACR 208-230/460 V 60 HZ 56C
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 18
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in TX
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in TX
Purchase history
US Motors
1/2 HP 1745 RPM U12S2ACR 208-230/460 V 60 HZ 56C
U12S2ACR
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
- Shaft Slinger On Pulley End
- Full 50 & 60 Hertz Operating Data on Nameplate (03)
- Full HP @ 50 Hertz
- Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
- Suitable for Wye-Delta Start 250 Frame & Larger
- Conversion Kits: C&D Flanges, Drip Cover and Brakes (140 Frame and Up)
Specifications
- AMP:
- 1.8, 1.7, 0.9
- Diameter:
- 6-3/10
- Fan Speeds:
- 1
- Horsepower:
- 1/2 hp
- Length:
- 15-1/2
- Material:
- Steel
- Motor Enclosure:
- Totally Enclosed Fan-Cooled (TEFC)
- Origin:
- Global
- Phase:
- Three Phase
- Product Type:
- Motor
- RPM:
- 1745
- RPM Range:
- 1400 and Above
- Shaft Length:
- 2-3/50
- Shaft Size:
- 5/8
- Temperature Range:
- -29 to 40 Deg C
- Type:
- USMU12S2ACR
- UL Listed:
- No
- UPC:
- 786382041779
- Volts:
- 208-230/460V
