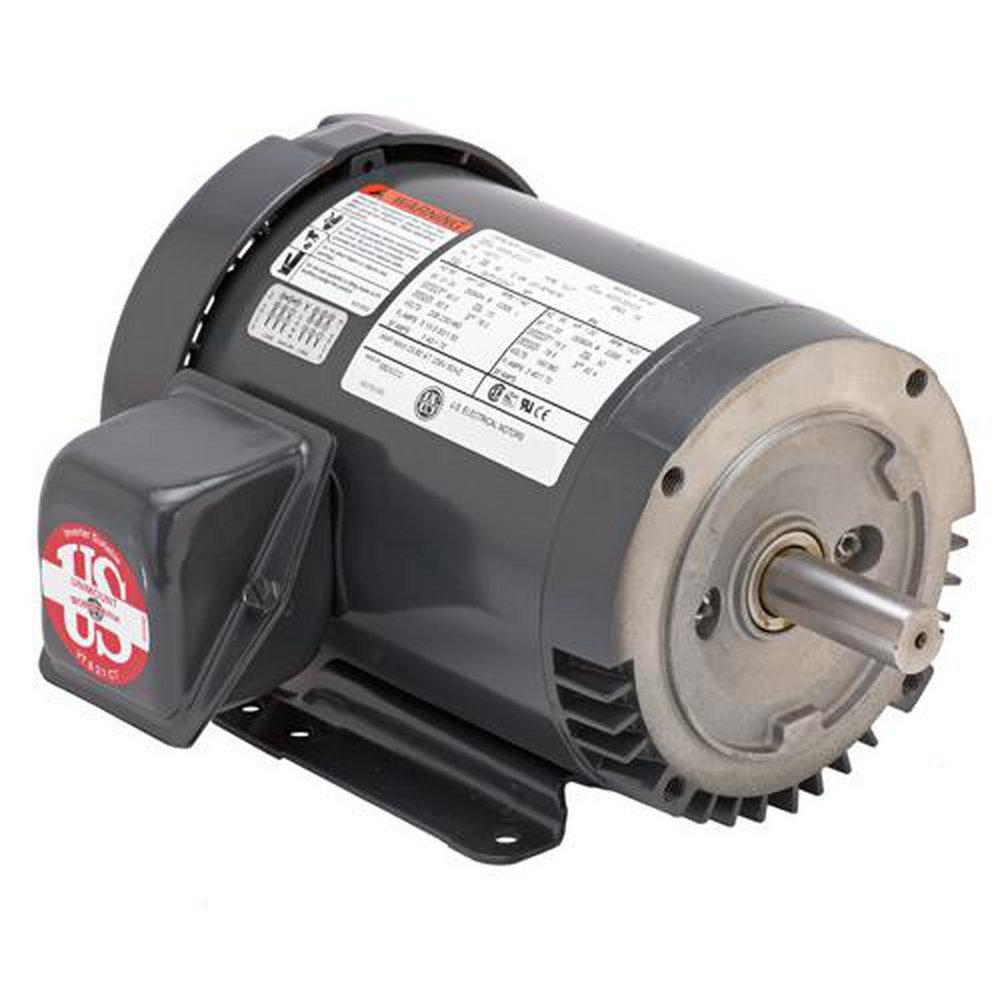

1/3 HP 1745 RPM U13S2AC 208-230/460 & 190/380 V 60 & 50 HZ 56C
US Motors
1/3 HP 1745 RPM U13S2AC 208-230/460 & 190/380 V 60 & 50 HZ 56C
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 48
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in OH
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in OH
Purchase history
US Motors
1/3 HP 1745 RPM U13S2AC 208-230/460 & 190/380 V 60 & 50 HZ 56C
U13S2AC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
- Shaft Slinger On Pulley End
- Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Specifications
- AMP:
- 1.4, 1.5, 0.7
- Diameter:
- 6-3/10
- Fan Speeds:
- 1
- Horsepower:
- 1/3 hp
- Length:
- 15-1/2
- Material:
- Steel
- Motor Enclosure:
- Totally Enclosed
- Origin:
- Global
- Phase:
- Three Phase
- Product Type:
- Motor
- RPM:
- 1745
- RPM Range:
- 1400 and Above
- Shaft Length:
- 2-3/50
- Shaft Size:
- 5/8
- Temperature Range:
- -29 to 40 Deg C
- Type:
- USMU13S2AC
- UL Listed:
- No
- UPC:
- 786382041847
- Volts:
- 208-230/460V, 190/380V
