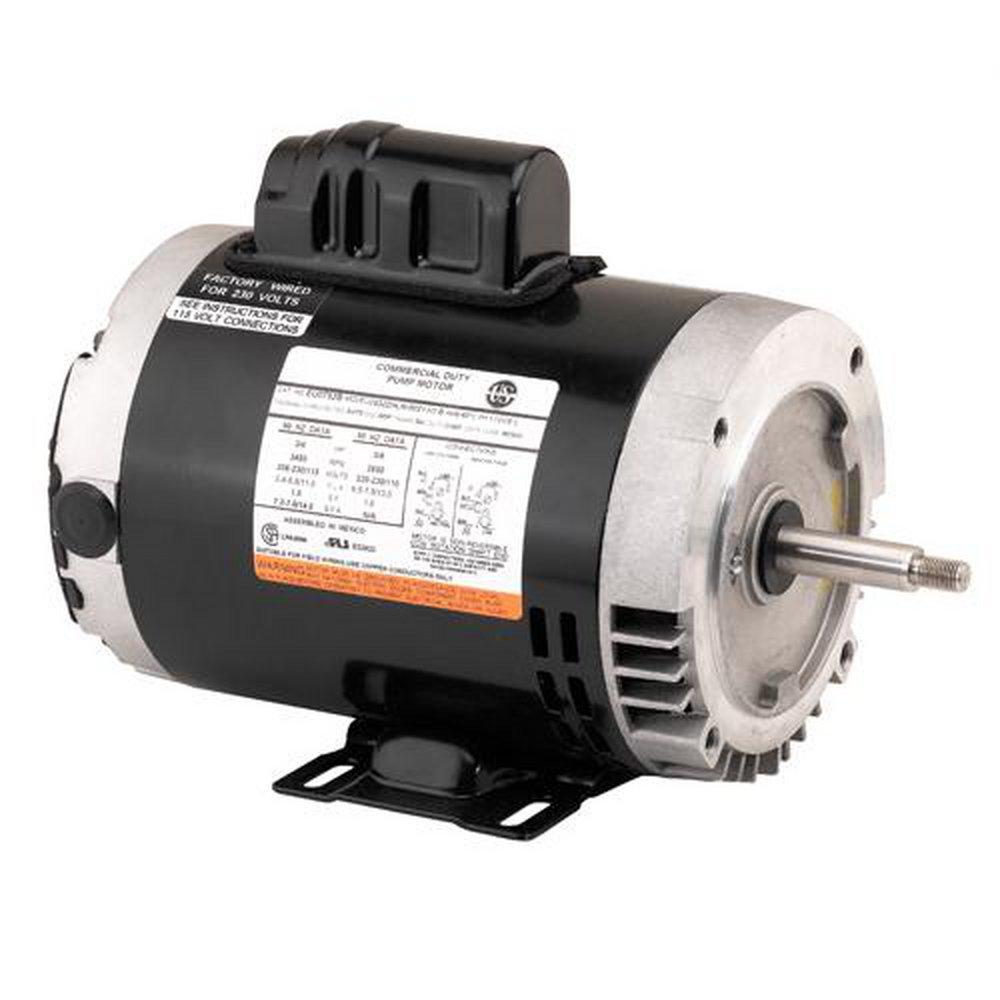

1/3 HP 3450 & 2850 RPM EU0332 115/208-230 & 110/220 V 60 & 50 HZ 56J
US Motors
1/3 HP 3450 & 2850 RPM EU0332 115/208-230 & 110/220 V 60 & 50 HZ 56J
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 60
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in OH
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in OH
Purchase history
US Motors
1/3 HP 3450 & 2850 RPM EU0332 115/208-230 & 110/220 V 60 & 50 HZ 56J
EU0332
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Double Sealed Ball Bearings - Locked Drive End Bearing
- 50/60 Hertz Motors have 1.0 Service Factor on 50 Hertz
- Class B Insulation
- Continuous Duty
- F1 Assembly
- Reversible Rotation
- Shaft Threads for 56J Mount: 7/16-20 UNC-2A
Specifications
- AMP:
- 6.2, 2.9, 3.1
- CSA Certified:
- Yes
- Diameter:
- 6-3/10
- Fan Speeds:
- 1
- Horsepower:
- 1/3 hp
- Length:
- 15-8/25
- Material:
- Steel
- Motor Enclosure:
- Open Drip Proof (ODP)
- Origin:
- Global
- Phase:
- Single Phase
- Product Type:
- Motor
- RPM:
- 3450
- RPM Range:
- 1400 and Above
- Shaft Length:
- 1-7/8
- Shaft Size:
- 5/8
- Temperature Range:
- -29 to 40 Deg C
- Type:
- USMEU0332
- UL Listed:
- No
- UPC:
- 786382053888
- Volts:
- 115/208-230V, 110/220V
- Weight:
- 18
