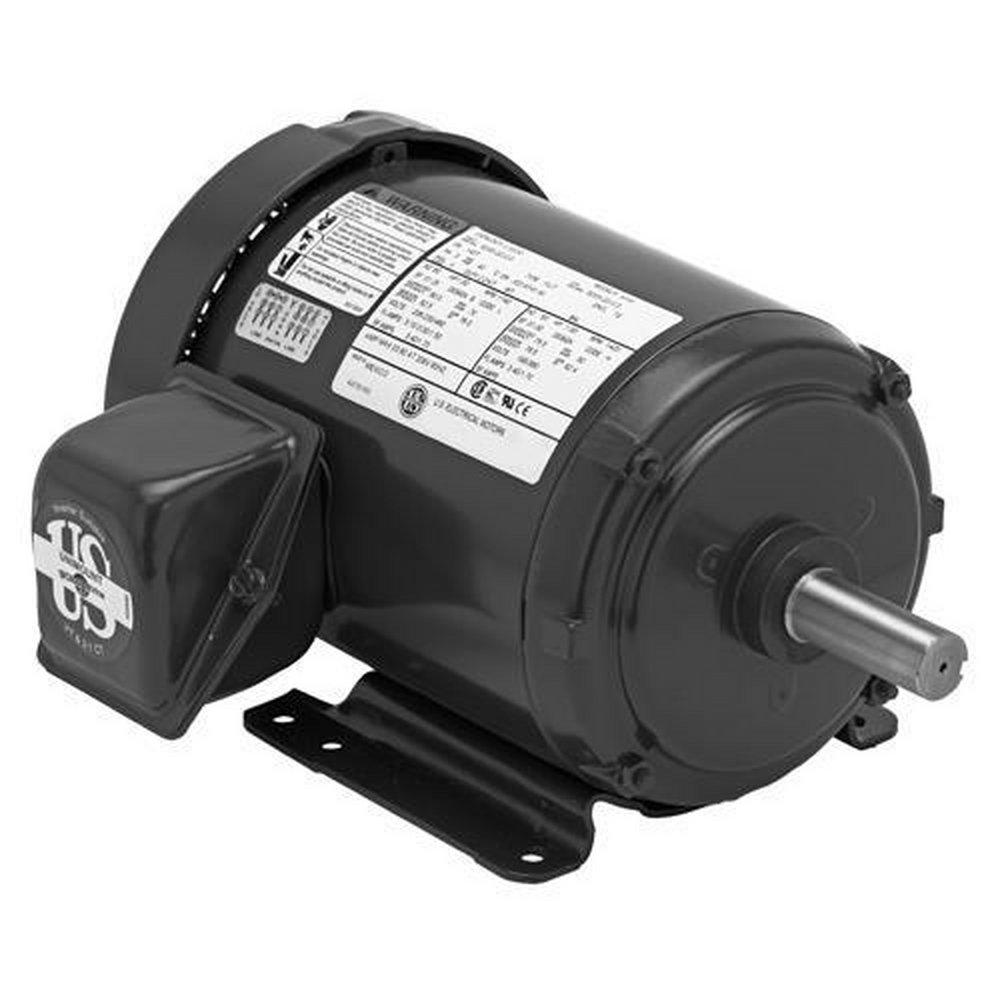

1/4 HP 1140 RPM T14S3A 208-230/460 V 60 HZ 56
US Motors
1/4 HP 1140 RPM T14S3A 208-230/460 V 60 HZ 56
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 28
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in OH
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in OH
Purchase history
US Motors
1/4 HP 1140 RPM T14S3A 208-230/460 V 60 HZ 56
T14S3A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
- Shaft Slinger On Pulley End
- Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Specifications
- AMP:
- 1.4, 1.5, 0.76
- Diameter:
- 6-3/10
- Fan Speeds:
- 1
- Frame Size:
- 56
- Horsepower:
- 1/4 hp
- Length:
- 18-1/2
- Material:
- Steel
- Motor Enclosure:
- Totally Enclosed Fan-Cooled (TEFC)
- Origin:
- Global
- Phase:
- Three Phase
- Product Type:
- Motor
- RPM:
- 1140
- RPM Range:
- 900-1150
- Shaft Length:
- 1-7/8
- Shaft Size:
- 5/8
- Temperature Range:
- -29 to 40 Deg C
- Type:
- USMT14S3A
- UL Listed:
- No
- UPC:
- 786382082666
- Volts:
- 208-230/460V
