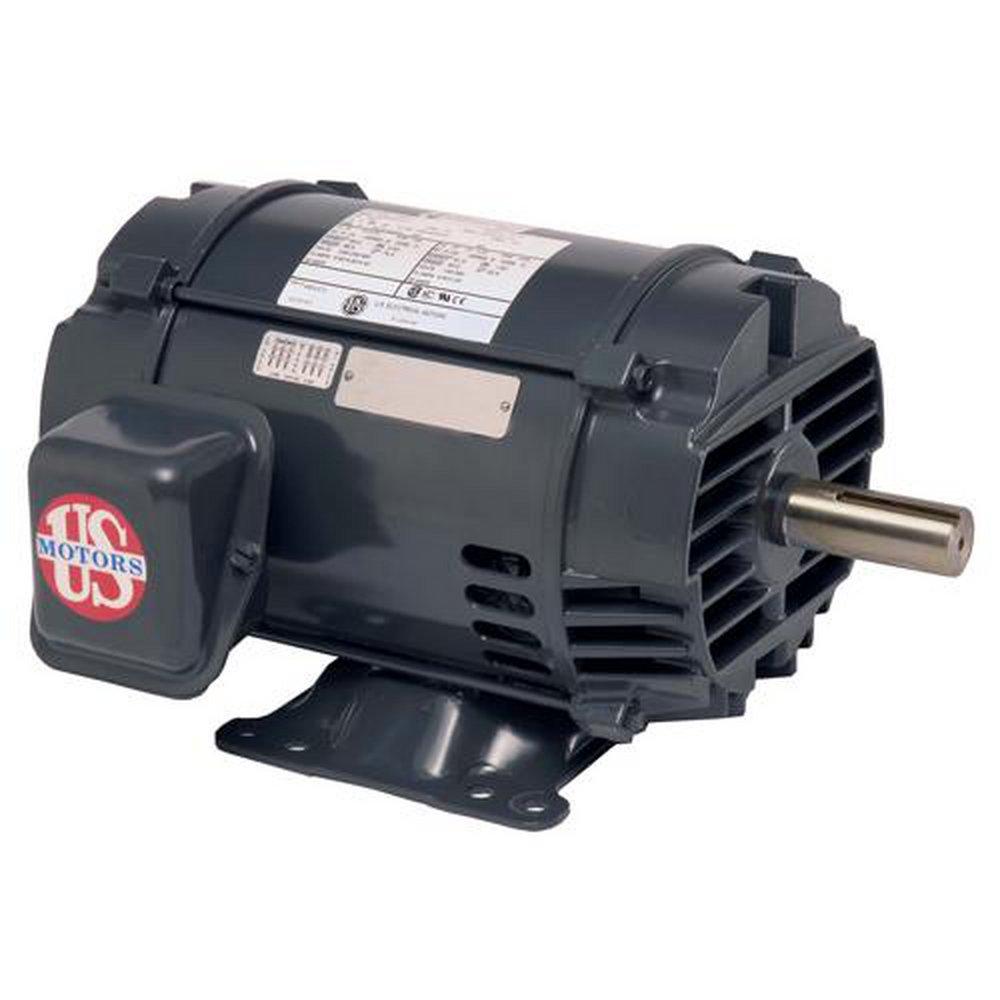

20 HP 3540 & 2920 RPM D20P1D 208-230/460 & 190/380 V 60 & 50 HZ 254T
US Motors
20 HP 3540 & 2920 RPM D20P1D 208-230/460 & 190/380 V 60 & 50 HZ 254T
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 4
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
US Motors
20 HP 3540 & 2920 RPM D20P1D 208-230/460 & 190/380 V 60 & 50 HZ 254T
D20P1D
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Class F Insulation, Class B Rise At Service Factor
- 1.15 Service Factor
- Reversible Rotation
- Regreasable Bearings 210 Frame & Up
- Double Shielded Bearings 140-400, Open on 440
- Bearing Caps On 400 & 440 Frames
- F1 Assembly Position except where noted
- Lifting Provisions 180 Frame & Up
- Conversion Kits: Drip Cover Kits (140-320 Frame)
Specifications
- AMP:
- 52, 46, 23.1
- Diameter:
- 13-47/100 in
- Horsepower:
- 20 hp
- Length:
- 29-1/2 in
- Material:
- Steel
- Motor Enclosure:
- Open Drip Proof (ODP)
- Origin:
- Global
- Phase:
- Three Phase
- Product Type:
- Motor
- RPM:
- 3540
- RPM Range:
- 1400 and Above
- Shaft Size:
- 1-5/8 in
- Temperature Range:
- -29 to 40 Deg C
- UL Listed:
- No
- UPC:
- 786382095031
- Volts:
- 208-230/460V, 190/380V
