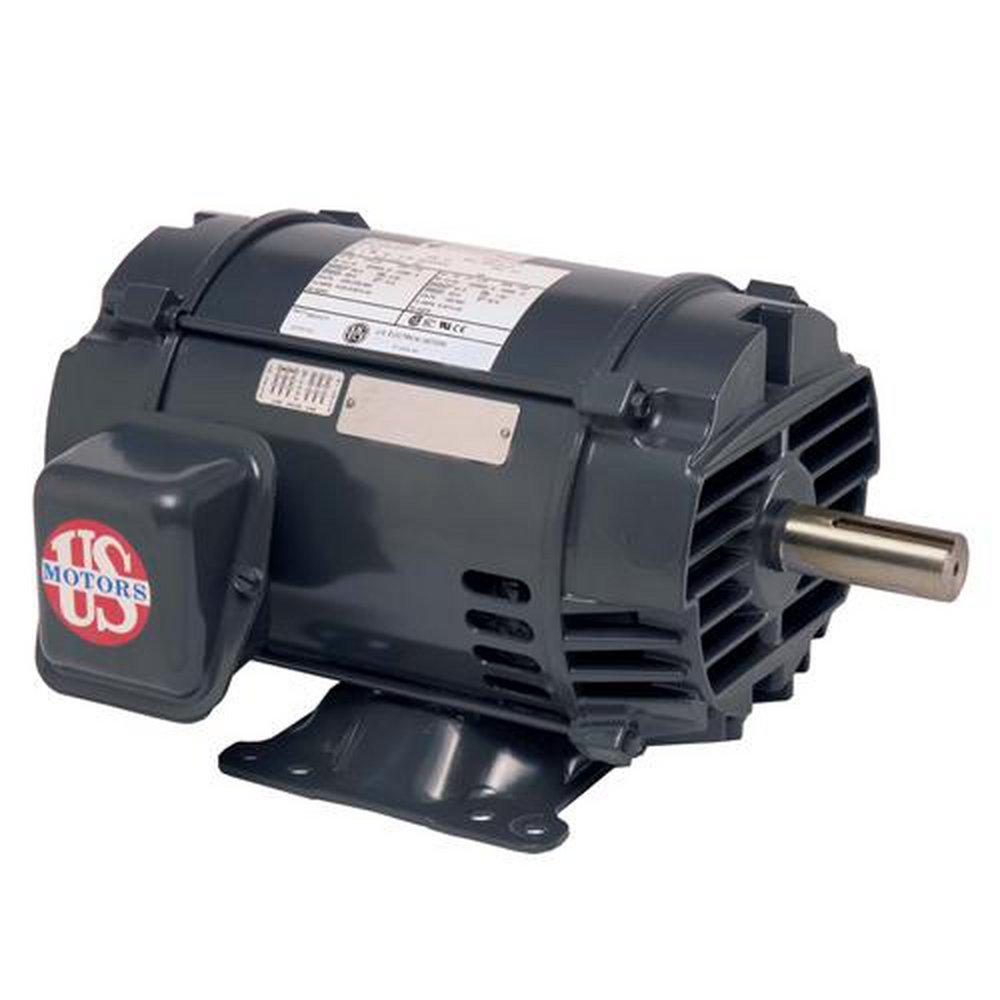

200 & 150 HP 1780 RPM FF200E2CS 460 V 60 & 50 HZ 445TS
US Motors
200 & 150 HP 1780 RPM FF200E2CS 460 V 60 & 50 HZ 445TS
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
US Motors
200 & 150 HP 1780 RPM FF200E2CS 460 V 60 & 50 HZ 445TS
FF200E2CS
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Class F Insulation, Class B Rise At Service Factor
- Premasked Mylar Nameplate 250-320, Stainless Steel 360-440 Frame
- Regreasable Bearings 180 Frame & Larger
- Double Shielded Bearings 250-400, Open On 440 Frame
- Lifting Provisions 210 Frame & Larger
- Suitable For Wye-Delta Start 250 Frame & Larger
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
- Oversized Connection Diagram On Nameplate
Specifications
- AMP:
- 241
- Diameter:
- 22-97/100 in
- Fan Speeds:
- 1
- Horsepower:
- 200 hp
- Length:
- 54 in
- Material:
- Cast Iron
- Motor Enclosure:
- Open Drip Proof (ODP)
- Origin:
- Global
- Phase:
- Three Phase
- Product Type:
- Motor
- RPM:
- 1780
- RPM Range:
- 1400 and Above
- Shaft Length:
- 4-3/4 in
- Shaft Size:
- 2-3/8 in
- Temperature Range:
- -29 to 40 Deg C
- UL Listed:
- Yes
- UPC:
- 786382026417
- Volts:
- 460V
