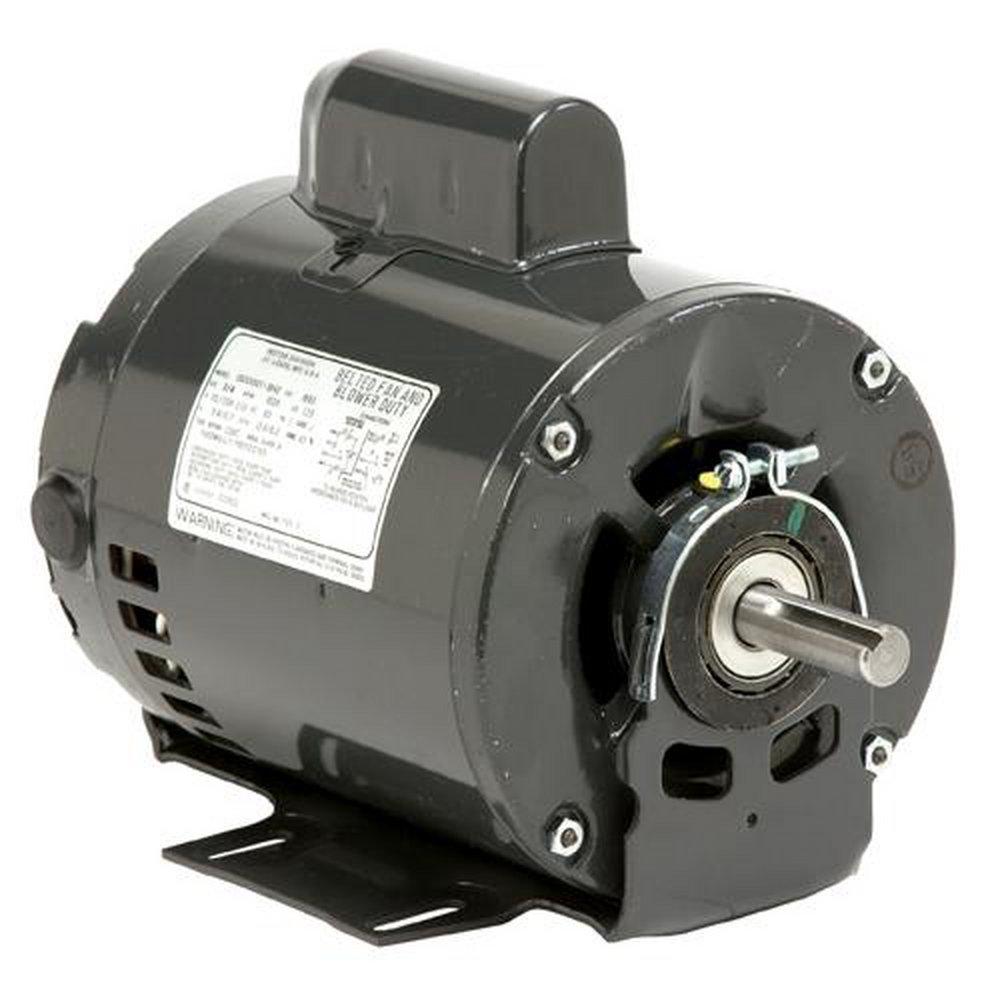

3/4 HP 1725 RPM 1660 115/230 V 60 HZ 56
US Motors
3/4 HP 1725 RPM 1660 115/230 V 60 HZ 56
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 60
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in NJ
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in NJ
Purchase history
US Motors
3/4 HP 1725 RPM 1660 115/230 V 60 HZ 56
1660
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Class A or B Insulation
- Reversible Rotation
- 60 Hertz
- Continuous Duty
Specifications
- AMP:
- 11.6, 5.8
- CSA Certified:
- Yes
- Diameter:
- 6-3/10
- Fan Speeds:
- 1
- Frame Size:
- 56
- Horsepower:
- 3/4 hp
- Length:
- 15-8/25
- Material:
- Steel
- Motor Enclosure:
- Open Drip Proof (ODP)
- Origin:
- Global
- Phase:
- Single Phase
- Product Type:
- Motor
- RPM:
- 1725
- RPM Range:
- 1400 and Above
- Shaft Length:
- 1-7/8
- Shaft Size:
- 5/8
- Temperature Range:
- -29 to 40 Deg C
- Type:
- USM1660
- UL Listed:
- No
- UPC:
- 786382001025
- Volts:
- 115/230V
- Weight:
- 28
