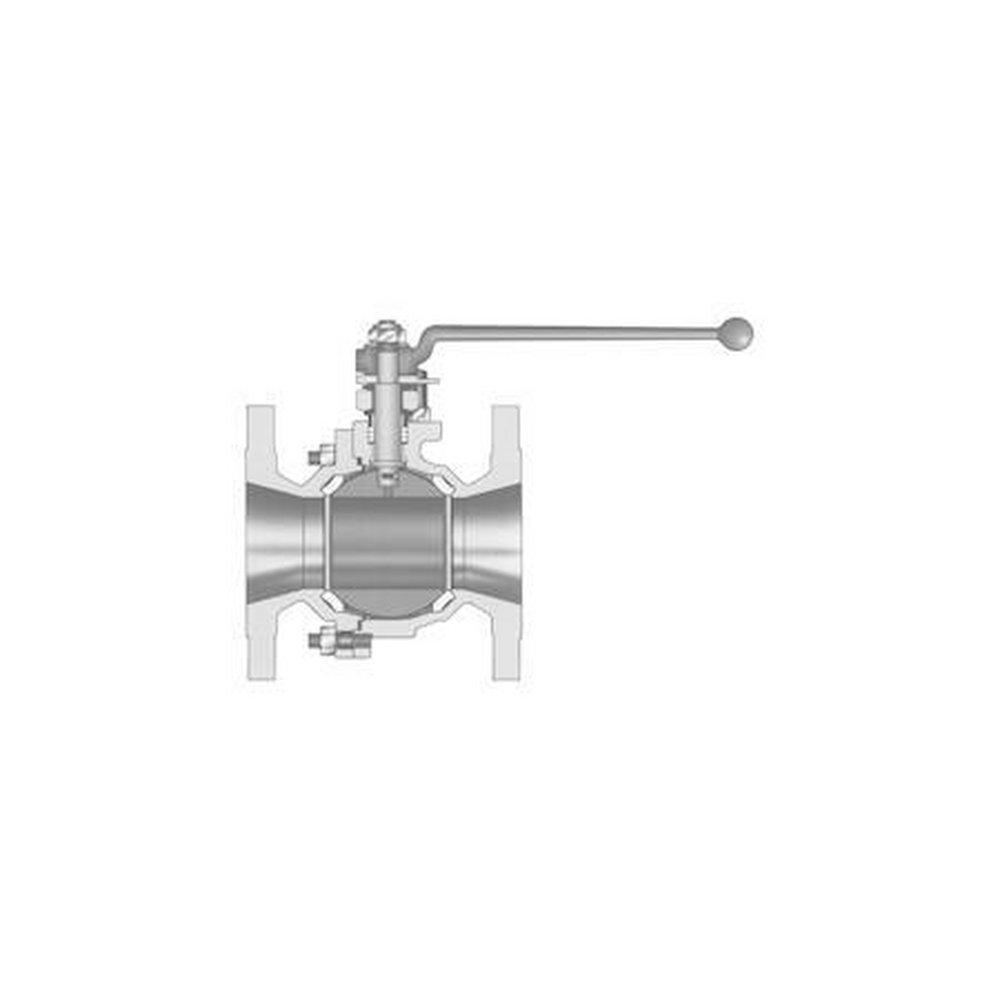

2 in. Carbon Steel Regular Port Flanged 150# Ball Valve
Velan Valve
2 in. Carbon Steel Regular Port Flanged 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 15 Pallet: 30
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Velan Valve
2 in. Carbon Steel Regular Port Flanged 150# Ball Valve
F08-00302-SSGAE
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Memoryseal in-tension seats automatically compensate for wear and fluctuations in temperature
- Fire tested in accordance with API 607, BS 6755 and API 6FA 3 (1/2 - 1 1/2") and 4-way (2 - 12") stem seal design for low fugitive emissions, TA-Luft certified for 2" and over ISO/CAPI standardized valve automation
- Flanged B165, 150 Class, Regular Port, One-Piece/Unibody, A105/WCB Body, 316 Ball & Stem, Glass Reinforced PTFE Seat, Standard Service
Documents
Specifications
- ANSI:
- ANSI Class 150
- ASME:
- ASME Class 150
- ASTM:
- ASTM A351 CF8M, ASTM A276 Type 316, ASTM D-4894, ASTM A-276 Type 304, ASTM A-193 Grade B8, ASTM A-193 Grade B8M
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Handle Type:
- Lever
- Material:
- Carbon Steel
- Material Type:
- A105
- Pressure Class:
- 150#
- Recommended Valve Application:
- Industrial
- Temperature Range:
- -20 to 450 Deg F (-29 to 232 Deg C)
- UL Listed:
- No
- Valve Body Style:
- 1 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Reinforced PTFE
- Valve Size:
- 2 in
- Valve Type:
- Ball Valve
