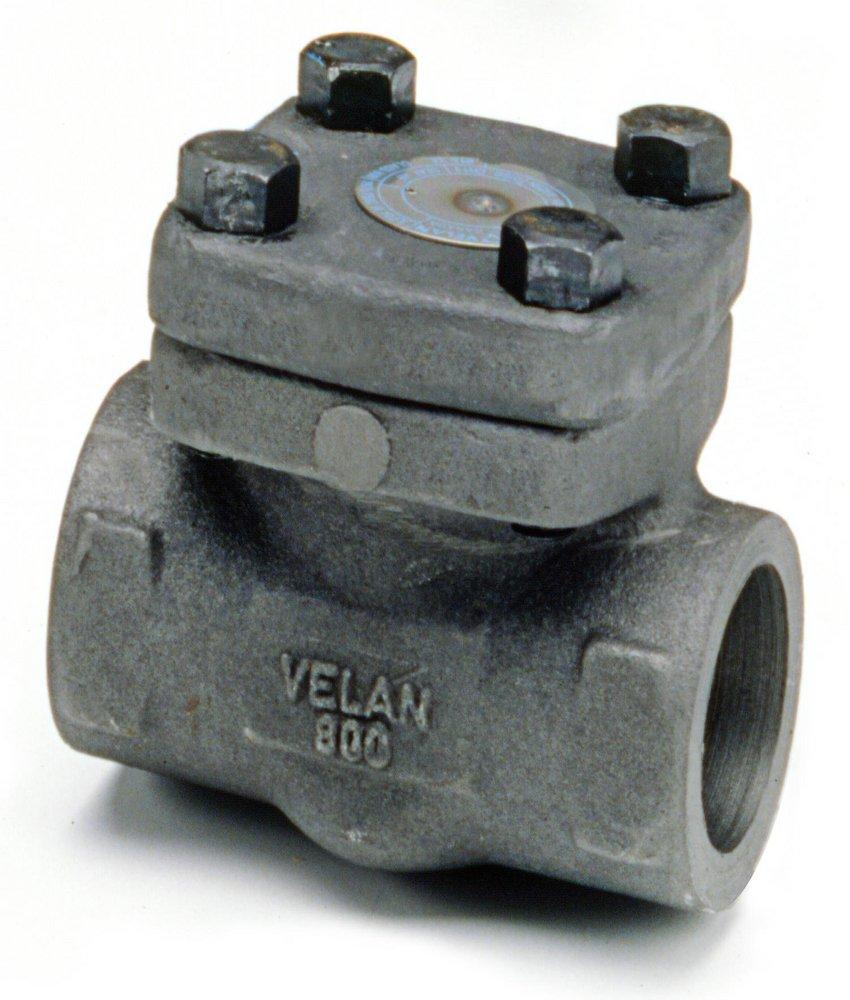

2in. 800# SW A105 T8 Piston Check Valve Reduced Port Bolted Cover, Spring Loaded, Forged Steel
Velan Valve
2034B 2in. 800# SW A105 T8 Piston Check Valve Reduced Port Bolted Cover, Spring Loaded, Forged Steel
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 70
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Velan Valve
2034B
2in. 800# SW A105 T8 Piston Check Valve Reduced Port Bolted Cover, Spring Loaded, Forged Steel
W082034B02TY
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- ASME Section IV certified capacity
- Corrosion resistant construction
- Diaphragm isolated spring chamber
- Extremely high capacity
- Directive 97/23/EC (PED) compliant option
- Made in the USA
- Sizes: 3/4" - 2" (20 - 50mm)
Documents
Specifications
- API:
- API 602
- ASME:
- ASME B16.34
- Collection:
- 2034B
- End Connection 1:
- Socket Weld
- End Connection 2:
- Socket Weld
- End Connections:
- Socket Weld
- FM Approved:
- No
- IAPMO Listed:
- No
- Material:
- Forged Steel, Stainless Steel, CoCr Alloy
- Material Type:
- CR 13
- NSF Certified:
- No
- Pressure - Maximum:
- 800 psi
- Pressure Class:
- 800#
- UL Listed:
- No
- Valve Body Material:
- Forged Steel
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- CR 13
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- CoCr Alloy
- Valve Size:
- 2 in
- Valve Type:
- Piston Check Valve
