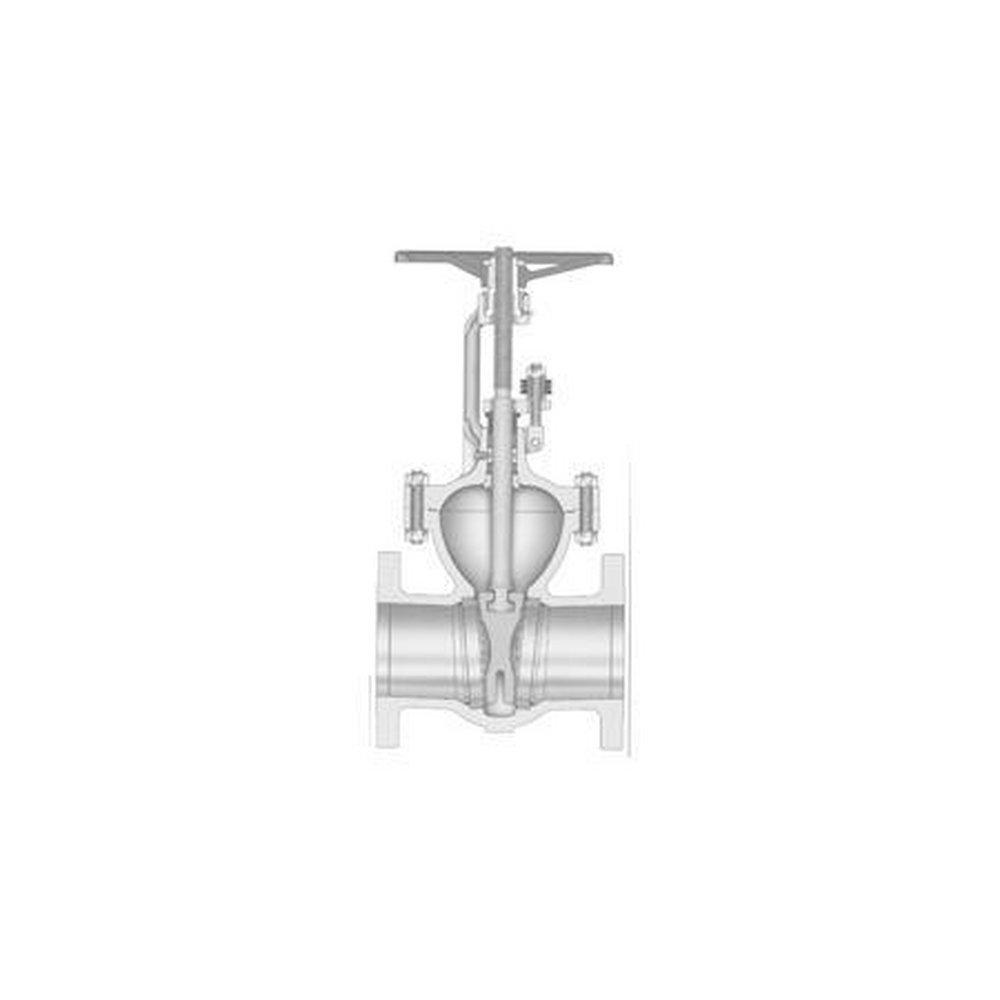

14 in. Carbon Steel Full Port Butt Weld Gate Valve
Velan Valve
Figure 0064C 14 in. Carbon Steel Full Port Butt Weld Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Velan Valve
Figure 0064C
14 in. Carbon Steel Full Port Butt Weld Gate Valve
B19-0064C-02TY
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Low emission design guaranteed for maximum 50 ppm emissions (valves tested to bubble-tight to 12")
- Flexible wedge design assures valve tightness on both seats in varying pressure and temperature conditions
- Seal-welded seat rings are leakproof, and Stellate 6 hard faced for long service life
- Butt weld, 150 class, full port gate, vertical, bolted bonnet (Cast), WCB body, wedge/disc surface: 13Cr (410 or CA15), seat surface: stellate 6, stem: 13Cr (410)
Documents
Specifications
- API:
- API 600
- ASME:
- ASME B16.34, ASME B16.10, ASME B16.5, ASME B16.25
- Collection:
- Figure 0064C
- End Connection 1:
- Butt Weld
- End Connection 2:
- Butt Weld
- End Connections:
- Butt Weld
- FM Approved:
- No
- Height:
- 61-1/2 in
- Length:
- 22-1/2 in
- Material:
- Carbon Steel, Stainless Steel
- Material Type:
- Stellite 6
- Maximum Temperature:
- 850
- NSF Certified:
- No
- Pressure Class:
- 150#
- Recommended Valve Application:
- Chemical, Petrochemical, Oil, Gas, Pulp and Paper
- UL Listed:
- No
- Valve Body Material:
- Carbon Steel
- Valve Body Style:
- Vertical
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Stainless Steel
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Stellite 6
- Valve Size:
- 14 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
