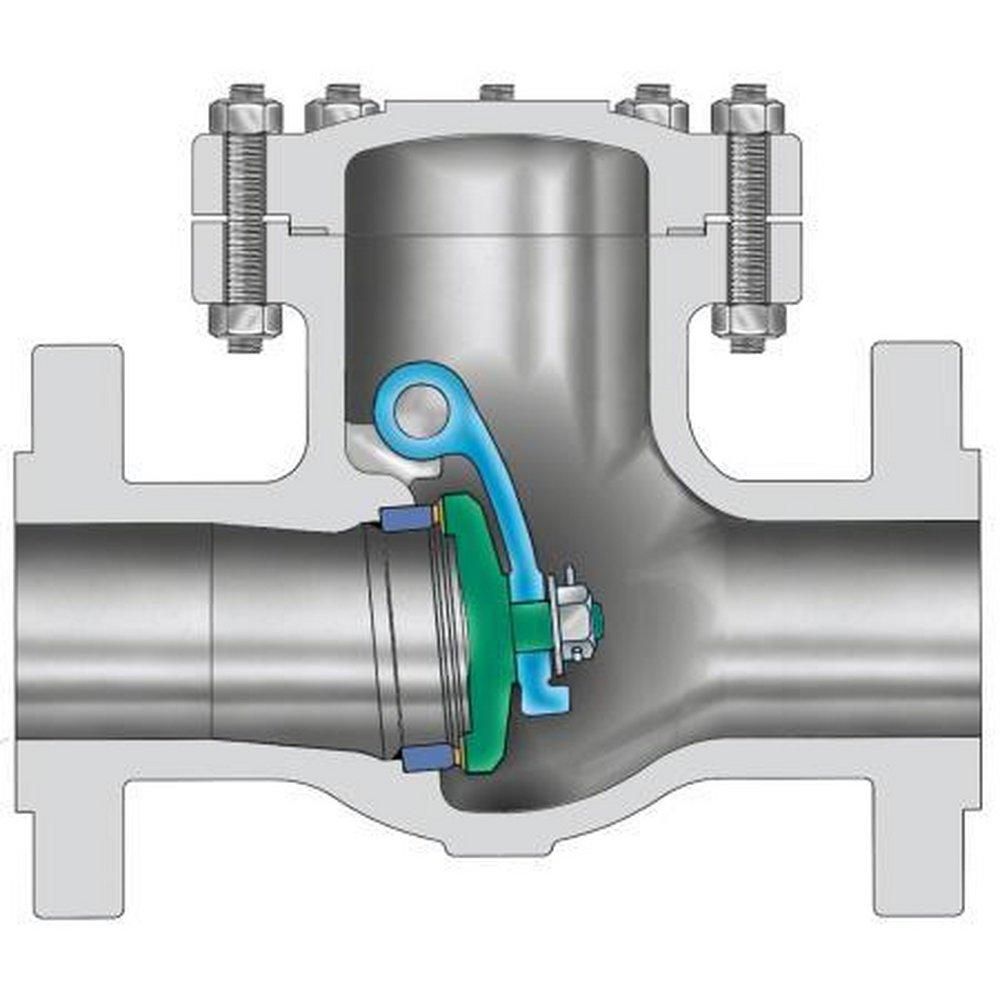

10 in. 150# RF FLG WCB T8 Swing Check Valve Carbon Steel Body, Trim 8, Bolted Cover F-0114C-02TY
Velan Valve
Figure 0114C 10 in. 150# RF FLG WCB T8 Swing Check Valve Carbon Steel Body, Trim 8, Bolted Cover F-0114C-02TY
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 2 Pallet: 10
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Velan Valve
Figure 0114C
10 in. 150# RF FLG WCB T8 Swing Check Valve Carbon Steel Body, Trim 8, Bolted Cover F-0114C-02TY
F16-0114C-02TY
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Low emission design guaranteed for maximum 50 ppm emissions Cage unit design with no penetration to the body prevents possibility of leakage with gasketed or packed hing pin and possibility of pin ejection
- Seal-welded seat rings are leakproof, and Stellite 6 hardfaced for long service life All parts accessible from the top for easy servicing
- Flanged B165, 150 class, swing check, vertical, bolted bonnet (Cast), WCB body, wedge/disc surface : 13Cr (410 or CA15), seat surface : stellite 6
Documents
Specifications
- API:
- API 603
- ASME:
- ASME B16.34, ASME B16.10, ASME B16.5, ASME B16.25
- Collection:
- Figure 0114C
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Height:
- 15-1/2 in
- Length:
- 24-1/2 in
- Material:
- Cast Carbon Steel
- Pressure Class:
- 150#
- Valve Body Material:
- Cast Carbon Steel
- Valve Body Style:
- Vertical
- Valve Bonnet Type:
- Bolted
- Valve Seat Material:
- CoCr Alloy
- Valve Size:
- 10 in
- Valve Type:
- Swing Check Valve
