3/4 in. 150# RF FLG CF8M T10 Swing Check Valve Cover Gasket PTFE with Stainless, ASME B16.34, Stainless Steel 316 Body, Trim 10, Bolted Cover F-0114C-13SX
You last purchased this on
Velan Valve
Figure 0114C 3/4 in. 150# RF FLG CF8M T10 Swing Check Valve Cover Gasket PTFE with Stainless, ASME B16.34, Stainless Steel 316 Body, Trim 10, Bolted Cover F-0114C-13SX
Log in or Create Account
Log in or Create an Account to see product availability.
-
Pick Up: Not available
-
Shipping: Not available
Purchase history
Velan Valve
Figure 0114C
3/4 in. 150# RF FLG CF8M T10 Swing Check Valve Cover Gasket PTFE with Stainless, ASME B16.34, Stainless Steel 316 Body, Trim 10, Bolted Cover F-0114C-13SX
F04-0114C-03SX
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
- Wall thickness to ASME B1634

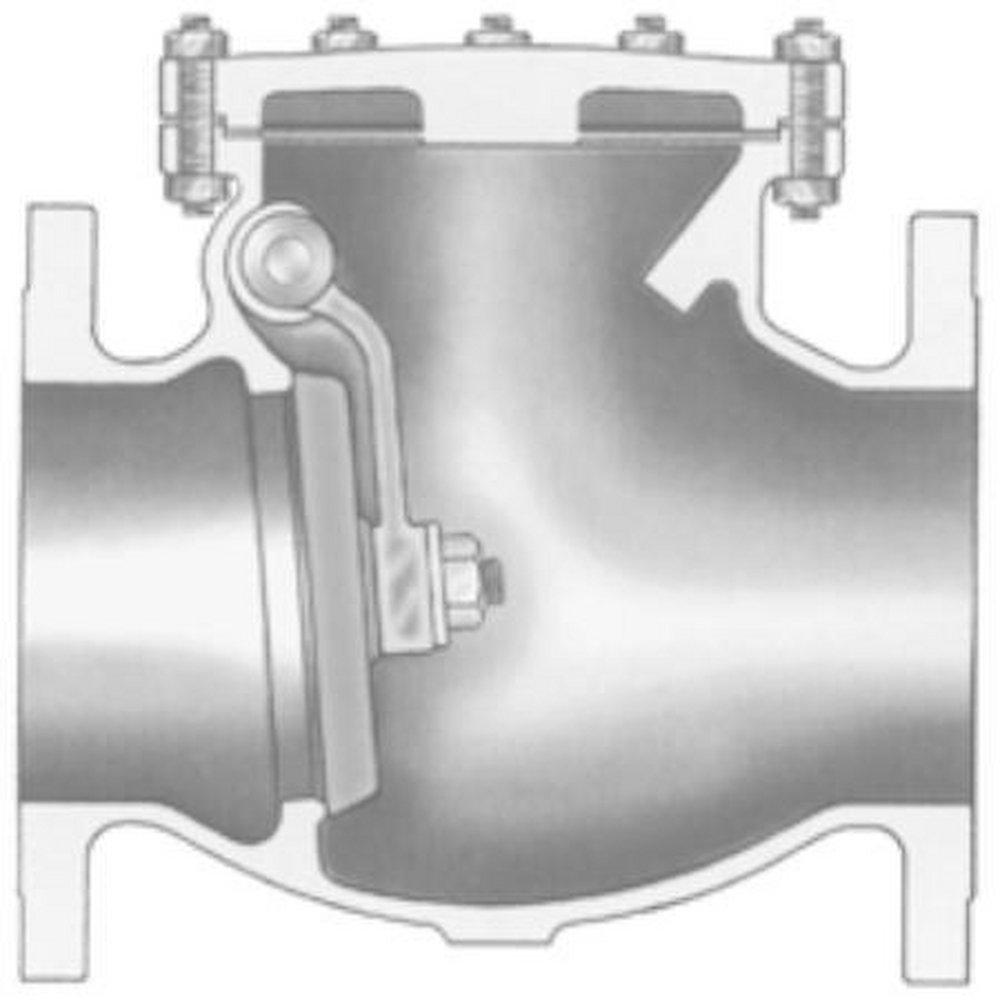

- Flanged B165, 150 Class, Swing Check, Vertical, Bolted Bonnet (Cast), CF8M Body, Wedge/Disc Surface: Same as body, Seat Surface: Integral
- Cast Stainless Steel construction to resist corrosion
- Optional integral CoCr alloy hard-faced seat available for longer service life
Documents
Specifications
- API:
- API 600, API 603
- ASME:
- ASME Class 150, ASME B16.34, ASME B16.10, ASME B16.5, ASME B16.25
- ASTM:
- ASTM A-351
- Collection:
- Figure 0114C
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- IAPMO Listed -:
- No
- Material:
- Stainless Steel, Carbon Steel, Cobalt-Chromium Alloy
- NSF Certified:
- No
- Pressure Class:
- 150#
- UL Listed:
- No
- Valve Body Material:
- Carbon Steel
- Valve Body Style:
- Swing Check
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Carbon Steel
- Valve Seat Material:
- CoCr Alloy
- Valve Size:
- 3/4 in
- Valve Type:
- Swing Check Valve
