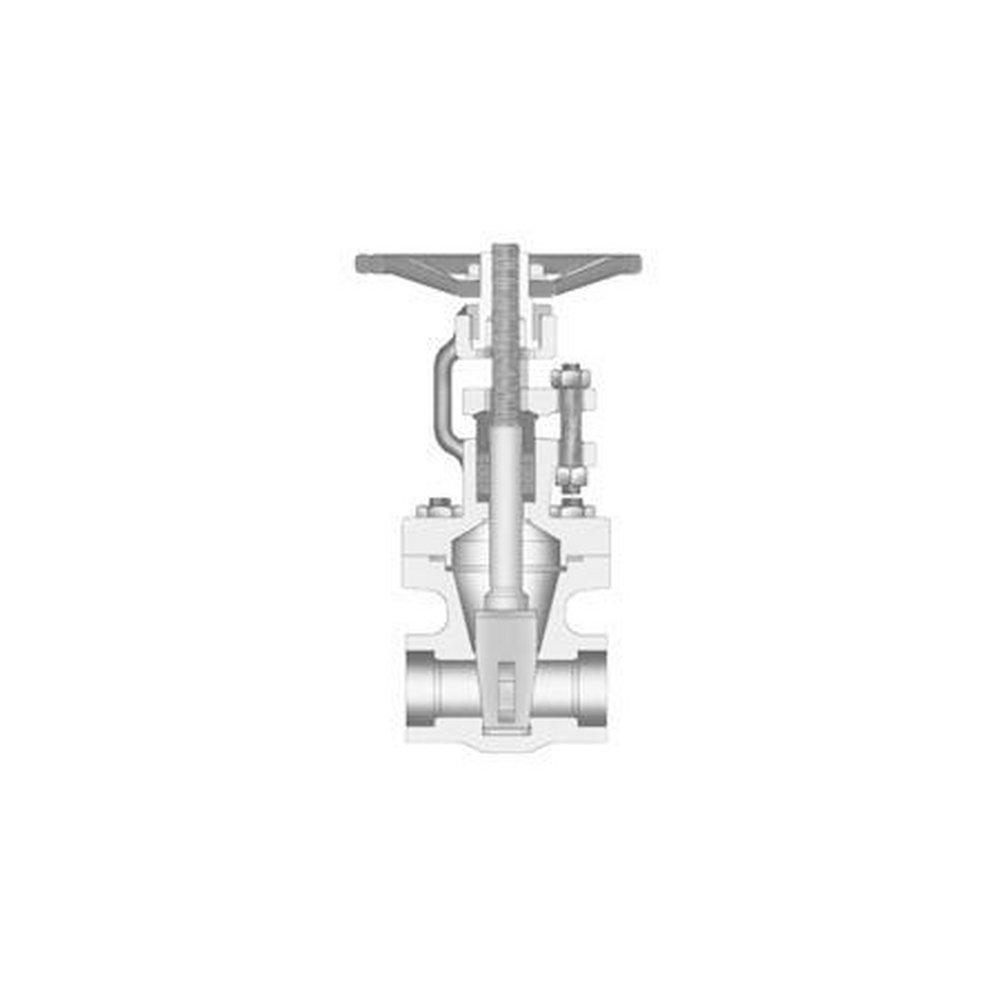

1 in. Stainless Steel Conventional Port Threaded Gate Valve
Velan Valve
Figure 2054B 1 in. Stainless Steel Conventional Port Threaded Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 5 Pallet: 65
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Velan Valve
Figure 2054B
1 in. Stainless Steel Conventional Port Threaded Gate Valve
S052054B13MY
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Compact, but extremely sturdy design for high pressure/temperature service
- Fully guided wedge ensures low friction and long service life
- Recompressed packing for a high integrity seal guaranteed to maximum 50ppm
- Repairable 2-piece stem drive for simplified maintenance
- Threaded, 800 Class, Conventional Port Gate, Vertical, Bolted Bonnet (Forged), F316 Body, Wedge/Disc Surface: CF8M, Seat Surface: Stellate 6, Stem: 316, Sour Service
Documents
Specifications
- API:
- API 602, API 603
- Collection:
- Figure 2054B
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- Height:
- 7-19/50 in
- Length:
- 3-1/2 in
- Material:
- Stainless Steel
- Material Type:
- Stellite 6
- Maximum Temperature:
- 100
- NSF Certified:
- No
- Pressure - High:
- 1975
- Pressure Class:
- 800#
- Recommended Valve Application:
- Chemical, Petrochemical, Oil, Gas, Pulp and Paper, Mining, Marine
- UL Listed:
- No
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Vertical
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Stellite 6
- Valve Size:
- 1 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
