10 in. Stainless Steel Regular Port Flanged 150# Ball Valve
Velan Valve

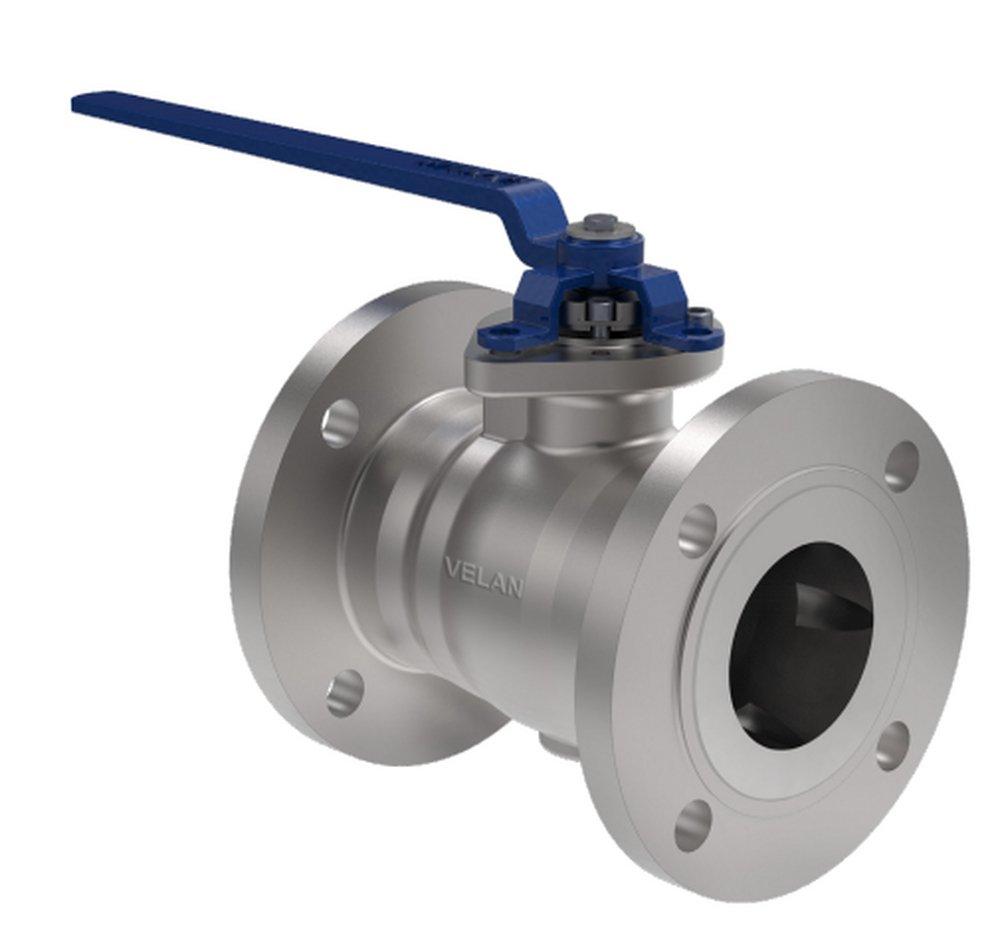

Memoryseal® 10 in. Stainless Steel Regular Port Flanged 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Velan Valve
Memoryseal®
10 in. Stainless Steel Regular Port Flanged 150# Ball Valve
V10F00313SSEAE2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Velan Memoryseal® split-body resilient-seated ball valves are available with a floating or trunnion ball, designed to handle an extensive range of applications
- Standard valves with MPTFE?seats and graphite packing can handle steam service up to 150 psig (10.3 bar)
- Valves with carbon graphite filled PTFE seats are suitable for steam up to 250 psig (17.2 bar)
- These rugged, versatile, and high-performance Memoryseal split-body resilient-seated ball valves can meet NACE specifications
- Memoryseal split-body ball valves are compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards
Documents
Specifications
- API:
- API 598, API 607, API 608, API 641
- ASME:
- ASME 598, ASME B16.10, ASME B16.34, ASME B16.5
- ASTM:
- ASTM A-240, ASTM A-276 Grade 304SS, ASTM A-276 Grade 316SS, ASTM A-313, ASTM A-351 CF8M, ASTM F-593
- Clean Bagged:
- No
- Collection:
- Memoryseal®
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Fire Suppression System Rated:
- No
- Handle Material:
- Carbon Steel
- IAPMO Listed:
- No
- ISO:
- ISO 10497, ISO 15156, ISO 15848-1, ISO 15848-2, ISO 17495, ISO 5211
- Length:
- 13 in
- MA Approved:
- No
- Material:
- Stainless Steel
- Material Type:
- CF8M
- NSF Certified:
- No
- Pressure - High:
- 285
- Pressure Class:
- 150#
- Temperature Range:
- -100 to 450 Deg F (-73 to 232 Deg C)
- UL Listed:
- No
- Valve Body Material:
- 316 Stainless Steel
- Valve Body Style:
- 1 piece
- Valve Bonnet Type:
- Union
- Valve Disc Material:
- 316 Stainless Steel
- Valve Operator:
- Locking Lever Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- MPTFE
- Valve Size:
- 10 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 344 lb
- Width:
- 16 in
- cUPC Certified:
- No
