3 in. Stainless Steel Regular Port Flanged 150# Ball Valve

Velan Valve

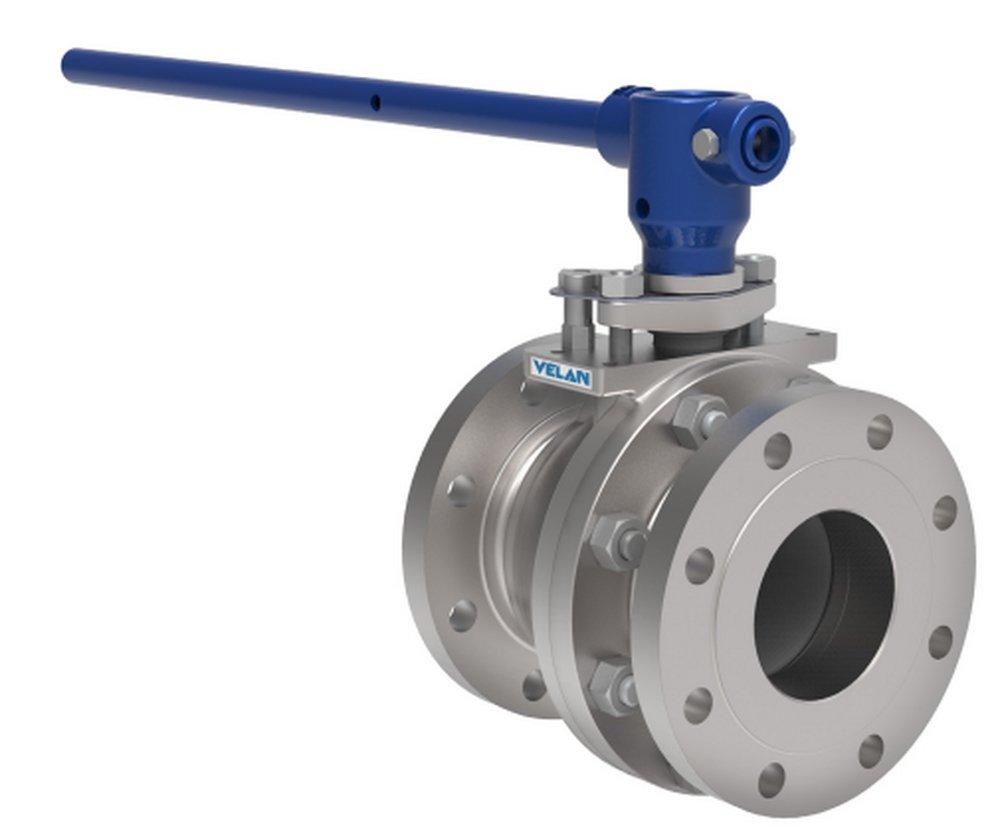

Memoryseal® 3 in. Stainless Steel Regular Port Flanged 150# Ball Valve

  • Fast #
  • Part #VF00413SSEAM
  • Item #3303345
  • Manufacturer Part #F10-00413-SSEA
3.8 out of 5 Customer Rating
Brand image
Velan Valve Stainless Steel Regular Port Flanged 150# Ball Valve
Velan Valve Stainless Steel Regular Port Flanged 150# Ball Valve
Velan Valve

Memoryseal® 3 in. Stainless Steel Regular Port Flanged 150# Ball Valve

  • Fast #
  • Part #VF00413SSEAM
  • Item #3303345
  • Manufacturer Part #F10-00413-SSEA
3.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 10 Pallet: 30
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Exclusive Memoryseal® seats compensate automatically for wear and fluctuations of pressure and temperature
  • Unique 3-way packing arrangements for superior stem sealing
  • Multiple solid cup and cone type PTFE stem seal and graphite packing
  • Fully enclosed PTFE body seal
  • Long cycle life
  • Low, uniform torques
  • Blowout-proof stem with stem guides prevent side thrust
  • Locking devices standard on lever operated valves
  • Valves are fire safe per API 607 / ISO 10497
  • Certified TA-Luft
  • Requires Certification

Documents

SPECIFICATION

Specifications

API:
API 598, API 608, API 641
ASME:
ASME B16.10, ASME B16.34, ASME B16.5, ASME Section VIII
ASTM:
ASTM A-106, ASTM A-193 Grade B8M, ASTM A-194 Grade 8M, ASTM A-216 WCB, ASTM A-240, ASTM A-276, ASTM A-313, ASTM A-351 CF8M, ASTM F-593
Clean Bagged:
No
Collection:
Memoryseal®
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Fire Suppression System Rated:
No
IAPMO Listed:
No
ISO:
ISO 15156, ISO 15848-1, ISO 15848-2, ISO 17495, ISO 5211
Length:
8 in
MA Approved:
No
Material:
Stainless Steel
Material Type:
CF8M
NSF Certified:
No
Pressure Class:
150#
Temperature Range:
-100 to 450 Deg F (-73 to 232 Deg C)
UL Listed:
Yes
Valve Body Style:
2 piece
Valve Bonnet Type:
Bolted
Valve Operator:
Locking Lever Handle
Valve Port Opening:
Standard Port
Valve Seat Material:
MPTFE
Valve Size:
3 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
36 lb
cUPC Certified:
No
