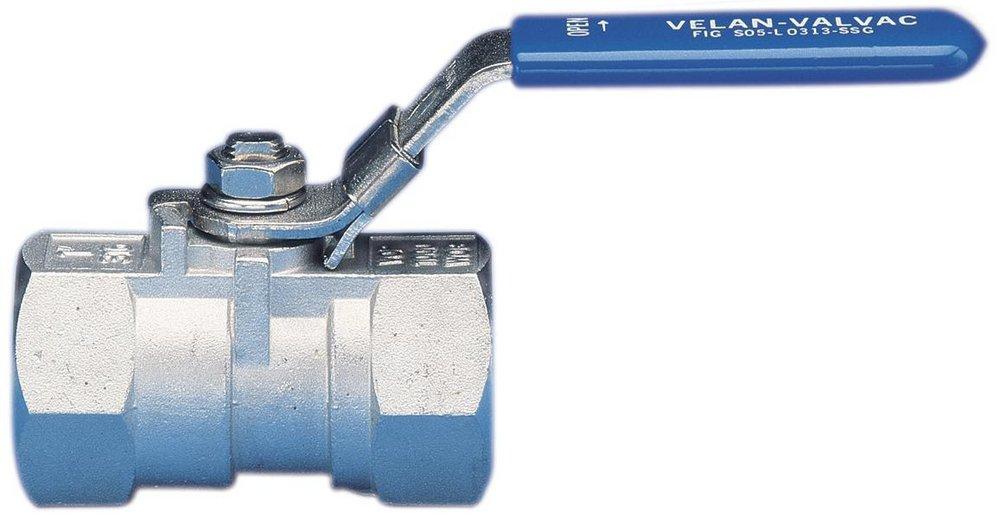

1 in. Stainless Steel Regular Port NPT 1000# Ball Valve
Velan Valve
VOP-1000 Series 1 in. Stainless Steel Regular Port NPT 1000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 40 Pallet: 80
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Velan Valve
VOP-1000 Series
1 in. Stainless Steel Regular Port NPT 1000# Ball Valve
S05L0313SSGA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Stainless steel body RPTFE seats
- Threaded, VOP-1000, Regular Port, One-Piece/Unibody, F316/CF8M Body, 316 Ball & Stem, Glass Reinforced PTFE Seat, Standard Service
- 1 I.P.S. screwdriver Bak-Chek™ angle stop
- Vandal resistant stop cap
- Adjustable tailpiece
- Vacuum breaker flush connection
- Spud coupling wall and spud flanges for 1 1/2" top spud
- High copper, low zinc brass castings for dezincification resistance
- Non-hold-open handle and no external volume adjustment to ensure water conservation
- Low consumption flush accuracy controlled by Para-Flo™ technology
Documents
Specifications
- ASTM:
- ASTM A351 Grade CF8M, ASTM A-351 Grade CF8M, ASTM A-276 Type 316, ASTM A-743, ASTM A-193 Grade B8, ASTM A-193 Grade B8M, ASTM A217
- Clean Bagged:
- No
- Collection:
- VOP-1000 Series
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- Handle Material:
- Stainless Steel
- Handle Type:
- Hand Wheel
- IAPMO Listed:
- No
- Length:
- 3-37/50 in
- Material:
- Stainless Steel
- Material Type:
- CF8M
- NSF Certified:
- No
- Pressure Class:
- 1000#
- Recommended Valve Application:
- Gas, Oil, Pipelines, Process Equipment, Foodservice, Pharmaceutical, Water Treatment
- Temperature Range:
- Up to 1000 Deg F (Up to 538 Deg C)
- UL Listed:
- No
- Valve Body Style:
- 1 piece
- Valve Operator:
- Hand Wheel
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Reinforced PTFE
- Valve Size:
- 1 in
- Valve Type:
- Ball Valve
