1/2 in. 200F 4.9K Horizontal Sidewall, Standard Response and Swivel Sprinkler Head in Chrome Plated
Victaulic

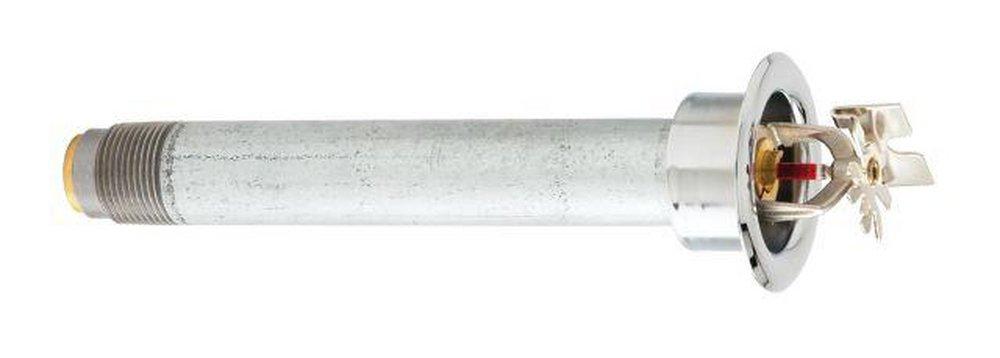

FireLock™ Model V2709 1/2 in. 200F 4.9K Horizontal Sidewall, Standard Response and Swivel Sprinkler Head in Chrome Plated
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 100
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Victaulic
FireLock™ Model V2709
1/2 in. 200F 4.9K Horizontal Sidewall, Standard Response and Swivel Sprinkler Head in Chrome Plated
S271CFS420
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Dry light hazard K5.6
- S.I.8.1 horizontal sidewall standard response 1?
- 25 mm NPT, approved temperature ratings: 135°, 155°, 200°, 286° (F) 57°, 68°, 93°, 141°(C) cULus, FM Brass, Chrome, White, Black, Custom, VC-250 175 psi
- 12 bar wrenches: V36
- S.I.11.5 horizontal sidewall standard response 3/4?
- 20 mm NPT, approved temperature ratings: 135°, 155°, 175°, 200°, 286°, 360° (F) 57°, 68°, 79°, 93°, 141°, 182° (C) cULus, GOST Brass, Chrome, White, Black, Custom, VC-250 175 psi
- 12 bar wrench: V34
Specifications
- Application:
- Commercial
- Coating:
- Painted
- Collection:
- FireLock™ Model V2709
- Color Finish Category:
- Chromes
- Color Finish Name:
- Chrome
- End Connection 1:
- MPT
- End Connections:
- MPT
- FM Approved:
- Yes
- Height:
- 3 in
- Installation Type:
- Wall Mount
- K-Factor:
- 4.9
- Material:
- Bronze, Brass, Ductile Iron, Nickel Alloy, Plastic, Stainless Steel
- Material Type:
- Beryllium, PTFE
- Opening Size:
- 1-1/4 in
- Pressure - Maximum:
- 500 psi
- Product Type:
- Horizontal Sidewall, Standard Response
- Size:
- 3 in x 1-1/4 in
- Thread Size:
- 1/2 in
- UL Listed:
- Yes
- UPC:
- 688304287985
- Weight:
- 0.21 lb
