2 in. Ductile Iron Grooved Spring Check Valve
Victaulic

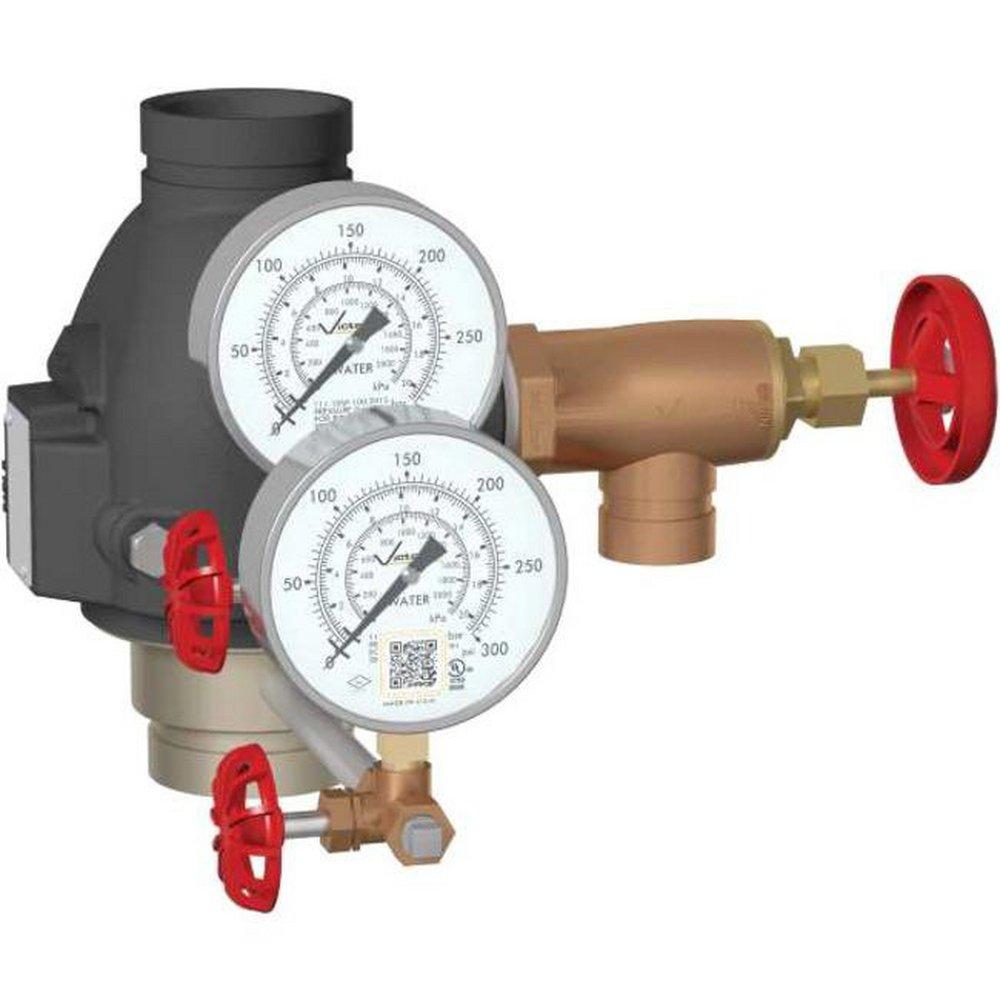

FireLock® Series 717HR 2 in. Ductile Iron Grooved Spring Check Valve
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Victaulic
FireLock® Series 717HR
2 in. Ductile Iron Grooved Spring Check Valve
V020717PHR
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Features an elastomer encapsulated disc with an electroless nickel plated seat
- Sizes from 2-1/2 in - 12 in / 65 – 300 mm
- Pressures up to 365 psi / 2517 kPa / 25 bar
- Includes upstream and downstream pressure taps, must specify riser check kit when ordered
Specifications
- ASTM:
- ASTM A-536 Grade 65-45-12
- Coating:
- Black
- Collection:
- FireLock® Series 717HR
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- FM Approved:
- Yes
- IAPMO Listed:
- No
- Installation Type:
- Horizontal Mount, Vertical Mount
- Length:
- 8-33/50 in
- Material:
- Ductile Iron, Brass, Carbon Steel, Rubber, Stainless Steel
- Material Type:
- 302, 304, 416, Nitrile
- NSF Certified:
- No
- Pressure - High:
- 365
- Proposition 65:
- WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Recommended Valve Application:
- Air, Oil, Petroleum
- UL Listed:
- Yes
- UPC:
- 688304655876
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- Spring
- Valve Disc Material:
- Stainless Steel
- Valve Seat Material:
- Electroless Nickel Plated
- Valve Size:
- 2 in
- Valve Type:
- Spring Check Valve
- Weight:
- 15 lb
