5 x 5 in. Grooved Painted Coupling with High Pressure E Gasket
This product has been replaced by
Victaulic 5 in. Orange Enamel and Painted Grooved Coupling
Manufacturer Part #L050107PEN
Manufacturer Part #L050107PEN
Victaulic

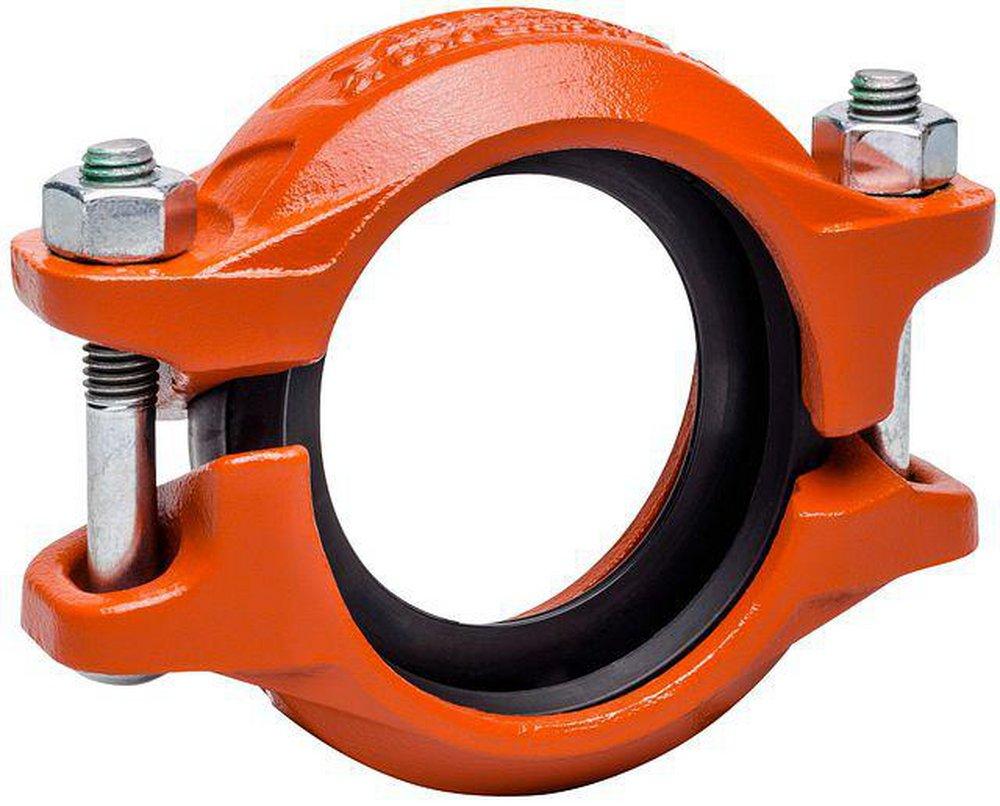

FireLock™ Style 107 5 x 5 in. Grooved Painted Coupling with High Pressure E Gasket
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
All Sizes
Purchase history
Victaulic
FireLock™ Style 107
5 x 5 in. Grooved Painted Coupling with High Pressure E Gasket
L050107PE0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Model: 107
- The patented Style 107 rigid coupling joins 2 – 8"/50 – 200 mm standard roll grooved and cut grooved steel pipe
- The joint is assembled without disassembling the bolts, nuts, gasket and housings
- The Style 107 coupling requires lubrication only be applied to the sealing lips of the gasket before sliding the coupling on pipe grooved to Victaulic specifications
- Refer to Victaulic Field Installation Handbook I-100 for required steps
- The Style 107 provides rigidity with its angle bolt pad design and accommodates up to 580 psi/4000 kPa depending on pipe wall thickness
-
Lead Law Compliant
Documents
Specifications
- ASTM:
- ASTM A-183, ASTM A-536
- Coating:
- Enamel
- Collection:
- FireLock™ Style 107
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- Fitting Size 1:
- 5 in
- Fitting Size 2:
- 5 in
- Fitting Sizes:
- 5 in x 5 in
- Lead Law Compliance Level:
- Lead Free Not Certified, Approved for Non-Potable Water Applications
- Lead Law Compliant:
- Yes
- Material:
- Ductile Iron
- Maximum Temperature:
- 250
- Pressure - Maximum:
- 580 psi
- UPC:
- 688304430541
