4 in. Flanged Ductile Iron Adapter
Victaulic

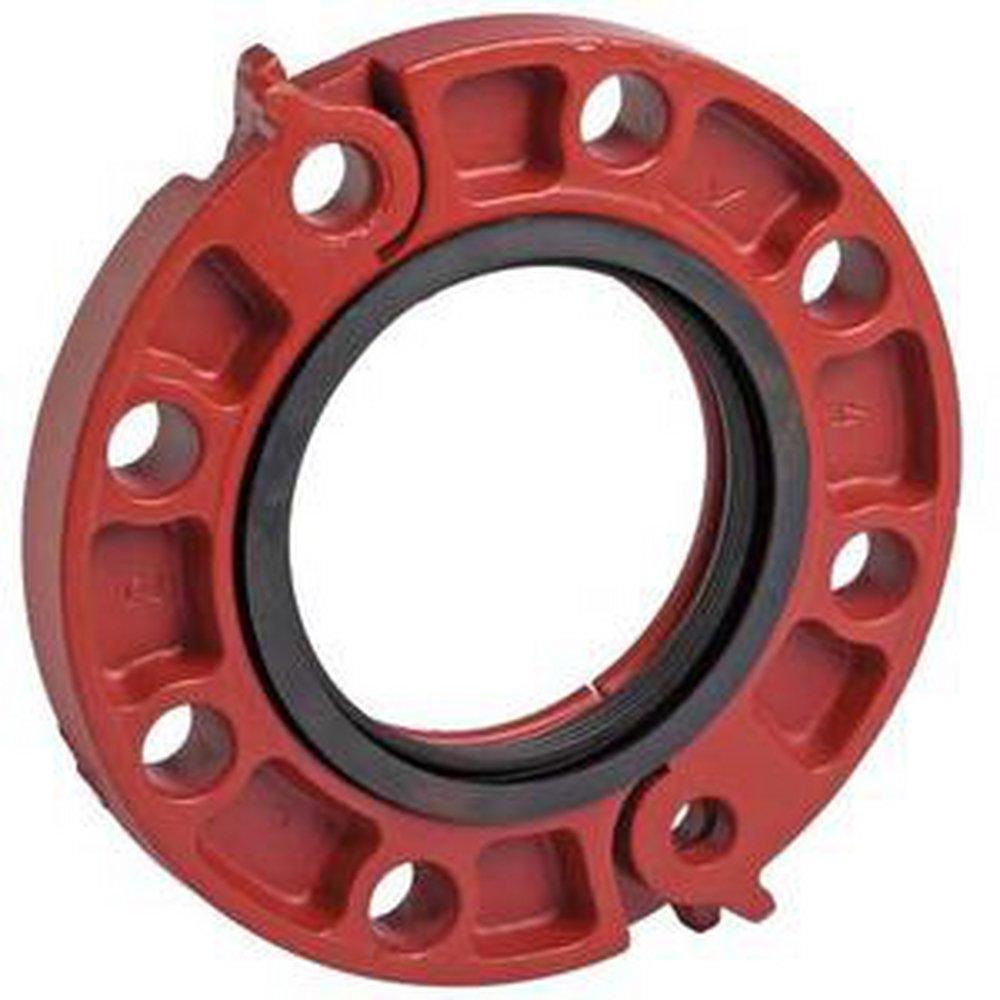

FireLock™ Style 341 4 in. Flanged Ductile Iron Adapter
Package Quantity Info:
Each: 1
Log in or Create Account
Log in or Create an Account to see product availability.
All Sizes
Purchase history
Victaulic
FireLock™ Style 341
4 in. Flanged Ductile Iron Adapter
C040341PS0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Designed for direct connection of flanged components into a grooved cast or ductile system
- Designed for Class 53 or higher pipe
- Sizes from 3 – 24" / DN80 –DN600
- Pressures up to 250 psi / 1724 kPa / 17 bar
- Optional coatings include coal tar epoxy, organic zinc primer and bituminous
- Regional availability, contact Victaulic for details
Documents
Specifications
- ANSI:
- ANSI 61, ANSI B16.1
- ASTM:
- ASTM A-395, ASTM A-536
- Coating:
- Alkyd-Phenolic Primer
- Collection:
- FireLock™ Style 341
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- Yes
- Fitting Size 1:
- 4
- Fitting Size 2:
- 4
- Fitting Sizes:
- 4 in
- Fitting Type:
- Straight
- Material:
- Ductile Iron
- NSF:
- NSF 61
- NSF Certified:
- Yes
- Pressure - Maximum:
- 250 psi
- Proposition 65:
- WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- UL Listed:
- Yes
- UPC:
- 688304022265
