3 x 3/4 in. Thread Dielectric Nipple
This product has been replaced by
Victaulic 3/4 x 3 in. Dielectric Transition Fitting
Manufacturer Part #F006647CTT
Manufacturer Part #F006647CTT
Victaulic

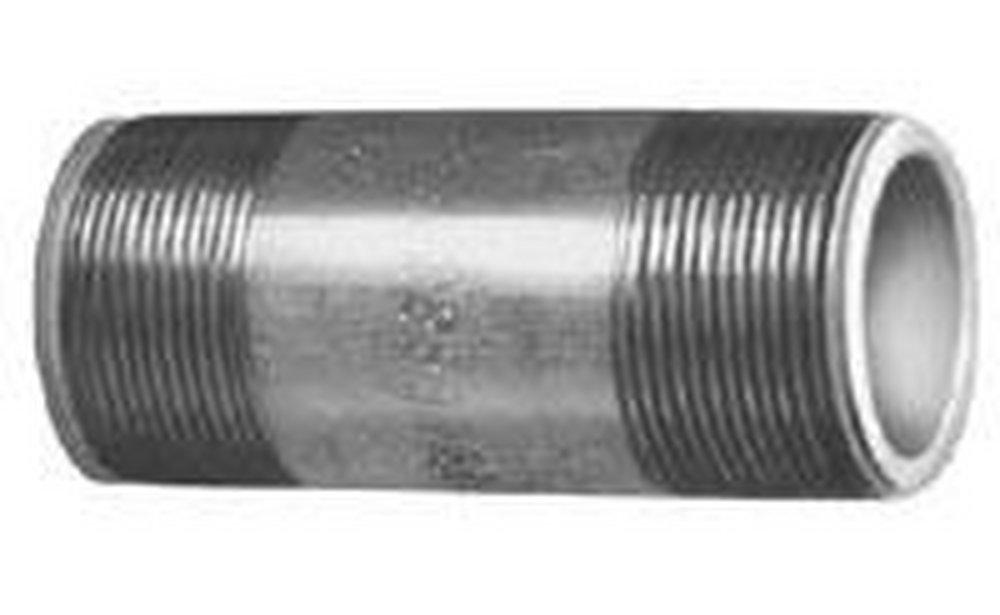

FireLock™ Style 47 3 x 3/4 in. Thread Dielectric Nipple
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Victaulic
FireLock™ Style 47
3 x 3/4 in. Thread Dielectric Nipple
FA62047Z0T
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Model: 47
- Clearflow Dielectric Waterway fittings create a dielectric waterway by insulating the inside of the metal casing, thus inhibiting the internal formation of galvanic local cell corrosion between the dissimilar metals in the presence of water
- By essentially eliminating galvanic local cell and stray current problems, Clearflow Dielectric Waterway fittings continuously provide the most effective corrosion protection possible in any waterway system connection
- Clearflow fittings use materials which meet the requirements of ASTM F-1545-97
- Clearflow fittings are designed for continuous use at temperatures up to 230F (110C) and pressures up to 300 psi/2065 kPa
- Clearflow Dielectric Waterways provide a transition from steel (IPS) pipe to copper (CTS) pipe with varied end preparations
Documents
Specifications
- ASTM:
- ASTM A-53
- Collection:
- FireLock™ Style 47
- End Connection 1:
- Threaded
- End Connection 2:
- Threaded
- End Connections:
- Threaded
- Fitting Size 1:
- 3/4 in
- Fitting Size 2:
- 3/4 in
- Fitting Sizes:
- 3/4 in x 3/4 in
- Fitting Type:
- Nipple
- Length:
- 3 in
- Material:
- Stainless Steel
- Maximum Temperature:
- 230
- Pressure - Maximum:
- 300 psi
- Pressure Class:
- 300#
- UPC:
- 688304030536
