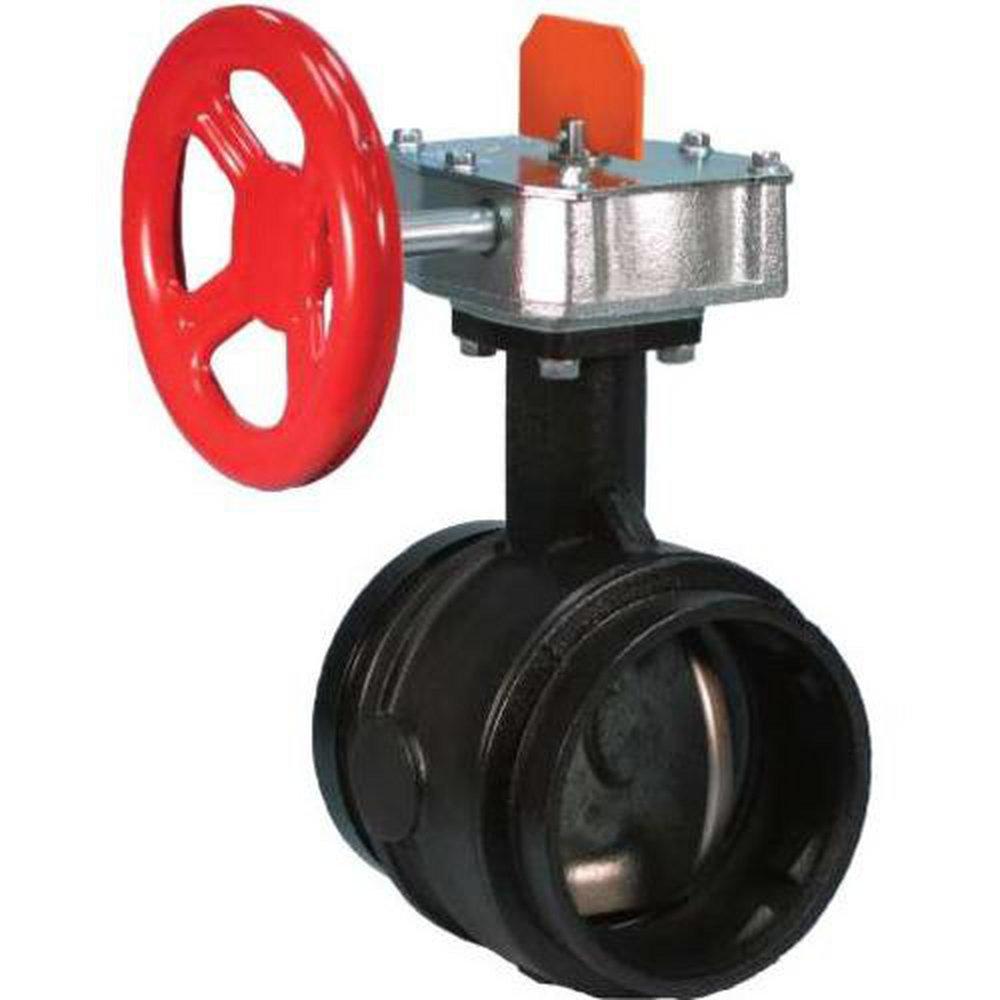

3 in. Ductile Iron Grooved EPDM Hand Wheel Butterfly Valve
Victaulic
FireLock™ Style 705 3 in. Ductile Iron Grooved EPDM Hand Wheel Butterfly Valve
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Victaulic
FireLock™ Style 705
3 in. Ductile Iron Grooved EPDM Hand Wheel Butterfly Valve
V030705200
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Compatible with ANSI 125# & 150# flanges
- ISO 5211 top plate allows choice of Apollo®
- Pneumatic actuators and manual operators
- “Double-D” stem design
- Conforms to MSS SP-67 & API 609
- Extended neck for up to 2” of insulation
- Suitable for bi-directional dead-end service to full rated pressure
Specifications
- ASTM:
- ASTM A536 Grade 65-45-12, ASTM A582, ASTM B733, ASTM C36000
- Clean Bagged:
- No
- Coating:
- Black Alkyd Enamel
- Collection:
- FireLock™ Style 705
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- FM Approved:
- Yes
- IAPMO Listed:
- No
- Length:
- 3-77/100 in
- Material:
- Ductile Iron, Carbon Steel, Stainless Steel
- Material Type:
- 416
- NSF Certified:
- No
- Origin:
- Domestic
- Pressure - High:
- 300
- Pressure Class:
- 300#
- Proposition 65:
- WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Recommended Valve Application:
- Fire Protection
- UL Listed:
- Yes
- UPC:
- 883481004466
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- Grooved
- Valve Disc Material:
- Ductile Iron
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- EPDM
- Valve Size:
- 3 in
- Valve Type:
- Butterfly Valve
