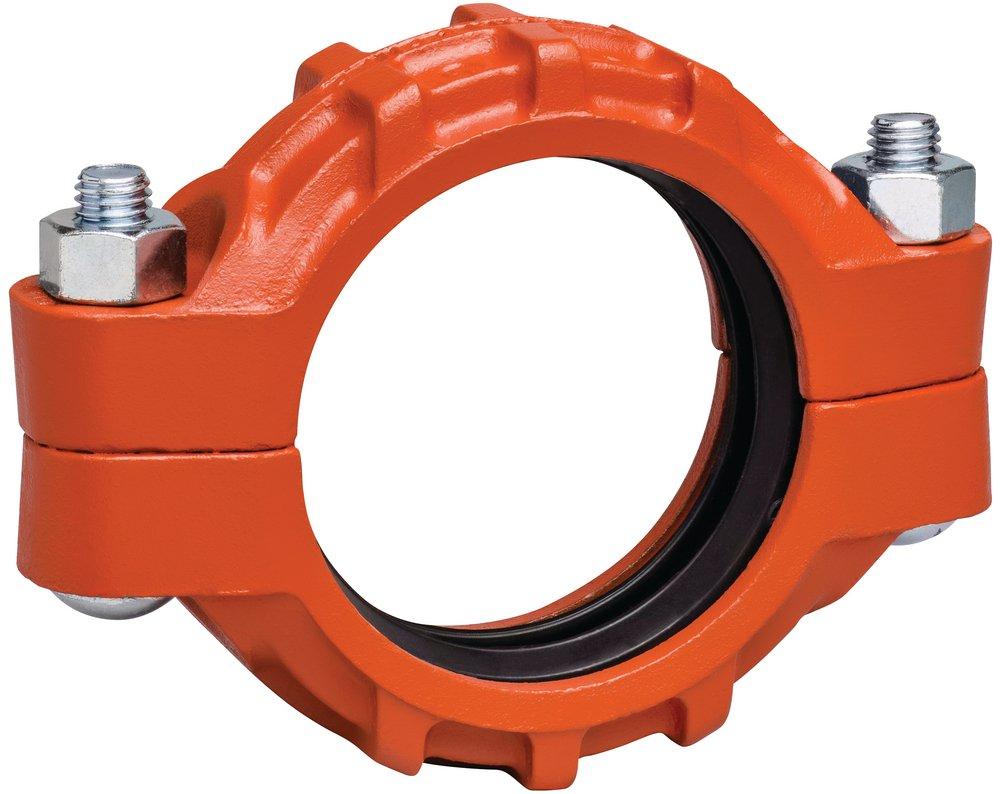

16 in. Orange Enamel Grooved 2-Piece Coupling
Victaulic
FireLock™ Style 77 16 in. Orange Enamel Grooved 2-Piece Coupling
Package Quantity Info:
Each: 1 Inner Pack: 1All Sizes
Purchase history
Victaulic
FireLock™ Style 77
16 in. Orange Enamel Grooved 2-Piece Coupling
L160M77PE0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Provides a flexible pipe joint which allows for expansion, contraction and deflection
- Gasket: Grade "E" EPDM
- Cross-ribbed construction to provide a strong component for pressure piping systems
- Offered in a two piece housing design
- All sizes are provided with plated bolts and nuts
- Galvanized and stainless steel housings are also available
- Effective stress relief and vibration
Specifications
- ANSI:
- ANSI 61, ANSI 372
- ASTM:
- ASTM A-536
- Coating:
- Orange Enamel
- Collection:
- FireLock™ Style 77
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- FM Approved:
- Yes
- Fitting Size 1:
- 16 in
- Fitting Size 2:
- 16 in
- Fitting Sizes:
- 16 in
- Fitting Type:
- Coupling
- Length:
- 22-1/4 in
- Material:
- Ductile Iron
- Maximum Temperature:
- 230
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Pressure - Maximum:
- 300 psi
- Proposition 65:
- WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- UL Listed:
- Yes
- UPC:
- 883481064804
- Weight:
- 45 lb
