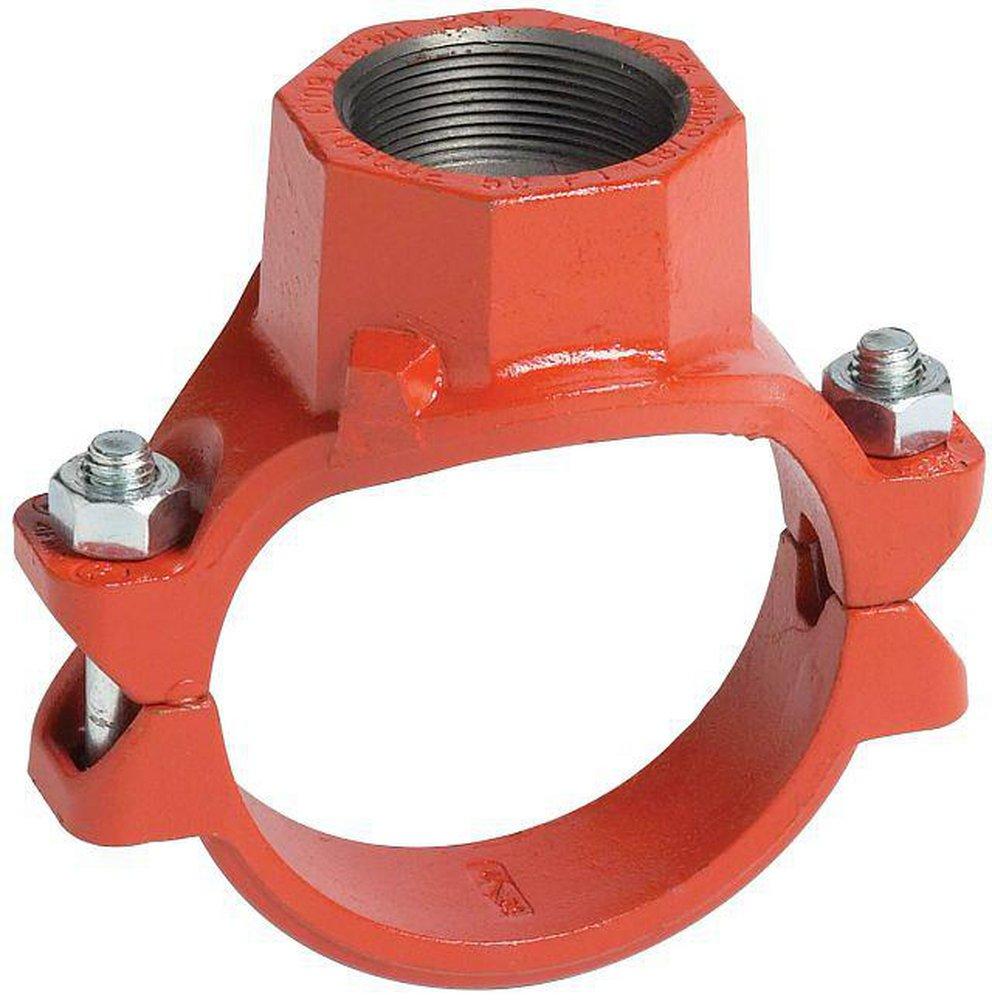

6 x 3 in. FIPS Painted Ductile Iron Mechanical Tee
Victaulic
FireLock™ Style 920 6 x 3 in. FIPS Painted Ductile Iron Mechanical Tee
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 150Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
Victaulic
FireLock™ Style 920
6 x 3 in. FIPS Painted Ductile Iron Mechanical Tee
CE71920PE0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Provides a direct branch connection at any location where a hole can be cut in the pipe
- Available as a tee or cross outlet with female threaded or grooved ends
- Sizes from 2 – 8" / DN50 –DN200
- Pressures up to 500 psi / 3447 kPa / 34 bar
- Style 920 and Style 920N Mechanical-T outlets are available with grooved or female threaded outlet
Dimensions & Measurements
End Connection 1
FIPS
End Connection 2
FIPS
End Connection 3
FIPS
End Connections
FIPS x FIPS x FIPS
Fitting Size 1
6 in
Fitting Size 2
6 in
Fitting Size 3
3 in
Fitting Sizes
6 in x 6 in x 3 in
Length
5-3/10 in
Width
10-1/2 in
Characteristics & Features
Coating
Painted
Collection
FireLock™ Style 920
Color Finish Name
Orange
Fitting Type
Tee
Material
Ductile Iron
Proposition 65
WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Electrical & Operational Information
Maximum Temperature
230
Temperature Range
-30 to 230 Deg F
Warranty & Product Information
ANSI
ANSI 61
Application
Polybutylene Pipe, Polyethylene Pipe, Schedule 10 Carbon Steel Pipe, Schedule 40 Carbon Steel Pipe
ASTM
ASTM A-183, ASTM A-449, ASTM A-536 Grade 65-45-12
FM Approved
Yes
IAPMO Listed
No
NSF
NSF 61
NSF Certified
Yes
UL Listed
Yes
UPC
688304013317
