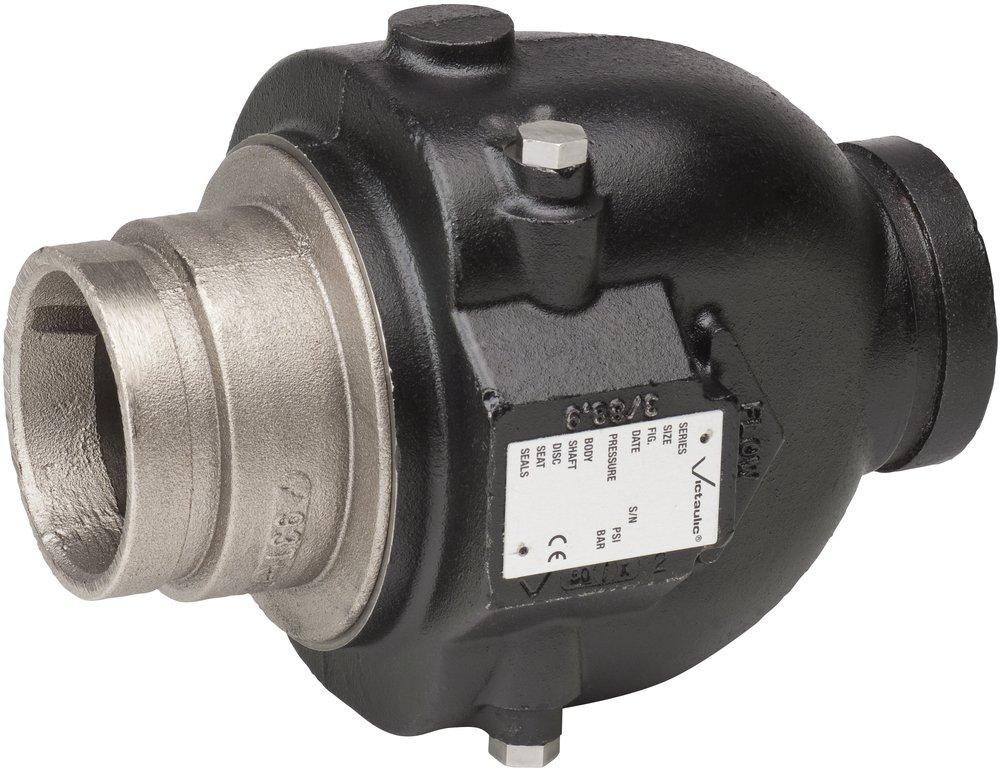

2-1/2 in. Ductile Iron Grooved Check Valve
Victaulic
Series 716H 2-1/2 in. Ductile Iron Grooved Check Valve
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 618Purchase history
Victaulic
Series 716H
2-1/2 in. Ductile Iron Grooved Check Valve
V024716PE3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Features an elastomer encapsulated disc and a welded in nickel seat
- Sizes from 4 – 12" / DN100 –DN300
- Pressures up to 300 psi / 2068 kPa / 21 bar
- For AGS sizes 14 – 24" , download publication 20.08 for information on Series W715
- Series 716H/716 check valves are engineered for long life and seize-free sealing
- For the series 716H, in 2-3"/50-80 mm sizes, the stainless steel disc seats against the O-ring seal which is mounted on the electroless nickel plated end face
Specifications
- ASTM:
- ASTM A-536 Grade 65-45-12, ASTM B-733
- Coating:
- Painted
- Collection:
- Series 716H
- Color Finish Name:
- Black
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- FM Approved:
- No
- IAPMO Listed:
- No
- Installation Type:
- Horizontal Mount, Vertical Mount
- Length:
- 9-19/50 in
- Material:
- Ductile Iron
- NSF Certified:
- No
- Pressure - High:
- 365
- Pressure Class:
- 365#
- Proposition 65:
- WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- UL Listed:
- No
- UPC:
- 688304656439
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- Grooved
- Valve Disc Material:
- Stainless Steel
- Valve Seat Material:
- EPDM, Electroless Nickel Plated
- Valve Size:
- 2-1/2 in
- Valve Type:
- Check Valve
- Weight:
- 13.8 lb
- Width:
- 7 in
