4 in. Ductile Iron Standard Port Grooved 800# Ball Valve
Victaulic

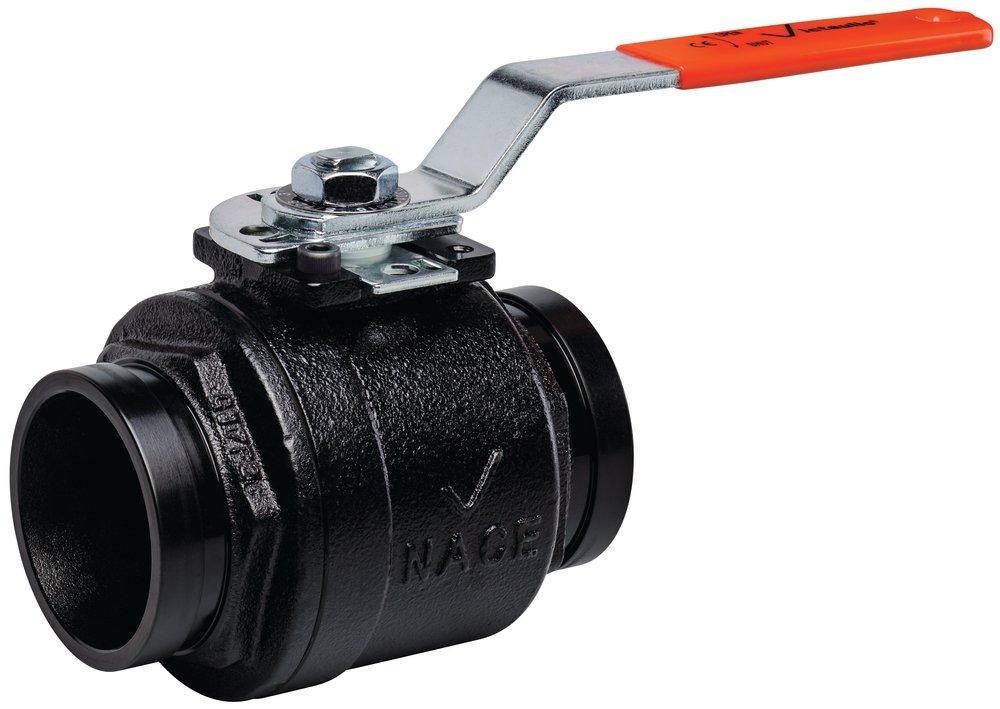

Series 726 4 in. Ductile Iron Standard Port Grooved 800# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 39
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Victaulic
Series 726
4 in. Ductile Iron Standard Port Grooved 800# Ball Valve
V040726P0A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Two-piece, end-entry valve featuring a floating ball design
- Intended for use in full open or shut-off service, throttling is not recommended with standard ball valves
- High pressure standard port ball valve with grooved ends
- Available without handle, with a lever operator or a gear operator
- Sizes from 1-1/2 - 6" / DN40 - DN150
- Pressures up to 1000 psi / 6895 kPa / 69 bar
Specifications
- ASME:
- ASME A17.1 2007
- ASTM:
- ASTM A-395
- CSA Certified:
- CSA B44-07
- Collection:
- Series 726
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- Handle Material:
- Carbon Steel
- Length:
- 8-3/10 in
- Material:
- Ductile Iron, Carbon Steel, Plastic
- Material Type:
- PTFE
- Maximum Temperature:
- 250
- Minimum Temperature:
- 20
- Pressure - High:
- 1000
- Pressure - Maximum:
- 800 psi
- Pressure Class:
- 800#
- Proposition 65:
- WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Recommended Valve Application:
- Potable Water
- Temperature Range:
- 20 to 250 Deg F (-7 to 121 Deg C)
- UPC:
- 688304522789
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- 2 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 4 in
- Valve Type:
- Ball Valve
- Weight:
- 41.50 lb
