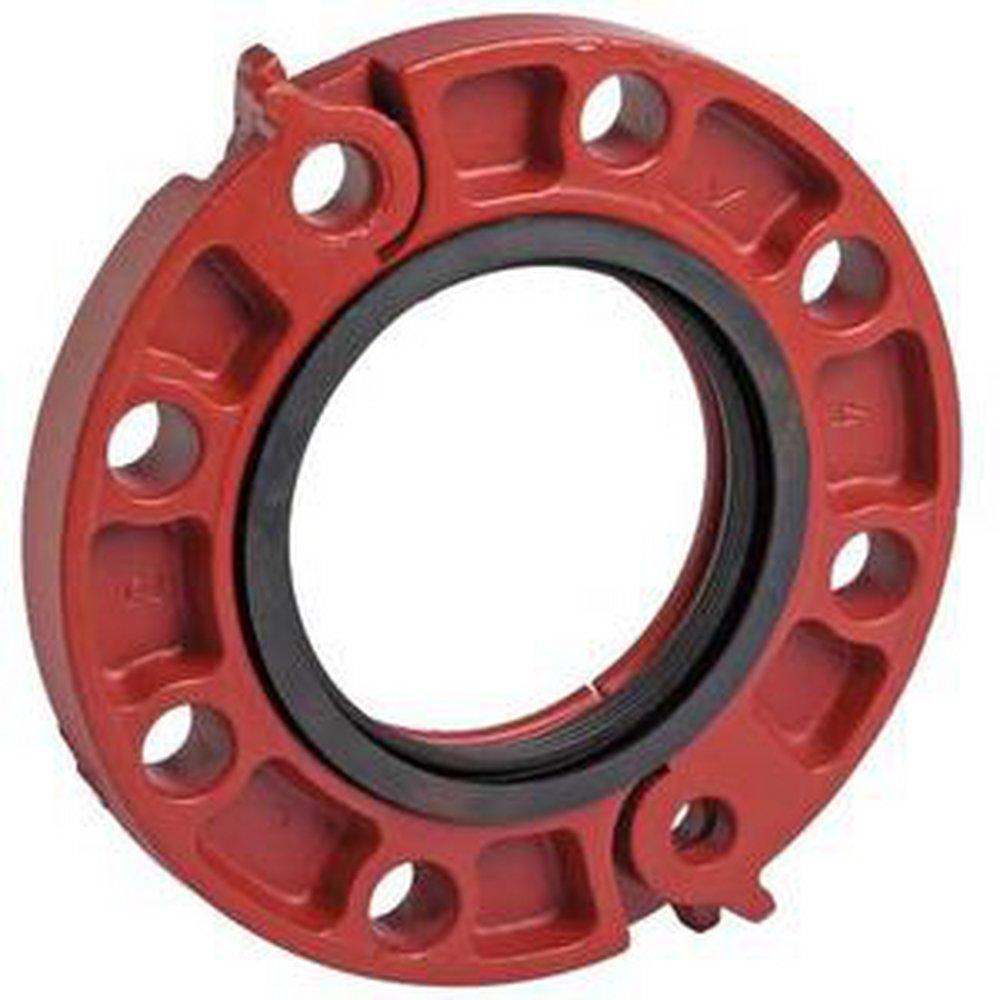

4 x 47/50 in. Flanged 250 psi Alkyd-Phenolic Primer Ductile Iron Coupling with Rubber Gasket
Victaulic
Style 341 Vic-Flange® 4 x 47/50 in. Flanged 250 psi Alkyd-Phenolic Primer Ductile Iron Coupling with Rubber Gasket
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
All Sizes
Purchase history
Victaulic
Style 341 Vic-Flange®
4 x 47/50 in. Flanged 250 psi Alkyd-Phenolic Primer Ductile Iron Coupling with Rubber Gasket
C040341PM0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Designed for direct connection of flanged components into a grooved cast or ductile system
- Designed for Class 53 or higher pipe
- Sizes from 3 – 24" / DN80 –DN600
- Pressures up to 250 psi / 1724 kPa / 17 bar
- Optional coatings include coal tar epoxy, organic zinc primer and bituminous
- Regional availability, contact Victaulic for details
Documents
Specifications
- ANSI:
- ANSI 61, ANSI A21.10, ANSI B16.1 Class 125, ANSI C606
- ASTM:
- ASTM A-395 Grade 65-45-12, ASTM A-536 65-45-12
- Coating:
- Alkyd-Phenolic Primer
- Collection:
- Style 341 Vic-Flange®
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- Yes
- Fitting Size 1:
- 4 in
- Fitting Size 2:
- 4 in
- Fitting Sizes:
- 4 in
- Fitting Type:
- Coupling
- Length:
- 47/50 in
- Material:
- Ductile Iron, Rubber
- Material Type:
- Halogenated Butyl
- Maximum Temperature:
- 200
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Pressure - Maximum:
- 250 psi
- Proposition 65:
- WARNING: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- UL Listed:
- Yes
- UPC:
- 688304022258
- Weight:
- 8.2 lb
