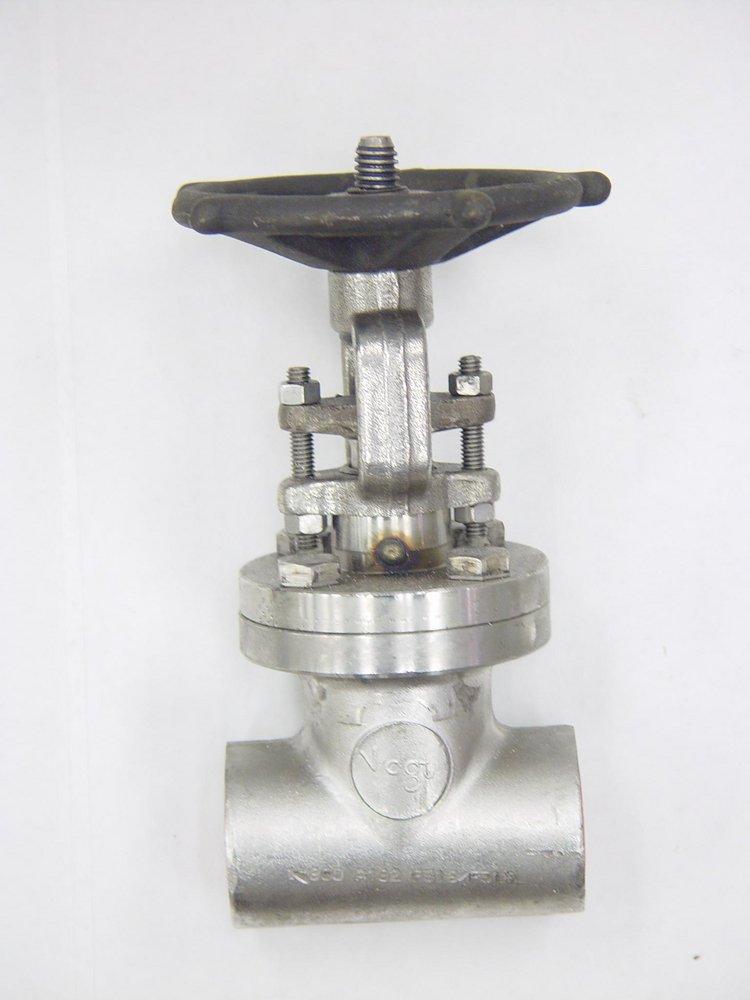

3/4 in. Stainless Steel Conventional Port Socket Weld Gate Valve
Vogt Valves
12401 3/4 in. Stainless Steel Conventional Port Socket Weld Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Vogt Valves
12401
3/4 in. Stainless Steel Conventional Port Socket Weld Gate Valve
AAB84VV001014
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Round bolted bonnet
- Spiral wound gasket
- Bolted gland
- Solid wedge
- API 602
- ASME B16.34
- Hard faced seats
- Outside screw & yoke
Specifications
- API:
- API 602
- ASME:
- ASME B16.34
- ASTM:
- ASTM F-316, ASTM F-316L
- Collection:
- 12401
- End Connection 1:
- Socket Weld
- End Connection 2:
- Socket Weld
- End Connections:
- Socket Weld
- FM Approved:
- No
- Handle Length (in):
- 4 in
- Length:
- 3-19/50 in
- Material:
- Stainless Steel
- Material Type:
- 316L
- Maximum Temperature:
- 100
- NSF Certified:
- No
- Pressure Class:
- 800#, 1920#
- Recommended Valve Application:
- Water
- UL Listed:
- No
- UPC:
- 698554024223
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Socket Weld
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Stainless Steel
- Valve Size:
- 3/4 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
- Weight:
- 4.8 lb
